Chapter 4 Operation
4.1. Part List
The package contains the following items:
1. SLS201L/SLS202L Light Source
2. DS12 12 V Power Supply
3. Power Cord
4. 1.3 mm (0.050") Hex Key
5. 1.5 mm Hex Key
6. 2 mm (5/64") Hex Key
7. 400µm core, 0.39NA Fiber Patch Cable (SLS201L only)
8. 30 mm Hex Wrench
4.2. Setting Up on a Working Surface
The light source has four non-adjustable plastic feet at the bottom so that it can be
placed directly onto a flat working surfaces, as shown in Figure 7 (a). It also has
two 1/4"-20 (M6) threaded mounting hole on the bottom, which are compatible with
Thorlabs standard optical posts and post holders, enabling it to be mounted on a
breadboard or optical as shown in Figure 7 (b).
(a) (b)

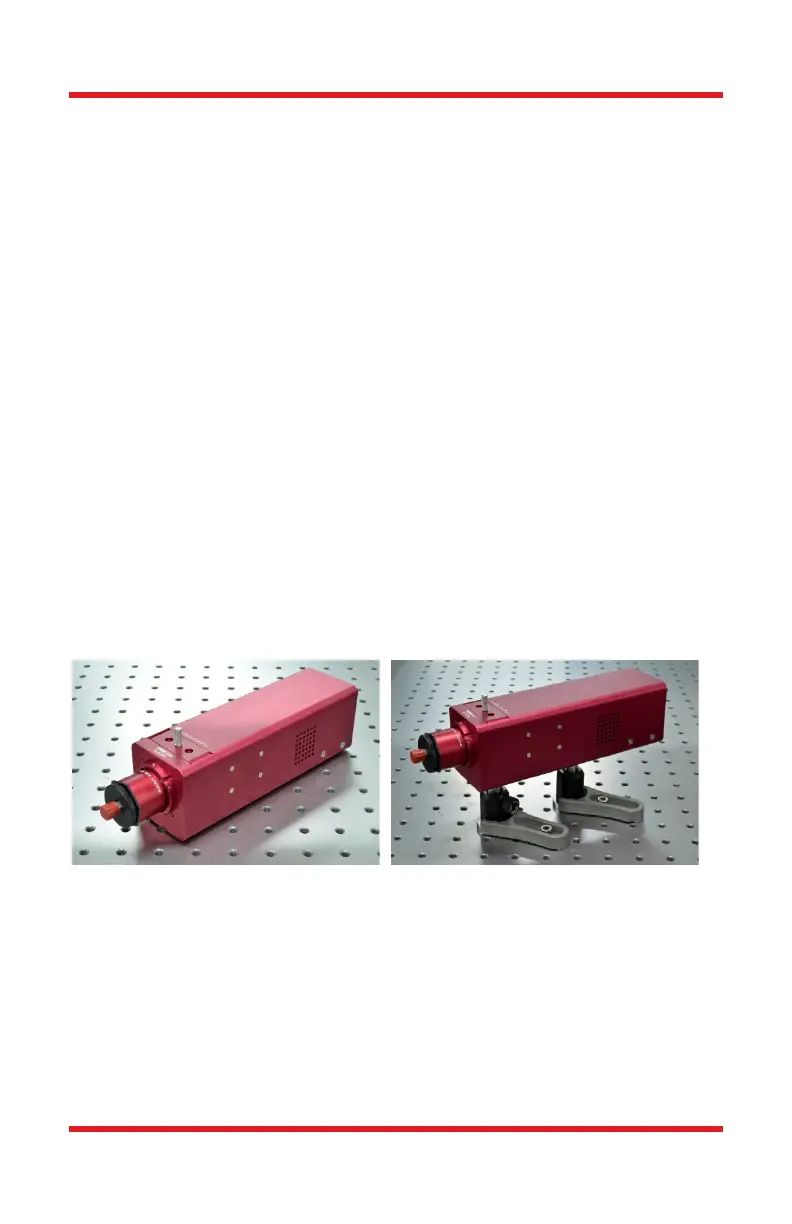

Figure 7 SLS201L Set Up on a Working Surface
