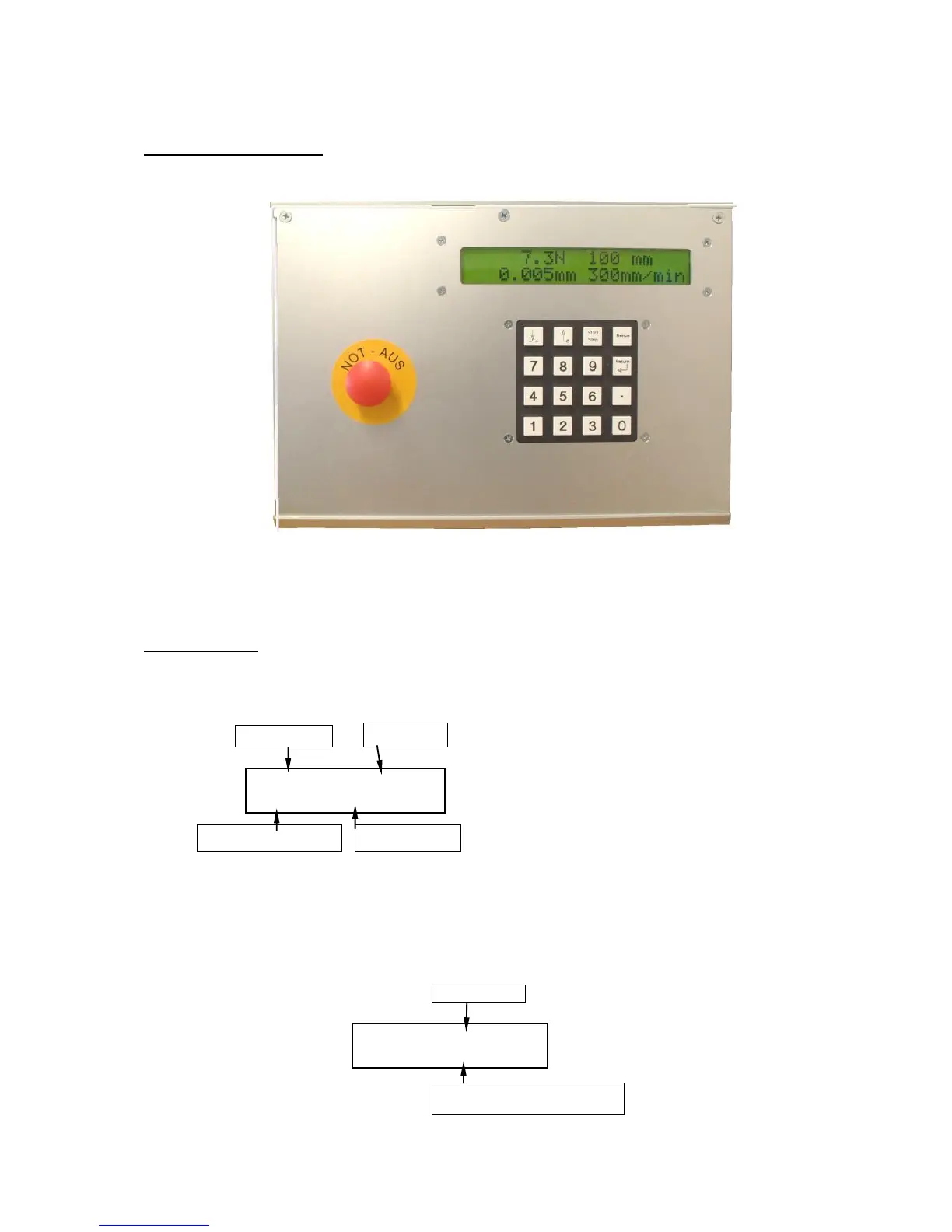

4) DISPLAY UNIT
Control Display Panel. This unit contains the LCD Display, the Numeric Keypad and
the Emergency Stop push-button.
LCD DISPLAY
When you switch on the machine, you get a message about the Firmware. You will
see the following:
When the test is finished (i.e. when the extension is reached, or the maximum force
is exceeded, or the break of the specimen is detected), you see the maximum force
of the last test.
1435.23 N 50 mm/min
327.12 mm 100 mm
actual force
crosshead displacement
test speed
test extension
F max = 1435.23 N
X max = 345.33 mm
Maximum force
Position where the maximum force
was reached
