3
2
a. Use a Phillips screwdriver to remove two 3x10mm and two 3x14mm Philip screws on the bottom of
chassis, and then take out the radio tray from the car.
b. Install the servos with tap screws. Notice the orientation of the steering, throttle and FWD/REV servo
output shafts.
c. Install the servo saver onto steering servo output shaft.
d. Take out the large body clip on the receiver box and battery box to open the box top.
e. Install the receiver switch onto the side of the battery box with its original screws.
f. Properly plug the connectors/wires into the receiver, steering servo connector/wire into channel 1 slot,
throttle servo connector/wire into channel 2 slot, FWD/REV servo connector/wire into channel 3 slot
and battery switch connector/wire into battery slot.
g. Place the receiver and the wires inside the receiver box, thread the receiver antenna/wire through the
box top hole, and reinstall the box top with large body clip
h. Thread the receiver antenna/wire through the antenna tube, and then install the antenna tube onto
the box top hole.
i. Install 4 AA size alkaline batteries into battery holder and connect the battery holder wire/connector to
the receiver switch wire/connector.
j. Install the battery holder into the enclosed battery box with large body clip.
k. Reassemble the radio tray on the chassis with its original screws.

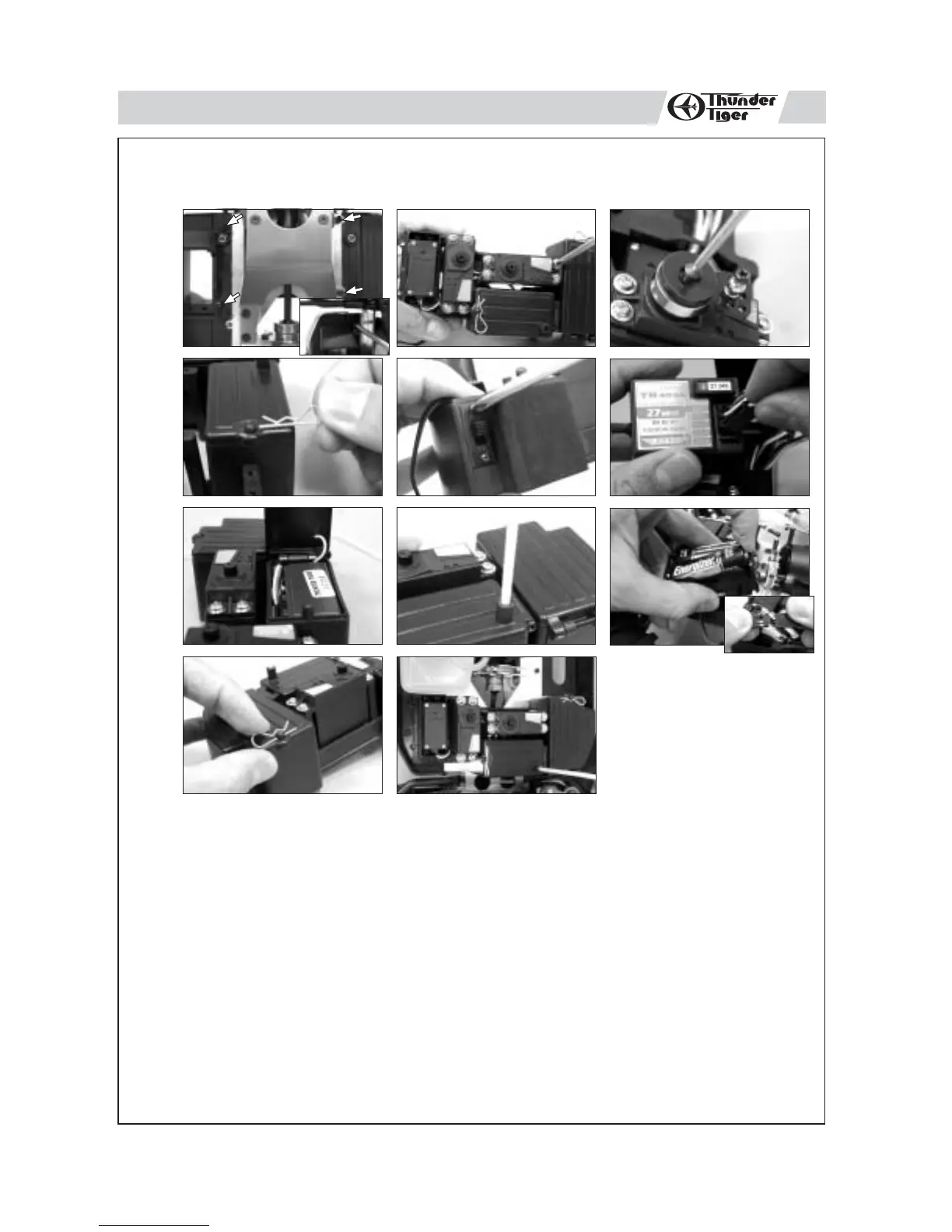

INSTALLING THE RADIO GEAR
Skip if already assembled in RTR version
c
b
b
a
f
e
e
d
i
h
g
jK
