12
a. To set the throttle/brake linkage, first the radio should be on and neutral; thus, the servo is at neutral
position.
b. With the servo at neutral, turn and adjust plastic brake adjustment nut at the end of the linkage until
there is a 1/16"(1.5mm) gap between the spring and the brake lever when the spring is not compressed.
( The brake lever should almost engages the brake system, but not yet.)
c. With the servo at neutral, using a 1.5mm Allen wrench driver to loosen the throttle collars. Then,
manually close the carburetor, and set the forward collar (next to the spring) with the spring slightly
compressed. Then, set the other collar (rearward) next to the linkage pivot.
13
a. Loosen the setscrews of the collars on the wire linkages using a 1.5mm Allen driver.
b. Turn on the radio and the truck, but do not start the engine.
c. The servo will move automatically to the position for forward driving.
d. Move the rearward collar toward the linkage pivot collar on the servo horn until the spring is fully
compressed. Uncompress the spring about 3/16"(4.5mm) by sliding the collar back and then tighten
the setscrew.
e. Press the FWD/REV button on the radio.
f. Repeat step13d with the forward collar.

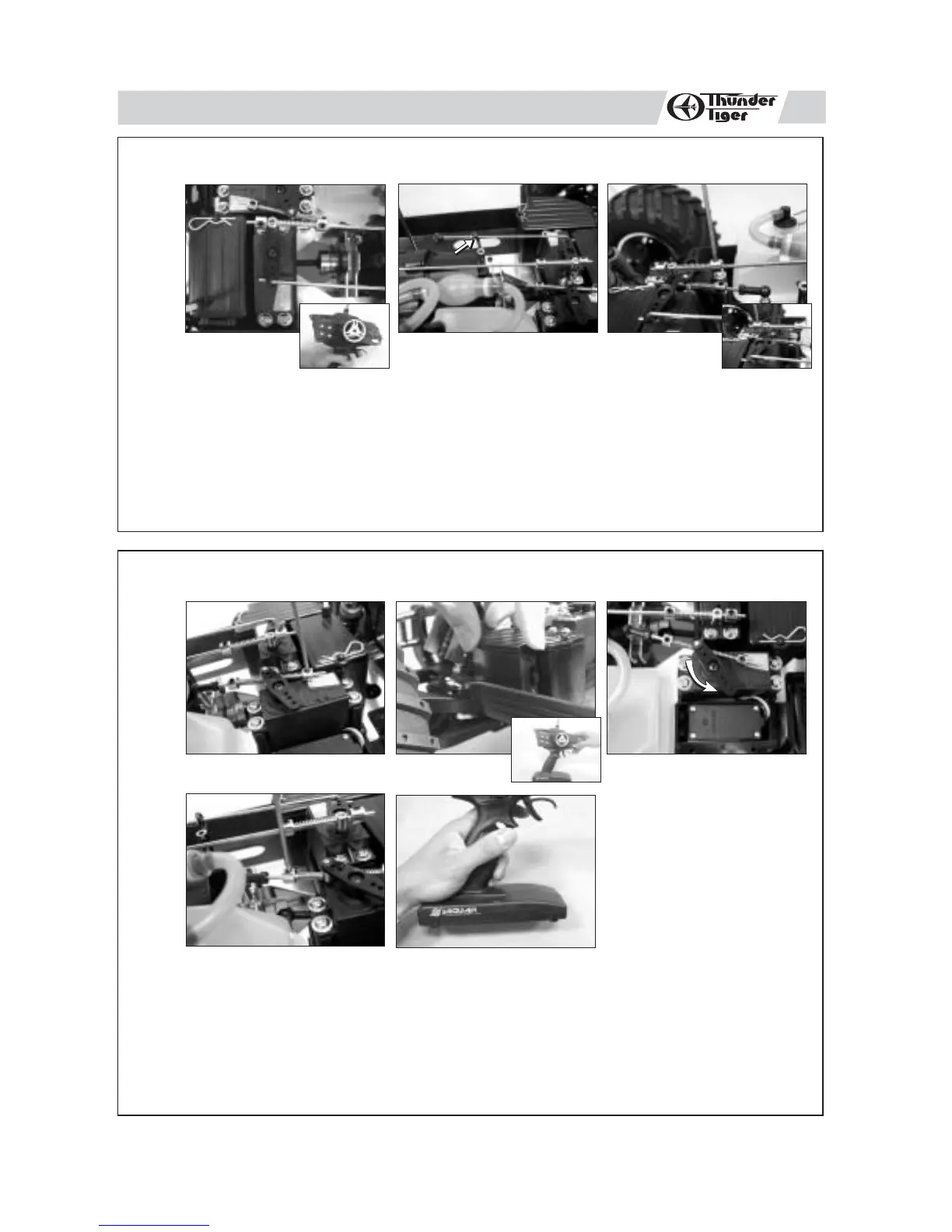

ADJUSTING THROTTLE / BRAKE LINKAGE
a
b
c
ADJUSTING FORWARD / REVERSE LINKAGE
8
a
b
c
d
e
1/16" Gap
Transmission
in Forward
Transmission
in Forward
1/16" Ga p
