THUNDER TIGER MTA4 User Manual

4
3

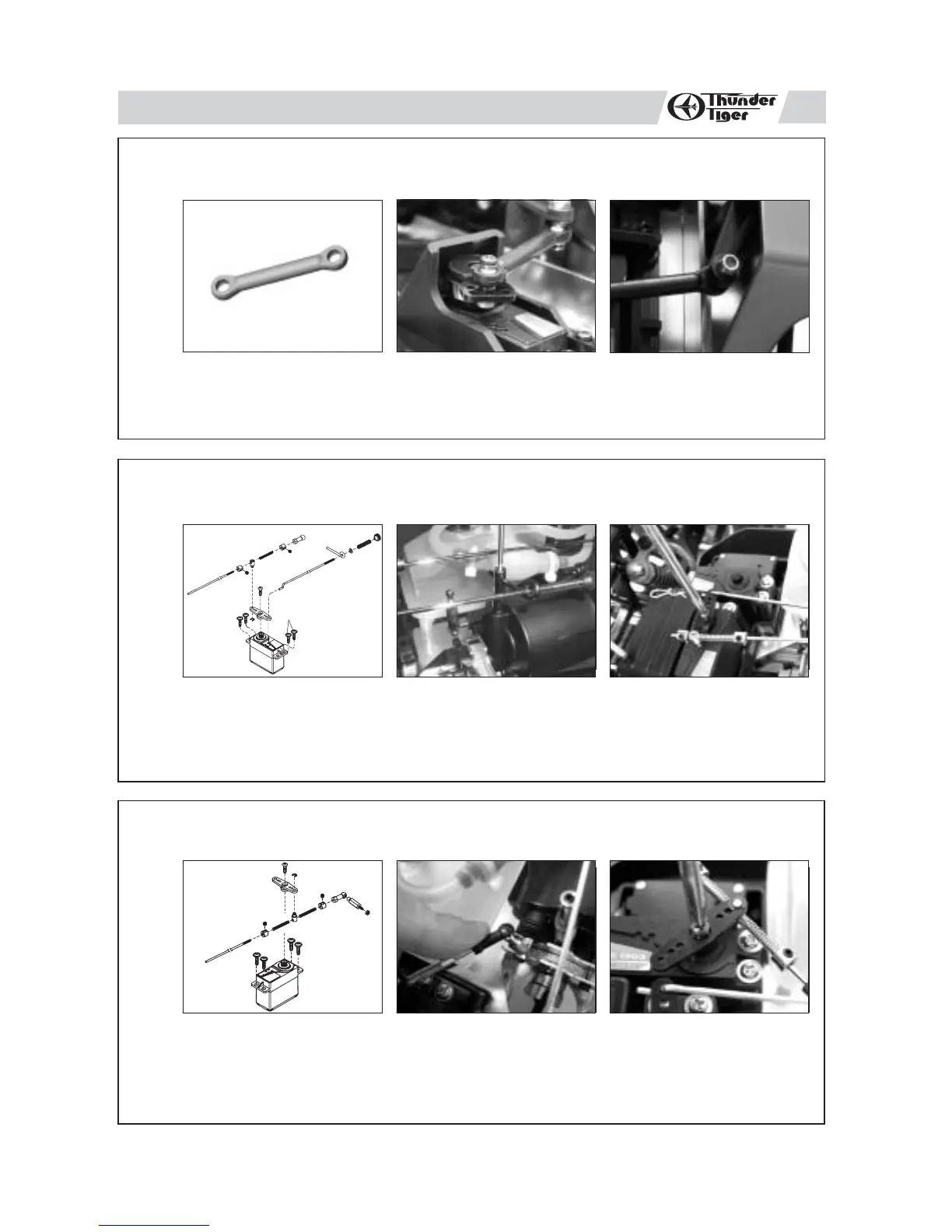

a. Find the steering linkages in the part bag as shown on the diagram.
b. Install the steering linkage rod onto steering servo saver.
c. Pop the linkage end onto the standoff ball on the steering rack.
a. Build the throttle/brake linkages as shown on the diagram.
b. Secure the brake cam lever onto brake cam with setscrew.
c. Install the servo horn onto throttle servo output shaft.
INSTALLING THROTTLE/BRAKE LINKAGE
Skip if already assembled in RTR version
4
a
b c
INSTALLING STEERING SERVO LINKAGE
Skip if already assembled in RTR version
a. Build the FWD/REV linkage rod as shown on the diagram.
b. Pop the linkage end onto the standoff ball on the FED/REV shifting gears
c. Install the servo saver onto FWD/REV servo output shaft.
INSTALLING FWD/REV LINKAGE
5
a
b c
c
b
a
