10
STAB,FIN & RUDDER

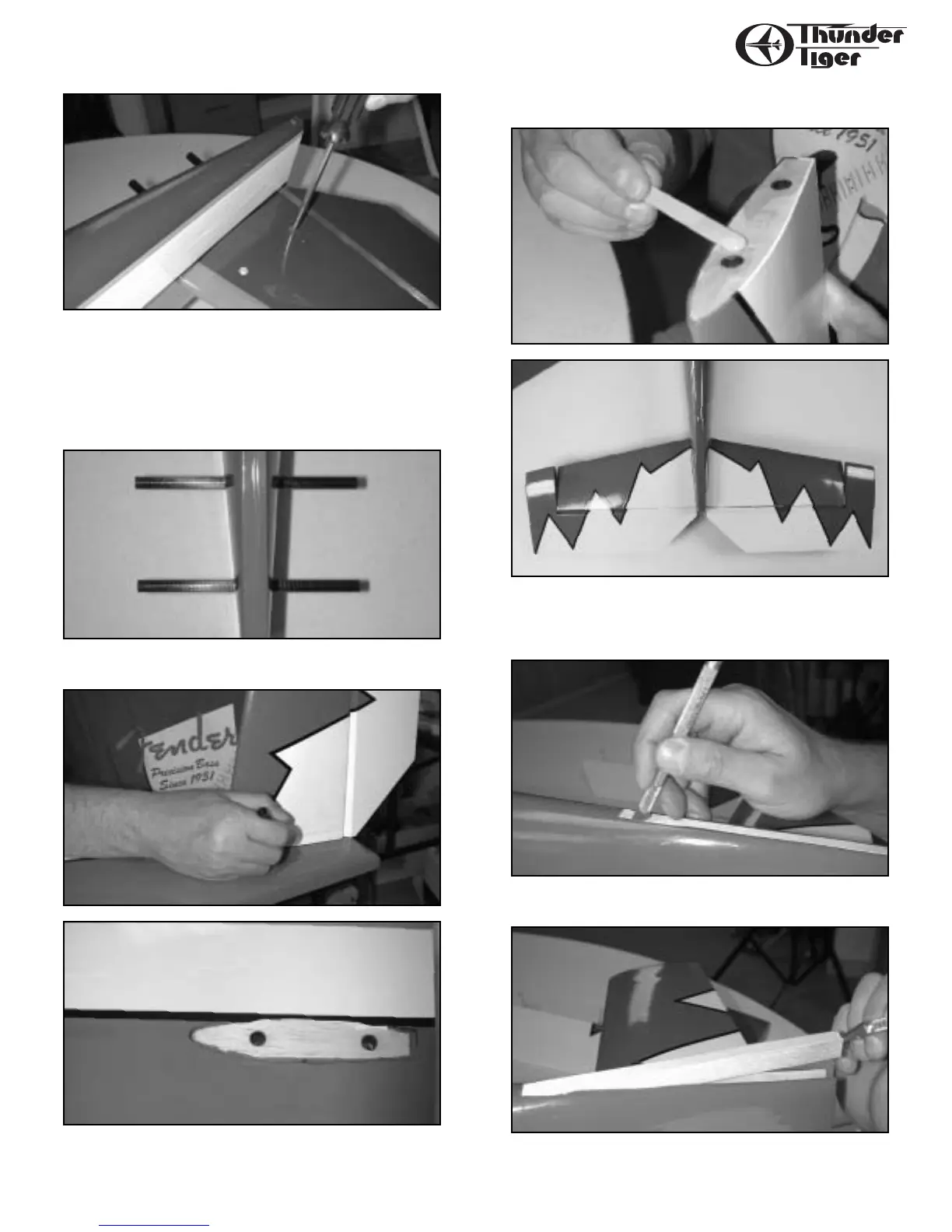

❐ With the stab and spars in place use a 3x10mm self tapping screw
to attach the stab to the spars. Repeat “Removable Stab” section for
other side.
Permanent Stab:
❐ Insert the two carbon fiber spars into the fuselage and center them.
Next slide one stab onto the spars on one side.
❐ Place the stab on the spars and against the fuselage. Mark around
the stab with a pen or marker and remove the covering material inside
the lines from the fuselage.
❐ Mix up some 5 minute epoxy and glue the spars into the fuselage.
Let sit 10 minutes.
❐ Mix up some 5 minute epoxy and glue the stabs to the fuselage and
let sit 15 minutes.
❐ Remove the elevators and rudder,T-pin the hinges.
❐ Remove the covering from the 1/2" wide flat stip at the top rear end
of the fuselage.
❐ Carefully cut 1/2" deep on either side of the exposed area and
remove the block inside (this block should be loose from the factory
but is only there for strength during sanding and covering.).
