THUNDER TIGER TTR4550 User Manual

4

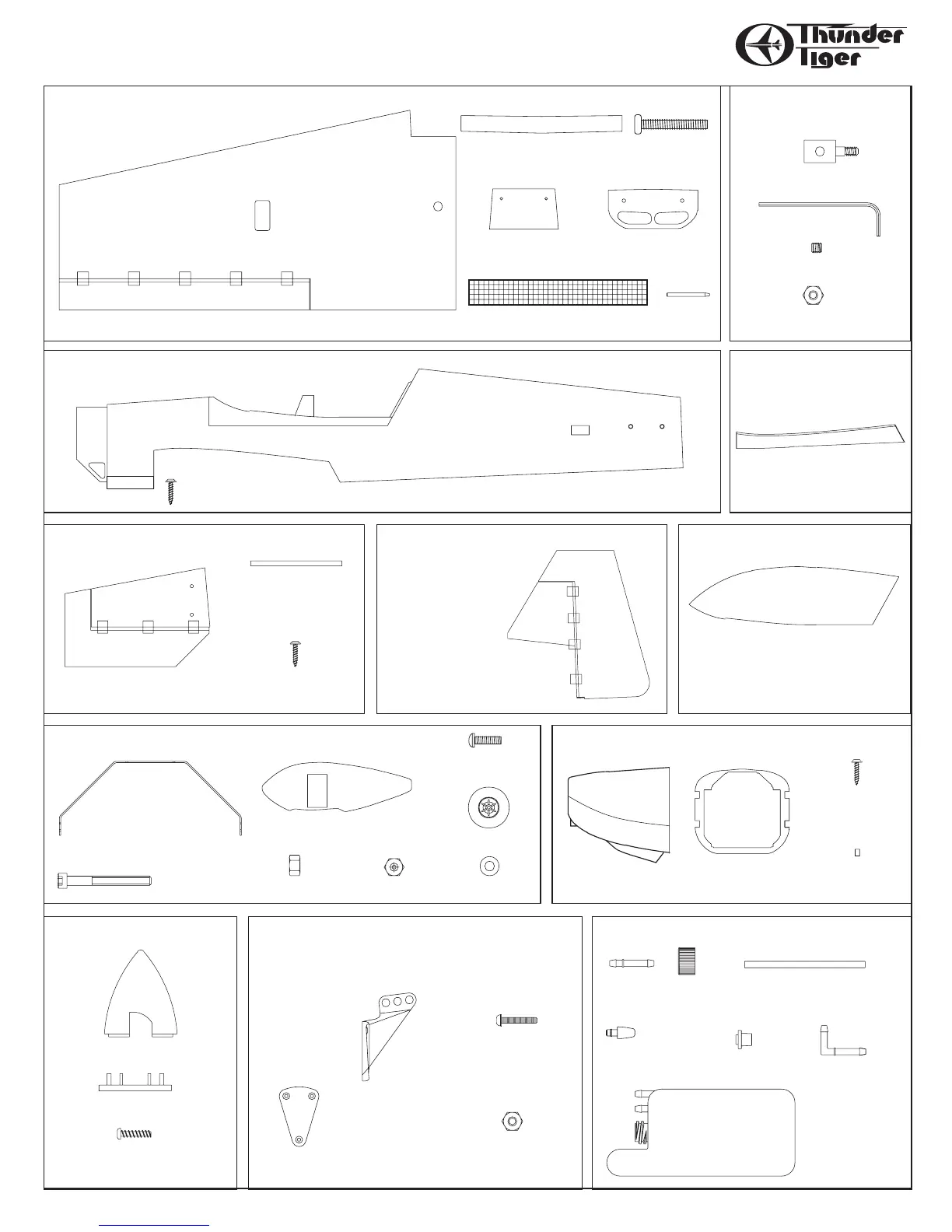

PARTS DRAWINGS
Main Landing Gear(1)
Wheel Pant(L/1, R/1)
AS6149 Main Landing Gear
4mm Nut(4) 4mm Locknut(2)
Wing Bolt Plate(1)
AS6146 Main Wing Set
Wing Joiner(4)
4mm Washer(2)
Main Wing( L/1 R/1)
Belly Front Former(1)
Fiber Cloth(1)
Dowel(2)
Wing Bolt(2)
AS6145 Fuselage
Fuselage(1)
2.3mm x 12mm Wood Screw(4)
AS6147 Horizontal Tail
stab./Elevator( L/1,R/1)
Carbon Tube(2)
2.3mm x 12mm
Wood Screw(4)
AS6148 Vertical Tail
Vertical Fin/Rudder(1)
Wheel(2)
4mm x 40mm
Socket Screw(2)
4mm x 16mm
Machine Screw(3)
AS6151 FRP Belly Pan
FRP Belly Pan(1)
PE0009 Hardware Set
(Sold in Pair)
2mm Hex Nut(1)
3mm x 3mm Set Screw(1)
Pushrod Connector(1)
Allen Wrench(1)
Canopy (1)
AS6152 Canopy
FRP Cowl(1)
AS6150 FRP Cowl
Mounting Ring(1)
2.3 x 12mm
Wood Screw(4)
Mounting Block(4)
Back Plate(1)
3mm x 12mm
Self-Tapping Screw(4)
No.3278W Spinner
720 c.c. Tank(1)
Fuel Stopper(1)
Cap(1)
90-degree Nipple(1)
Silicone Tube(1)
Nipple(1)
No.3272 Fuel Tank Set
Clunk (1)
No.3013 Swivel Ball Link Control Horn Set
(Sold in Pair)
2mm Hex Nut(15)
Back Plate(4)
2mm x 22mm
Screw(15)
Spinner(1)
Control Horn(6)
