11
ELEVATOR SERVO INSTALLATION

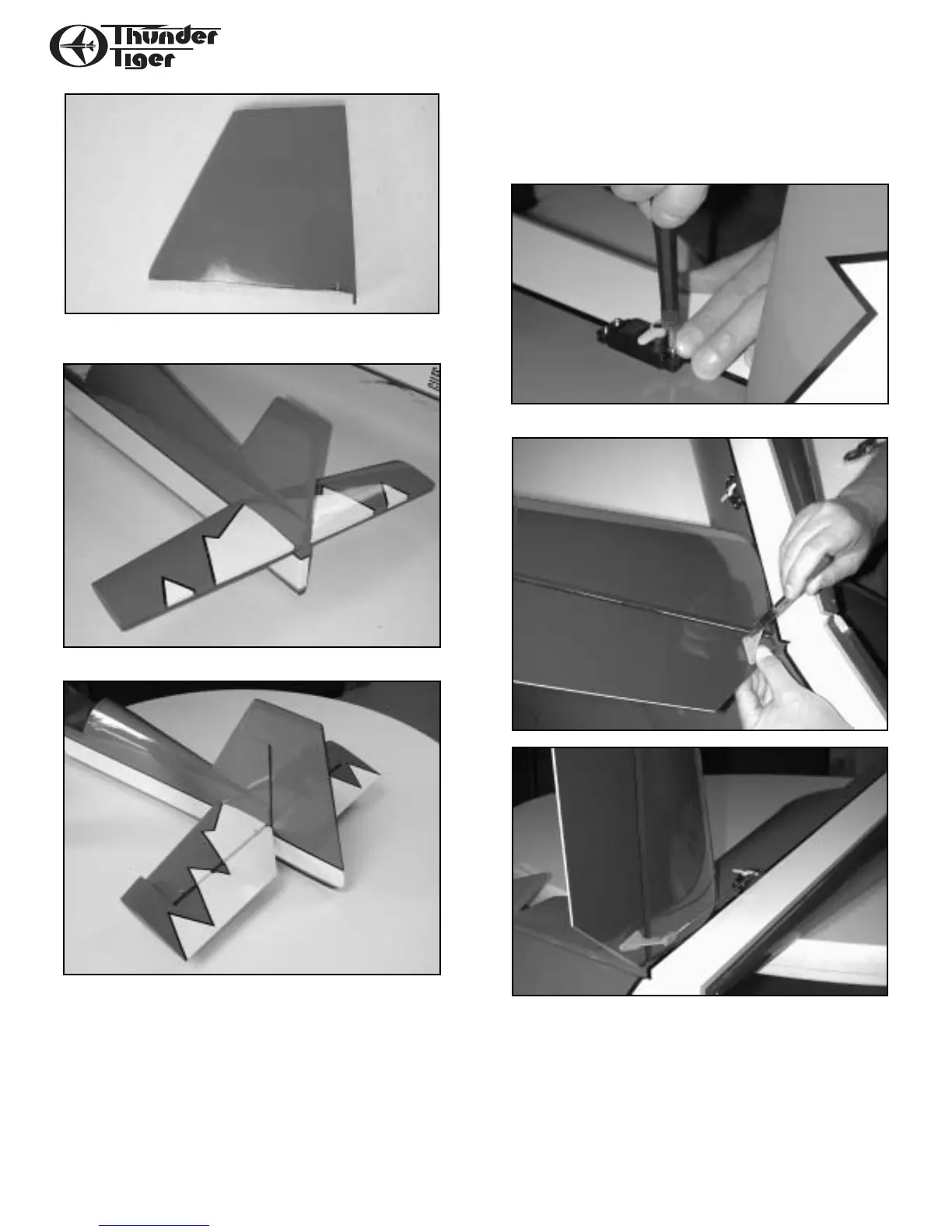

❐ Insert the fin into the fuselage and mark the fin against the edge of
the fuselage;cut and remove covering material at the bottom of the fin.
❐ Using 5 minute epoxy,attach the fin to the fuselage.
❐ Hinge the elevators and rudder using thin CA.
III. Elevator Servo Linkage and Control Horns
❐ Locate the servo well at the rear of the fuselage and cut an X
through the covering material over it with an Xacto knife. Seal the
flaps of covering material down with a sealing iron.
❐ Attach the 12" extension lead to the servo and install it.
❐ Place the control horn on the bottom side of the elevator and mark
screw holes with a pen or marker. Drill the holes all the way through
the elevator. Attach the control horn using the 2x22mm bolts and nuts
provided. Thread the clevis onto the pushrod and use the 2x6mm bolt
and nut to attach the clevis to the control horn.
