O
PERATING
M
ANUAL
DAF380
A
PPENDIX
ThyssenKrupp Aufzugswerke GmbH
9.2 Accessory parts
For operation of the DAF380, the following optional accessory parts can be
supplied:
1. Handwinding wheel
2. Rope clamp
3. Blocking clamp
4. Pressure arm
5. Hydraulic jack
Note: The listed parts are necessary for deployment in emergencies or in the
case of maintenance or repair work and at least one of each should be
present in every machine room.

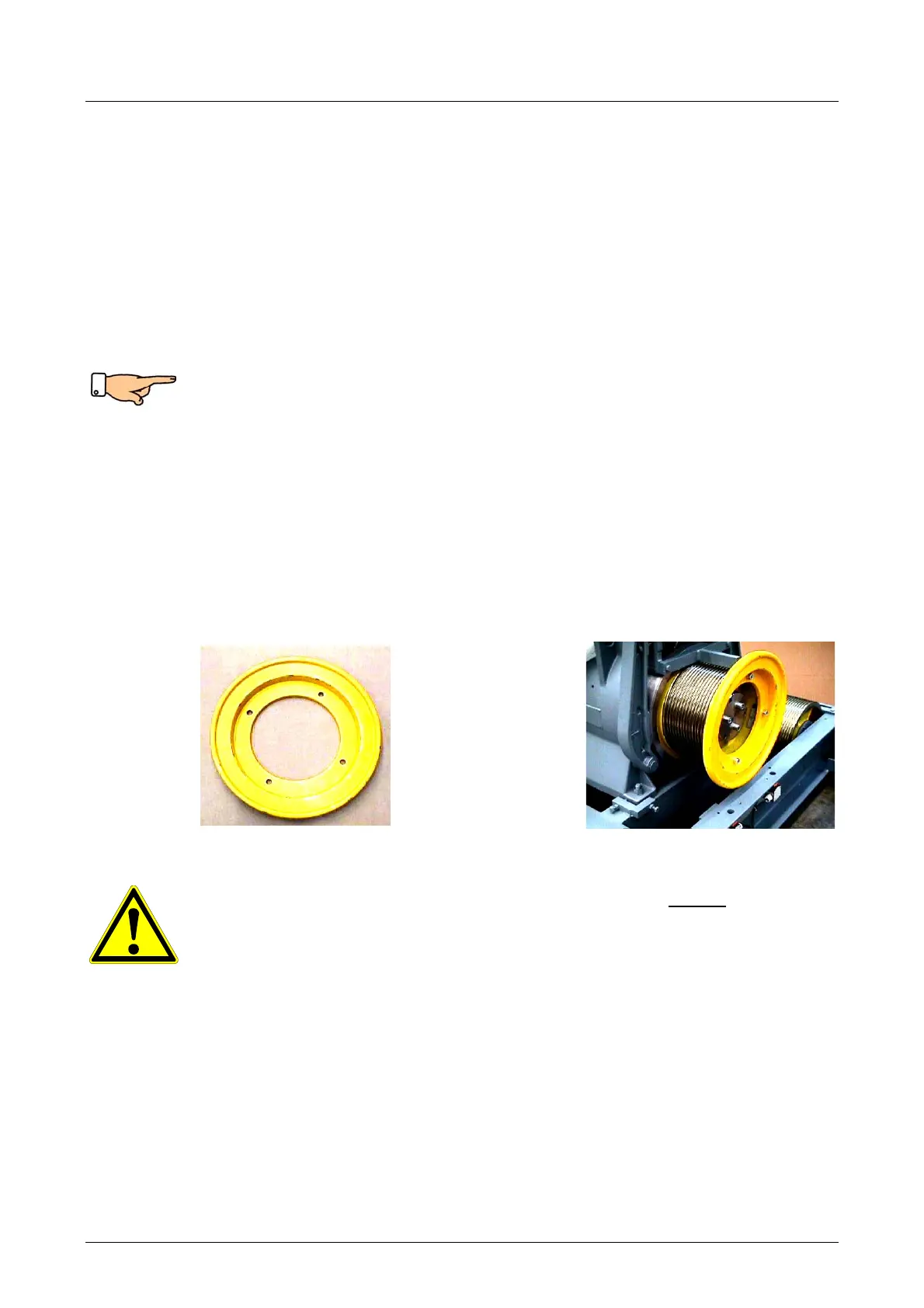

1. Handwinding wheel
The handwinding wheel is bolted onto the front of the traction sheave.
It is used to move the elevator when the weights are balanced, when the car
weight = counterweight
The brake is to be vented by hand.
Important: The handwinding wheel must be removed before switching
on the motor! No motor operation with the handwinding
wheel fitted.
2. Rope clamp
• Undo the screws on the rope clamp.
• Insert the halves of the clamp in the drilled hole on the front of the
machine base frame (on rope departure side of the traction sheave), one
half on the left and one on the right of the ropes.
• Align the groove of the halves of the clamp on the ropes.
• Place the rope clamp on the frame profile at the bottom.
• Clamp the ropes into place by screwing together the halves. Tighten the
screws firmly.
Fig. 9.2
Fig. 9.3
