ThyssenKrupp DAF380 - Blocking Clamp for Traction Sheave

O PERATING M ANUAL DAF380 A PPENDIX
ThyssenKrupp Aufzugswerke GmbH
Deployment:
a) Rope locking; it prevents rope movements in the direction of the support.
b) To hold the elevator car in position
c) For readjustment on releasing the car from the engaged position (safety
gear)

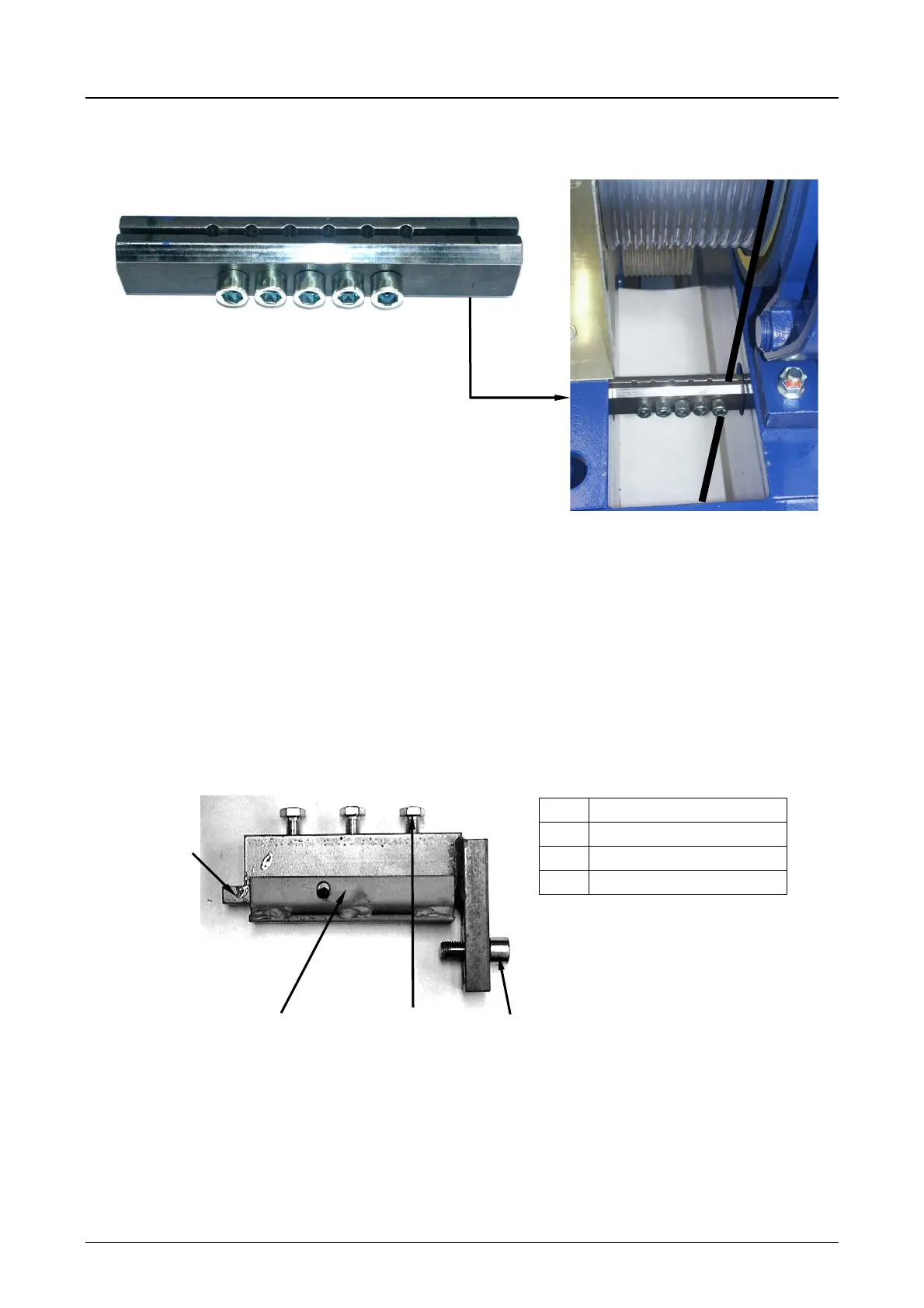

3. Blocking clamp (for traction sheave)
1 Lug
2 Pressure piece
3 Pressure screw
4 Securing bolt
Engage the blocking clamp with lug (item 1) in the ring groove under the
brake disc. Screw in the securing bolt on the front of the traction sheave.
Tighten the pressure screws to clamp the ropes.
Deployment: In the event of slipping ropes.
Example: On releasing the car from the engaged position (safety gear).
Fig. 9.4
4
2
3
1
Fig. 9.6
Fig. 9.5
Push rope clamp into frame
51
08-2011
