NA11 - Manual - 02 - 2009
FUNCTION CHARACTERISTICS
Example 2
The residual CT primary current I
Enp
must be set as: I
Enp
= 100 A
Measurement reading mode
Measures may be displayed according the following operating modes:
- With RELATIVE setting all measures are related to the nominal value,
- With PRIMARY setting all measures are related to the primary value.
•

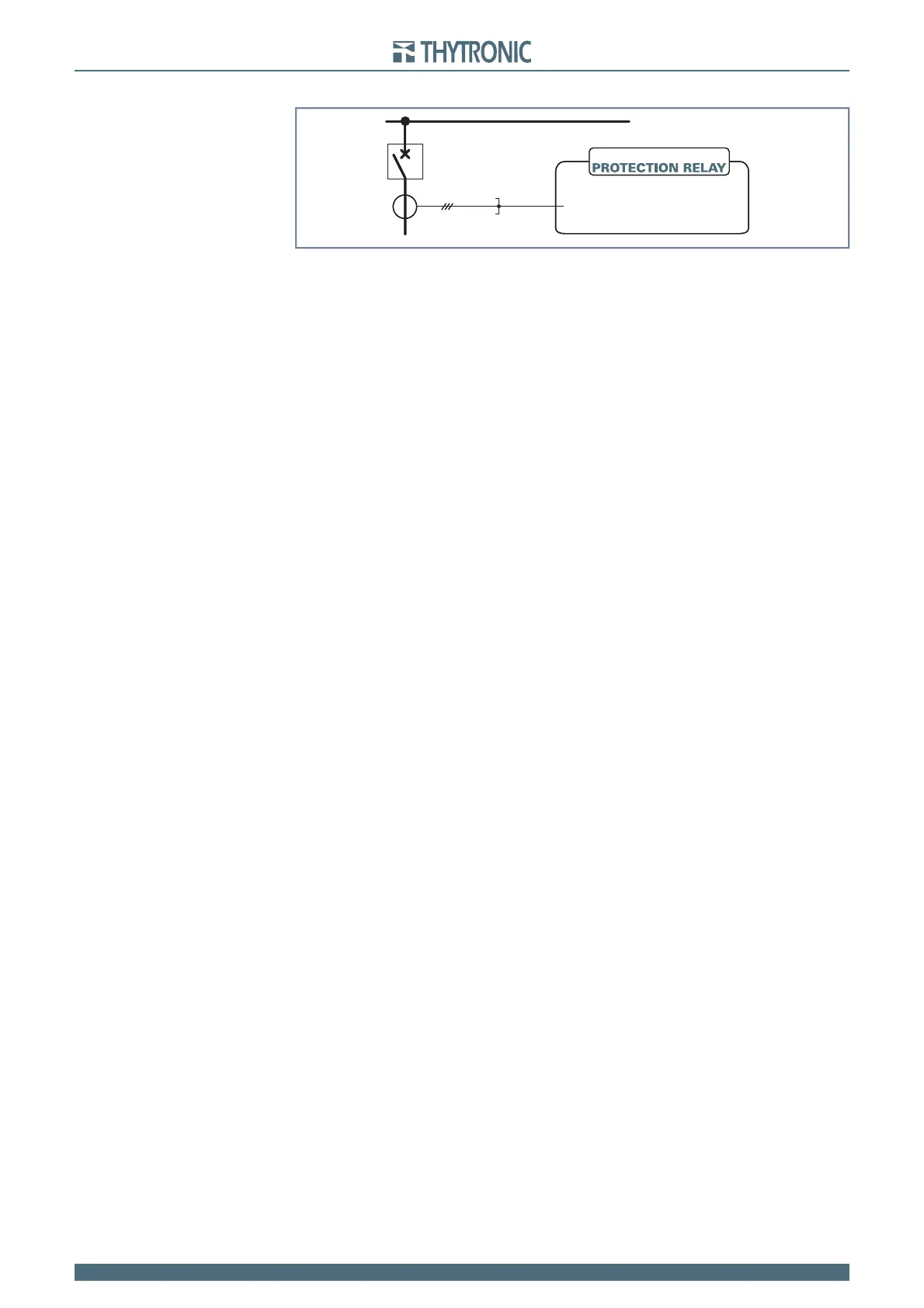

Es2-IEn.ai
3x
K
TA
= 100A / 5A
52
I
En
= 5 A
NA11
Es2-IEn.ai
3x
K
TA
= 100A / 5A
52
I
En
= 5 A
NA11
