4) If the selected option is Gradient step mode, the step edit window will be shown as figure
3-3-9.

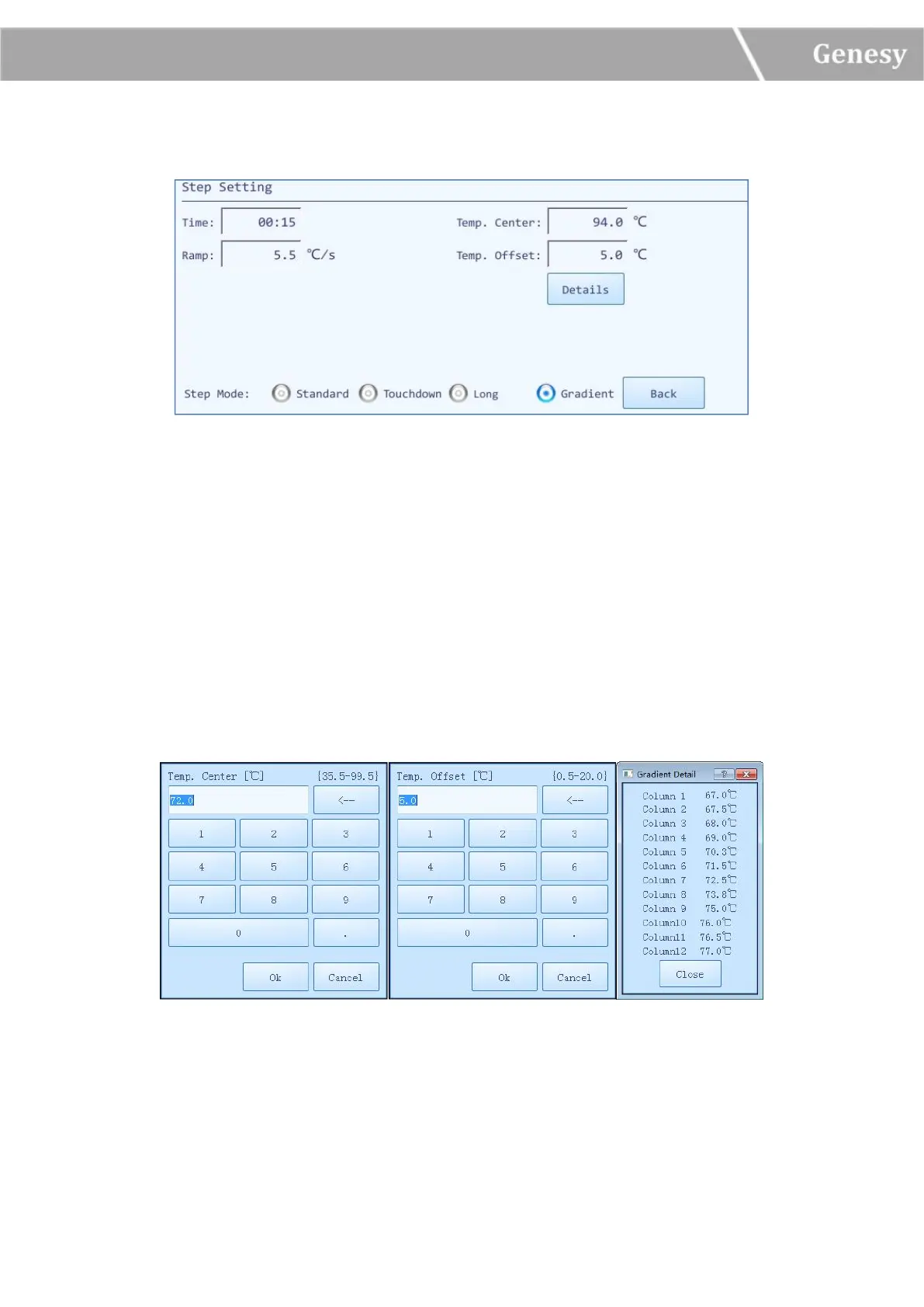

Figure 3-3-9 Step Edit Window – Gradient Step Mode
► The gradient step mode allows the Genesy thermal cycler block to adopt different
temperatures. After setting the temperature center value and the temperature offset value
for the current gradient step, the system will automatically calculate the gradient
temperatures.
► Users could press the input boxes of Temp. Center and Temp. Offset to edit the
corresponding parameters for the current gradient step. Users could also and press <
Details > to view the specific gradient temperatures of each column, as shown in figure
3-3-10.
Figure 3-3-10 Step Edit Window - Gradient Step Mode Parameters Setting
Temp. Center: the center value of the temperature grading range.
Temp. Offset: the offset value of the temperature grading range.
