3.2 Software Operation
The operation area of the system software includes Experiment File, Run Setting, Run
Monitoring, General Setting four tabs. Users could perform relevant operations and set the
corresponding contents according to the specific experimental requirements.
► Experiment File: display experiment files and provide the relevant experiment file
operations;
► Run Setting: provide the experiment temperature, cycle, reaction volume and hot lid
setting operations;
► Run Monitoring: display real-time running information of the current experiment;
► General Setting: provide general setting operations of the current system and instrument.
3.2.1 Experiment File

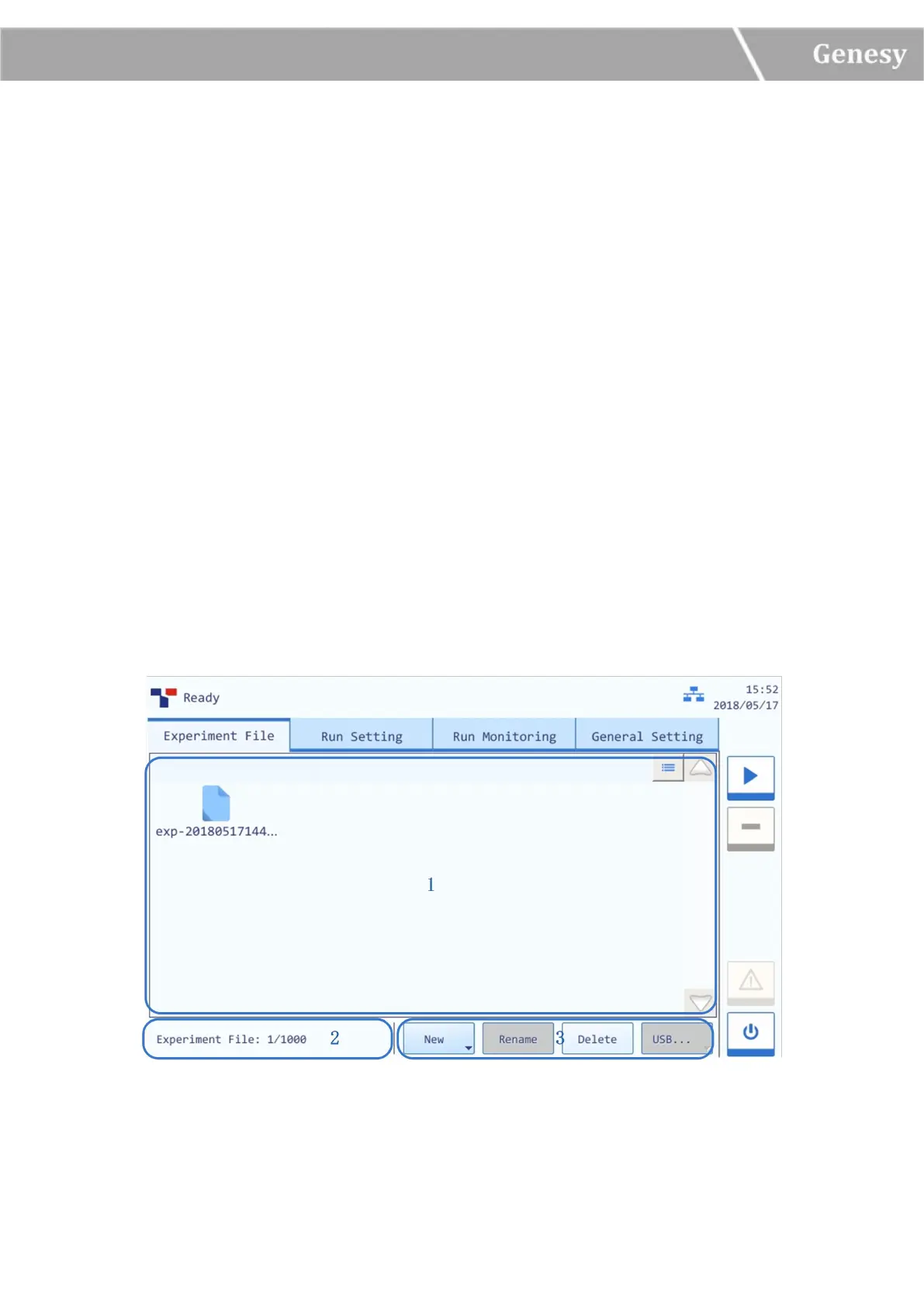

The experiment file tab is selected on the main interface by default, as shown in figure 3-2. The
experiment file interface is consisted of three parts: experiment file displaying area, experiment
file information area and experiment file operation area.
Figure 3-2 Experiment File Interface
