2 KEYBOARD AND CHARACTER PROMPT

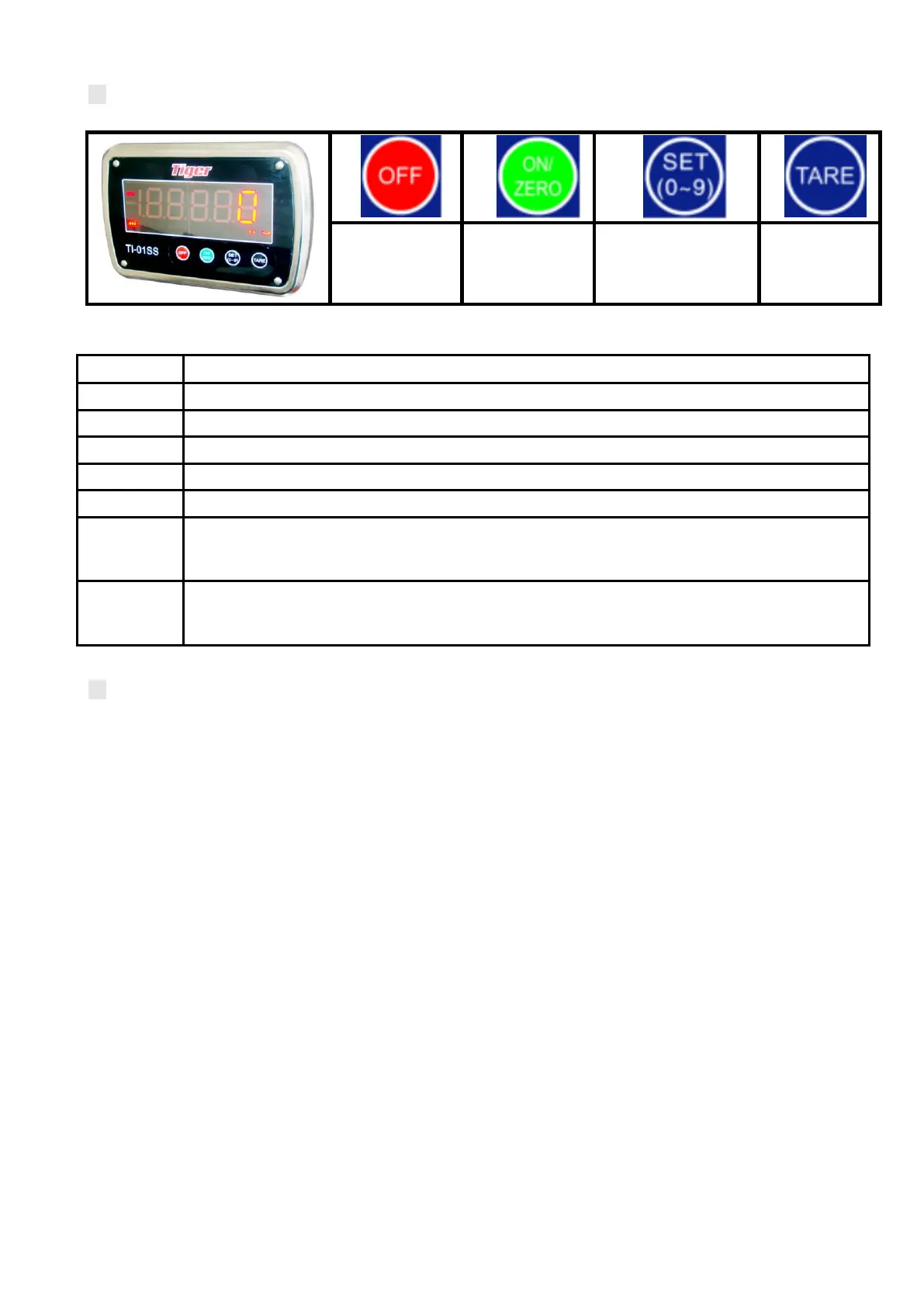

2.1 KEYBOARD
TURN OFF KEY
TURN ON/
ZERO KEY
SET/FIG,SET
/
PARA,
INPUT FIG KEY
TARE KEY
2.2 CHARACTER PROMPT
INDICATION
MEANING
3101.x
SOFTWARE VERSION NUMBER
dc x.xx
AFTER POWER ON, IT SHOW THIS PROMPT, Mean the voltage of battery is x.xxV
Err-00
AFTER POWER ON, LOAD CELL WIRING ERROR OR AD ERROR
Err-01
CALIBRATION SWITCH IS NOT SHORT WHILE CALIBRATING
Err-02
COUNTING MODE, UNDERSAMPLING
Err-03
WHEN CALIBRATING, THE PLACED WEIGHT IS TOO SMALL, REFUSE TO CALIBRATE, THE
WEIGHT SHOULD
BE MORE THAN 10% MAX.CAPACITY
- - - -
OVERLOAD, SHOW THIS AS THE WEIGHT OVER 100%FS+9E, WITH THE „DING‟ SOUNDING,
THIS MEANS
OVERLOAD, REDUCE THE WEIGHT
3 OPERATION GUIDE
3.1 INSTALL AND ADJUST
3.1.1 STAINLESS STEEL INDICATOR
OPEN THE BACK COVER OF INDICATOR, WELDING THE LEADS OF LOAD CELL BY
COLOUR, RING THE WELDING POINT WITH HEAT SHRINKABLE TUBE, CONTRACTION
AFTER HEATING, THEN PLACE ALL THE LINES INTO SEALING BOWL, FIX THE LINES
AND SEALING BY 704 GLUE, AIR DRY AFTER ONE HOUR. MEANING：RED(POWER+)，
BLACK(POWER-)，GREEN(SIGNAL+)，WHITE(SINGAL-)
3.1.2 STAINLESS STEEL PLATFORM SCALE
INSERT THE POLE INTO PLATFORM BASE AND FIX IT BY L TYPE SMALL WRENCH,
THEN INSTALL INDICATOR ON T TYPE FRAME.
3.2 TURN ON AND TURN OFF
① TURN ON：
PRESS <ON/ZERO> KEY ， CURRENT CONNECTED, THE “DING” SOUNDED, IT DISPLAYS
SOFTWARE VERSION, dc-x.xx(VOLTAGE
OF BATTERY IS 3.0~4.2V)，SELF-INSPECTION, 9,8,7···1,0, THE “ZERO” LAMP LIGHTING. NOW IT
IS IN A WORKING STATE.
