TiLite ZR - Adjusting Height;Replacing; Angle Adjustable High Mount Footrest; Adjusting the Angle

3-4
ZR Owner’s Manual
OM_ZR_0913RevA
CHAPTER 3: FOOTRESTS

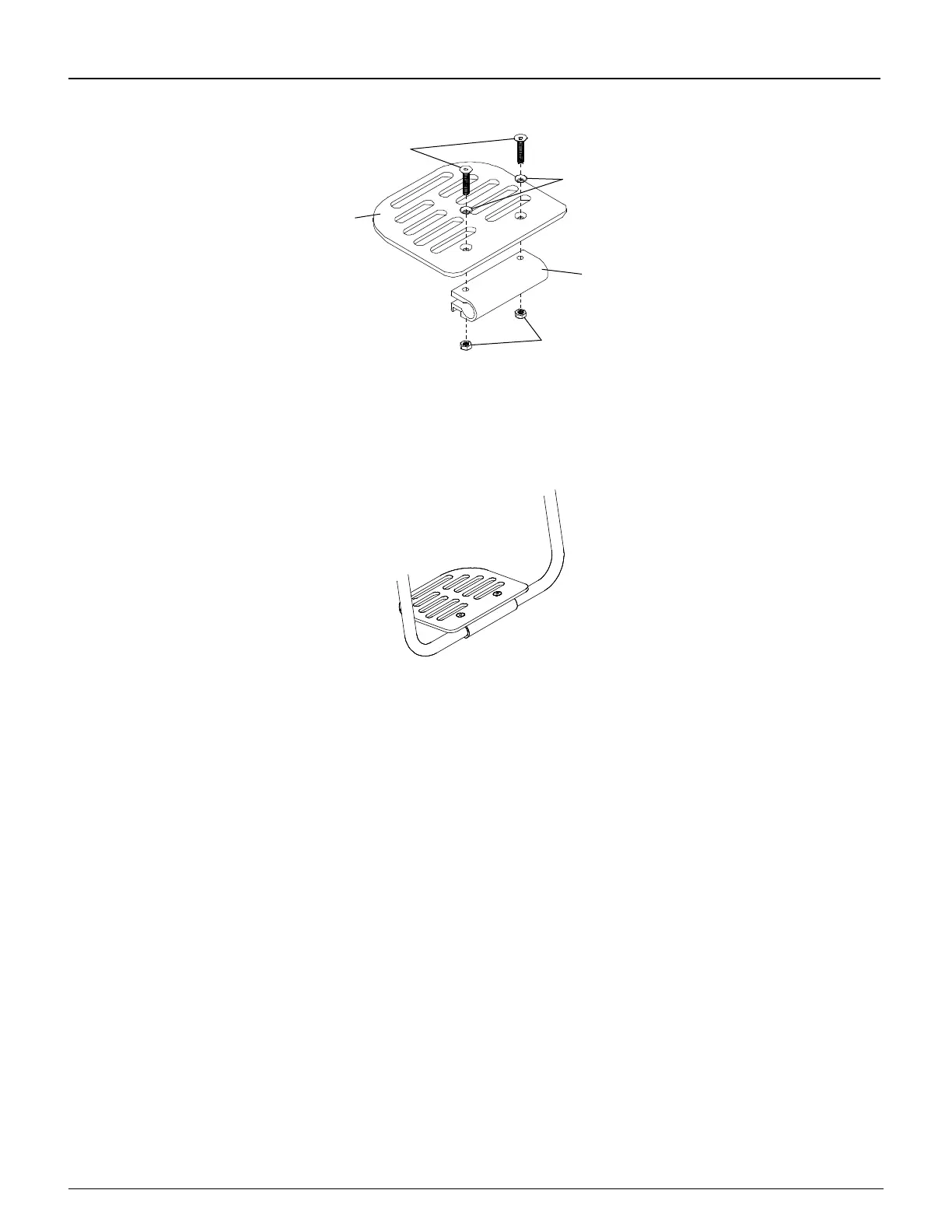

Figure 3-6
Adjusting the Angle
Allen
Screws
Footplate
Clamp
Washers
Locknuts
Adjusting the Height/Replacing
The Angle Adjustable Footrest (see Figure 3-7) can be replaced, or the height adjusted, by using the tools and
following the procedures under “Titanium Footrest with Flat ABS Cover” on pages 3-1 and 3-2.
Figure 3-7
Angle Adjustable Footrest
Angle Adjustable High Mount Footrest
Adjusting the Angle
Tools needed:
• 5/32” Allen Wrench (no extension tubes)
• 3/16” Allen Wrench (extension tubes only)
1. Loosen, but do not remove, the Allen screws. See Figure 3-8. If your footrest has extension tubes (see Figure
3-9), you will have 3/16” Allen screws in place of locknuts and you will only need to loosen these latter Allen
screws to adjust the angle.
2. Adjust the footrest to the desired angle.
3. Tighten the Allen screws and locknuts (or 3/16” Allen screws), making sure the screws and the locknuts (or 3/16”
Allen screws) are secure and will not permit the footplate to move up or down under your weight.
