3-5
ZR Owner’s Manual
OM_ZR_0913RevA
CHAPTER 3: FOOTRESTS

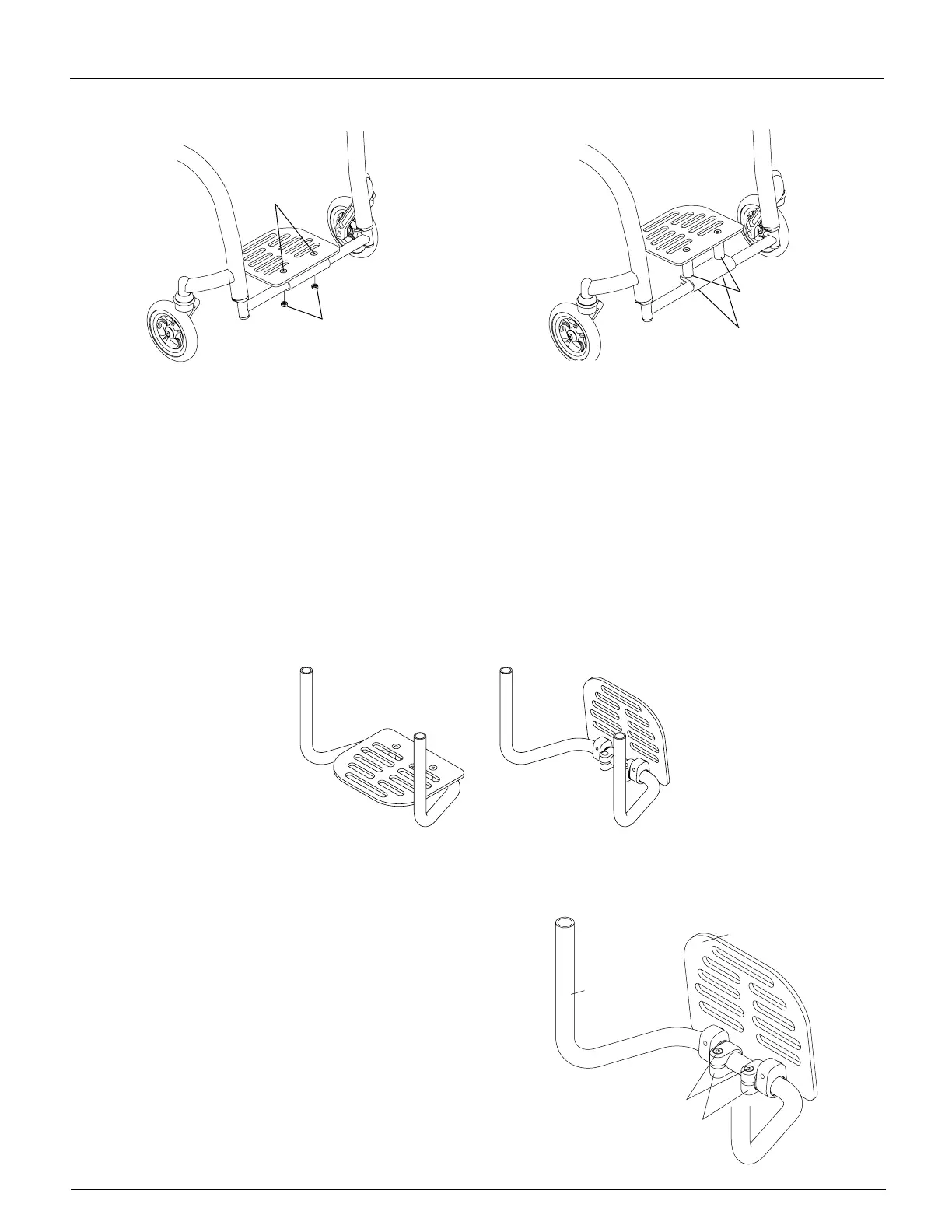

Figure 3-8
Angle Adjustable High Mount Footrest
Allen
Screws
Locknuts
Figure 3-9
Angle Adjustable High Mount Footrest with Extension Tubes
Extension Tubes
Allen Screws
Adjusting the Height/Replacing
The Angle Adjustable High Mount Footrest can be replaced, or the height adjusted, by using the tools and following
the procedures under “Titanium Footrest with Flat ABS Cover” on pages 3-1 and 3-2.
Flip-Back Footrest
The Flip-Back Footrest can be ipped upward and backward to position the footplate out of the way for purposes of
transferring into and out of the wheelchair. See Figure 3-10.
You can adjust the height of, or replace, the Flip-Back Footrest by using the tools and following the procedures for
adjusting the height of, or replacing a footrest as set forth under “Titanium Footrest with Flat ABS Cover” on pages 3-1
and 3-2.
Figure 3-10
Flip-Back Footrest
Adjusting the Angle
Tools needed:
• 3/16” Allen Wrench
1. Loosen, but do not remove, the two Allen screws that
secure the stop clamps to the footrest extension tube.
See Figure 3-11.
2. Adjust the footrest to the desired angle.
3. Tighten the Allen screws. Make sure the screws are
secure and will not permit the footplate to rotate
downward under weight.
Figure 3-11
Adjusting the Angle
Footplate
Footrest
Extension
Tube
Stop Clamp
Allen Screws
