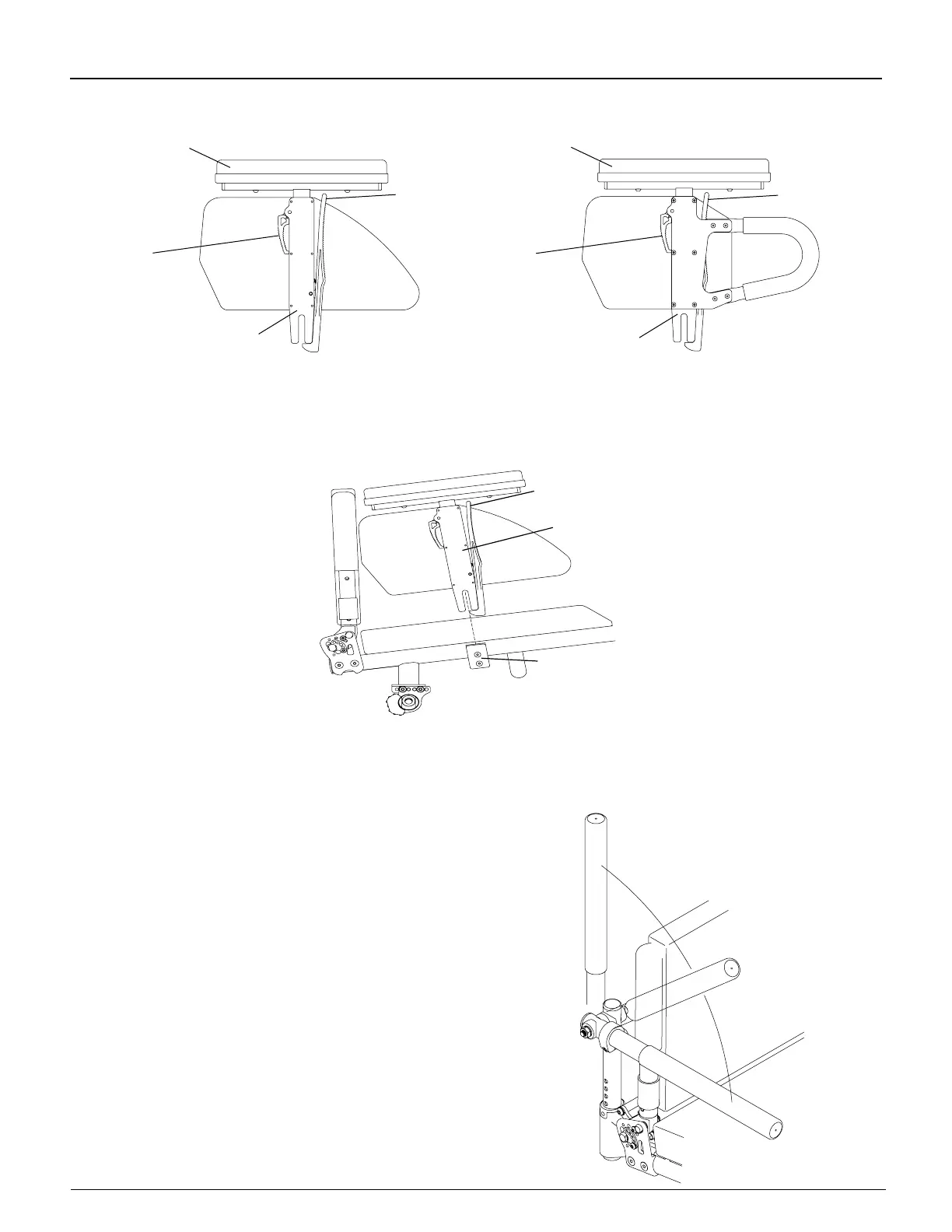

CHAPTER 5: ARMRESTS
Removable Desk Arm Removable Desk Arm with Transfer Loop
Figure 5-4
Desk Arm
Housing
Height
Adjustment
Lever
Height
Adjustment
Lever
ArmrestArmrest
Release
Lever
Release
Lever
Desk Arm
Housing
Figure 5-5
Mounting
Release
Lever
Desk Arm
Housing
Desk
Arm
Mount
Swing Away Flip-Back Armrest
To ip back the armrest, raise the front of the armrest and
rotate it straight back as far as possible. Reverse this
procedure to return the armrest to its original position. See
Figure 5-6.
To swing away the armrest, lightly lift up on the armrest
and rotate the armrest away from the chair. See Figure 5-6.
To replace the armrest, swing it back towards the chair and
gently push it back down into place.
Note: The Swing Away Armrests pivot on nylon sleeves
located inside the armrest receiver. If the armrest does
not rotate properly, check the sleeves for wear.
Figure 5-6
Swing Away Flip-Back
