CHAPTER 3: FOOTRESTS
Adjusting the Height/Replacing
You can adjust the height of, or replace, the ip back footrest by using the tools and following the procedures for
adjusting the height of, or replacing a footrest as set forth under “Titanium Footrest with Flat ABS Cover” on pages 3-1
and 3-2.
Buckle Adjustable Calf Strap

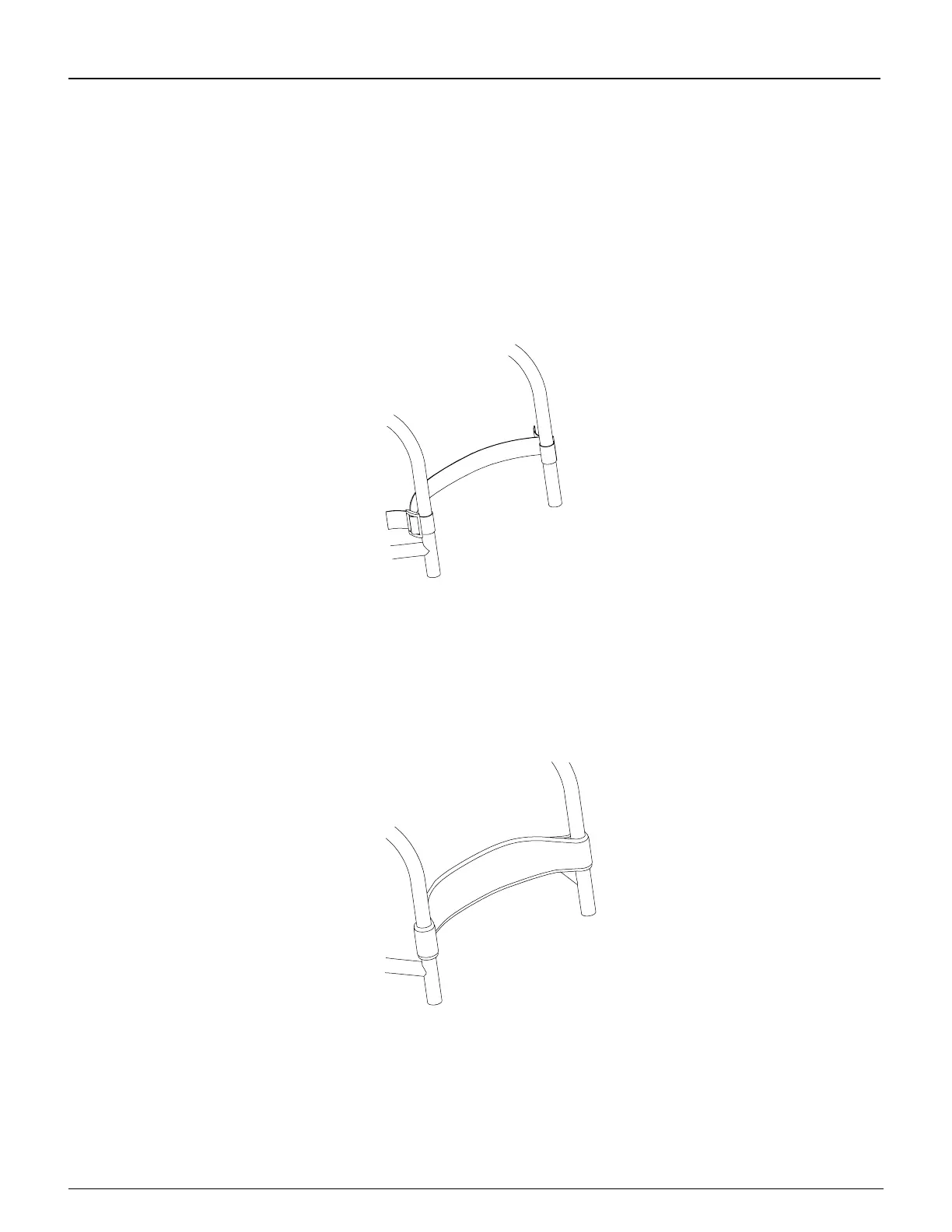

Buckle Adjustable Calf Strap is shown in Figure 3-12. Install the calf strap as shown in Figure 3-12.
Figure 3-12
Buckle Adjustable Calf Strap
Velcro® Adjustable Calf Strap/ Velcro®
Padded Adjustable Calf Strap
The Adjustable Calf Strap and Padded Adjustable Calf Straps are shown in Figure 3-13. Install the calf straps as
shown in Figure 3-13.
Figure 3-13
Padded Adjustable Calf Strap
