Timberwolf TW190TDHB - Page 36

TIMBERWOLF
TW 190TDHB
35
Item Part No Part Name Q’ty 1 19571FB Outer Chassis Beam N/S 1 2 17475FB Inner Chassis Beam N/S 1 3 0352 M8/40 Bolt 2 4 0712 M8 C Washer 24 5 19619 Lightboard 1 6 0346 M8/20 Bolt 5 7 19074FB Lightboard Bracket 1 8 0481 M8 T Nyloc Nut 3 9 0429 M12/35 Bolt 12 10 0704 M12 C Washer 34 11 0644 M12 P Nyloc Nut 12 12 19583 Tow Head 1 13 1830FB Cross Beam 1 14 18037 M8/12 Bolt 8 15 1644 AV Mount 4
Item Part No Part Name Q’ty 16 0052 M10 T Nyloc Nut 2 17 18036FB Battery Cover 1 18 4210 Battery 1 19 0360 M10/25 Bolt 6 20 1518 M12/130 4 21 17478 Jockey Wheel 1 22 17474FB Inner Chassis Beam O/S 1 23 19572FB Outer Chassis Beam O/S 1 24 1252 M10/50 Bolt 2 25 0415 Heavy Washer 4 26 0702 M12 A Washer 4 27 17494 Axle 1 28 0479 M8 P Nyloc Nut 4 29 3043FS Outer Beam Handle 2
30 0354 M8/60 Bolt 1
Item Part No Part Name Q’ty 31 1682 Threaded Stand Off 1 32 2633 Wind Down Jack Stand 1 33 18035FS Battery Support Bracket 1 34 1683M Plain Stand Off 1 35 17501 Jockey Wheel Clamp 1 36 0839 M10 C Washer 6 37 0350 M8/25 Bolt 2 38 1036 M10 Brake Adjuster Nut 1 39 19585 Brake Rod 1 40 0382 M10/30 Bolt 4 41 079F Nut Ball 1 42 1501 M10 Plain 1/2 Nut 1 43 4345 M10 P Nyloc Nut 6 44 0701 M10 A Washer 4
3
5
6
7
1
2
16
18
12
21
20
10
4
28
4
9
10
11
9
10
11
13
17
11
22
23
4
8
30
4
34
8
6
4
31
4
37
28
32
38
39
41
42
33
4
27
Date Last Modified: 20th March 2013
29
35
4
14
14
15
19
36
36
x2
43
36
40
24
43
44
x4
25
26

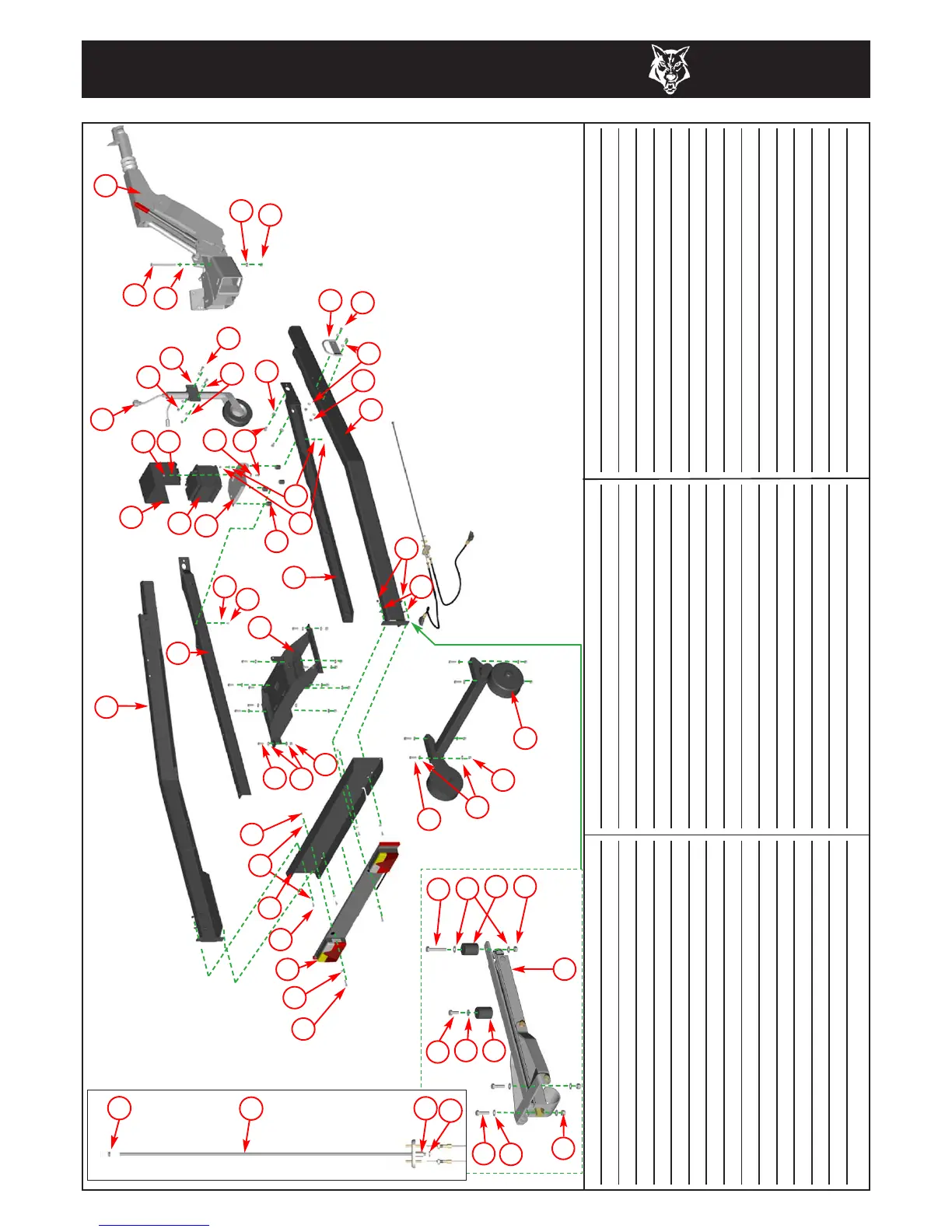

CHASSIS (ADJUSTABLE TOWHEAD)
