Timberwolf TW190TDHB - Page 37

Item Part No Part Name Q’ty
1 19077FB Nearside Mudguard 1
2 19078F Offside Mudguard 1
3 0346 M8/20 Bolt 4
4 0711 M8 AWasher 4
5 0236 M5 P Nyloc Nut 4
6 0857 M5 A Washer 4
7 0712 M8 C Washer 12
8 0481 M8 P Nyloc Nut 8
9 18922 Reflector Clear 2
10 0856 M5/20 Pan Pozi 4
11 18923 Reflector Amber 1
12 0839 M10 C Washer 8
Item Part No Part Name Q’ty
13 0360 M10/25 Bolt 8
14 1932 Wheel (inc. spare) 3
15 0067 Pop Rivet 6
16 2963 Catch 1
17 0358 Catch Plate 1
18 17522FB Tool Box Lid 1
19 0351 M8/30 Bolt 4
20 19625 Rainflap Supports 2
21 19626 Rainflap Clamp 2
22 19603 Rainflap 2
23 18919 Reflector Support Bracket 2
Date Last Modified: 23 Feb 12
10
9
3
4
5
6
11
10
7
8
5
17
15
18
15
12
13
16
15
12
13
14
2
1
19
7
21
2220
7
8
23
36
TIMBERWOLF
TW 190TDHB

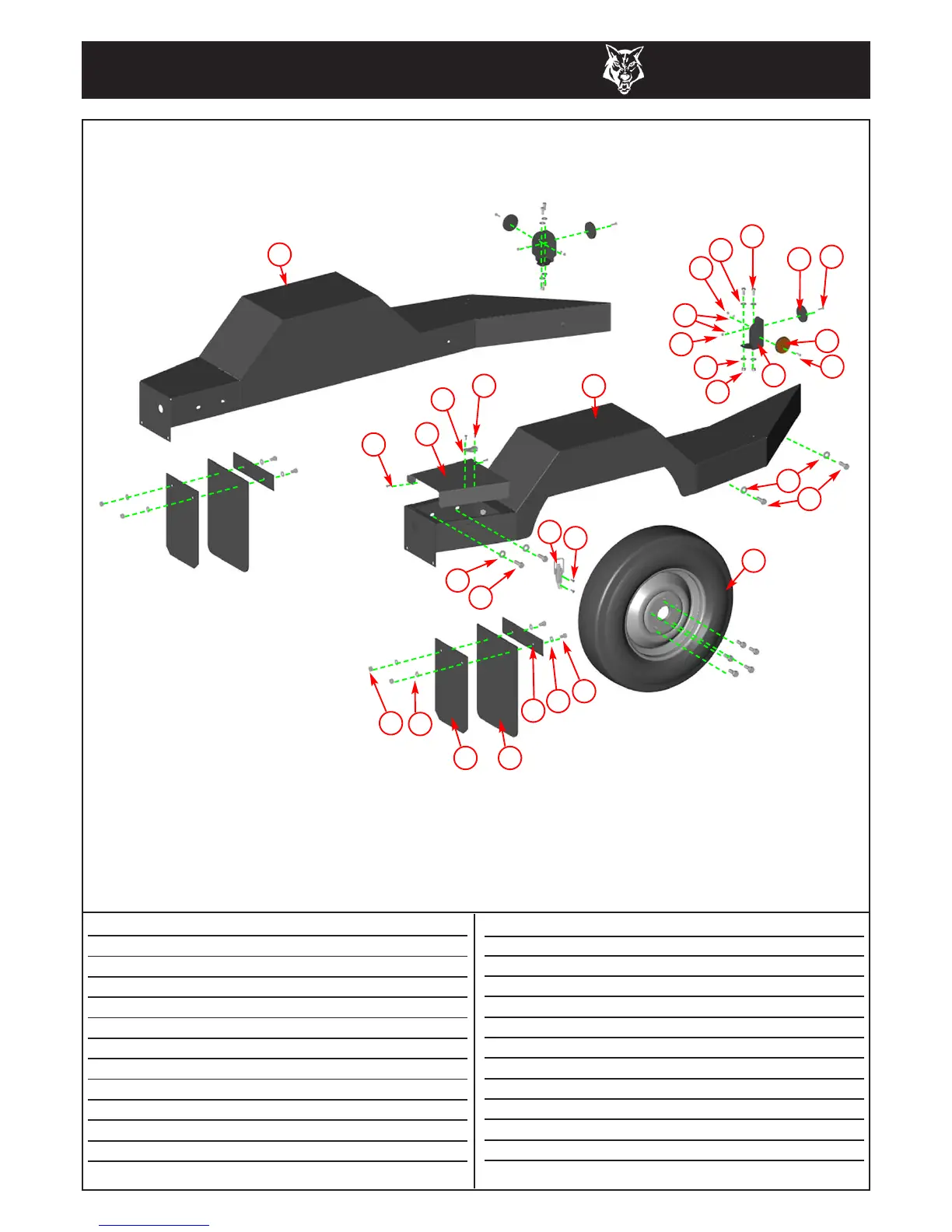

CHASSIS (MUDGUARDS AND RAINFLAPS)
