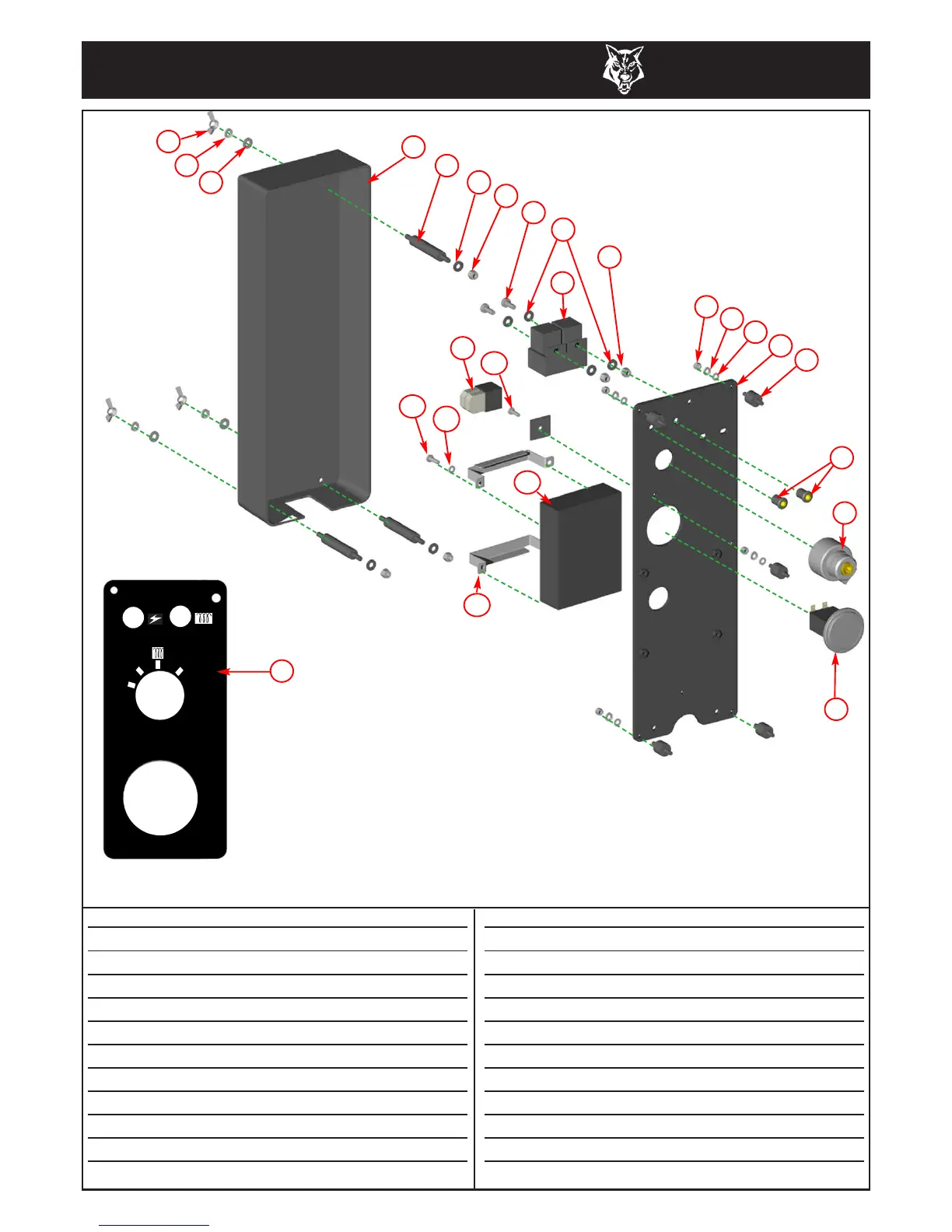

TIMBERWOLF
TW 190TDHB
Date Last Modified: 20th March 08
Item Part No Part Name Q’ty
1 18107 M6 Wing Nut 3
2 18106 M6 Split Washer 3
3 0709 M6 C Washer 11
4 1972 Electrical Cover 1
5 2725 Electrical Cover Stand Off 3
6 0391 M6 T Nyloc Nut 5
7 0438 M6/16 Pan Pozi 3
8 Supp’d with loom Relay 2
9 0857 M5 AWasher 9
10 0236 M5 P Nyloc Nut 5
11 2958FS Electrical Panel 1
Item Part No Part Name Q’ty
12 4033 M5 AV Mount 5
13 Supp’d with loom LED 2
14 Supp’d with engine Ignition Switch 1
15 0327 Hours Counter 1
16 Supp’d with loom Fuse 2
17 1151 Countersunk Pop Rivet 1
18 0435 M5/16 Pan Pozi 4
19 18405 H-Box 1
20 2951 Control Panel Decal 1
21 3024 M5 Spring Washer 5
22 18398 Mounting Bracket 2
1
10
12
16
3
5
3
14
11
6
7
8
13
15
17
4
0
1
2
20
2
3
6
18
9
19
21
9
22
CONTROL PANEL
