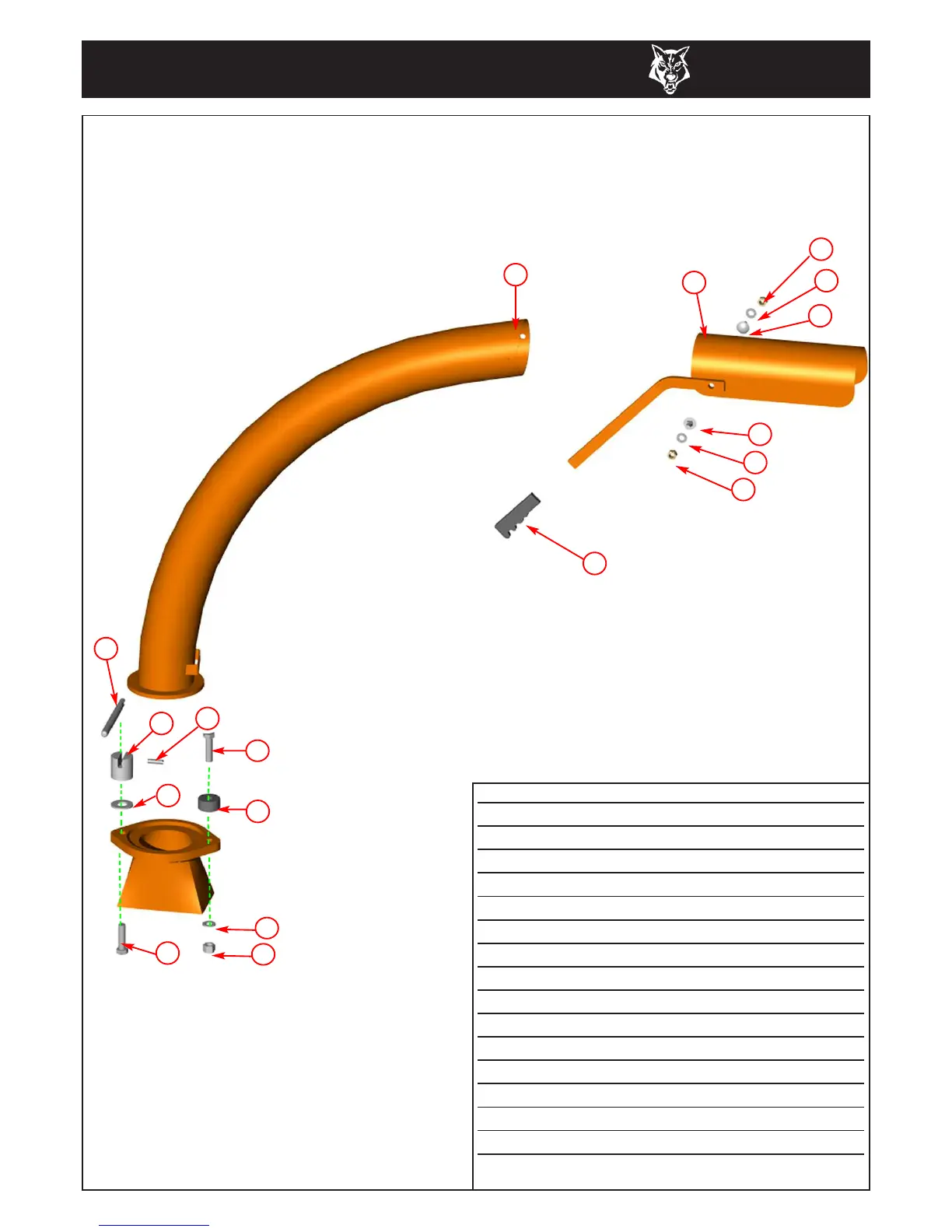

Timberwolf TW190TDHB - Discharge and Drive Train Parts

39
Item Part No Part Name Q’ty
1 P*344 Discharge Tube 1
2 0523FO Discharge Bucket 1
3 0045 M12 T Nyloc Nut 2
4 0702 M12 A Washer 2
5 19282 M12/30 Cup Square 1
6 19283 M12/40 Cup Square 1
7 0134 Black Handle Grip 1
8 1649MS Discharge Clamp Handle 1
9 4109M M16 Clamp Nut 1
10 4131 Roll Pin 1
11 0434 M16/70 Hex Bolt 1
12 1354 M16 C Washer 1
13 2837M Clamp Nut Small 1
14 1511 M16 P Nyloc Nut 1
15 0832 M24 Washer 1
16 0333 M16/60 Hex Bolt 1
1
11
6
3
7
2
Date Last Modified: 1st April 2014
9
15
13
8
4
5
4
3
10
16
12
14
DISCHARGE
TIMBERWOLF
TW 190TDHB
