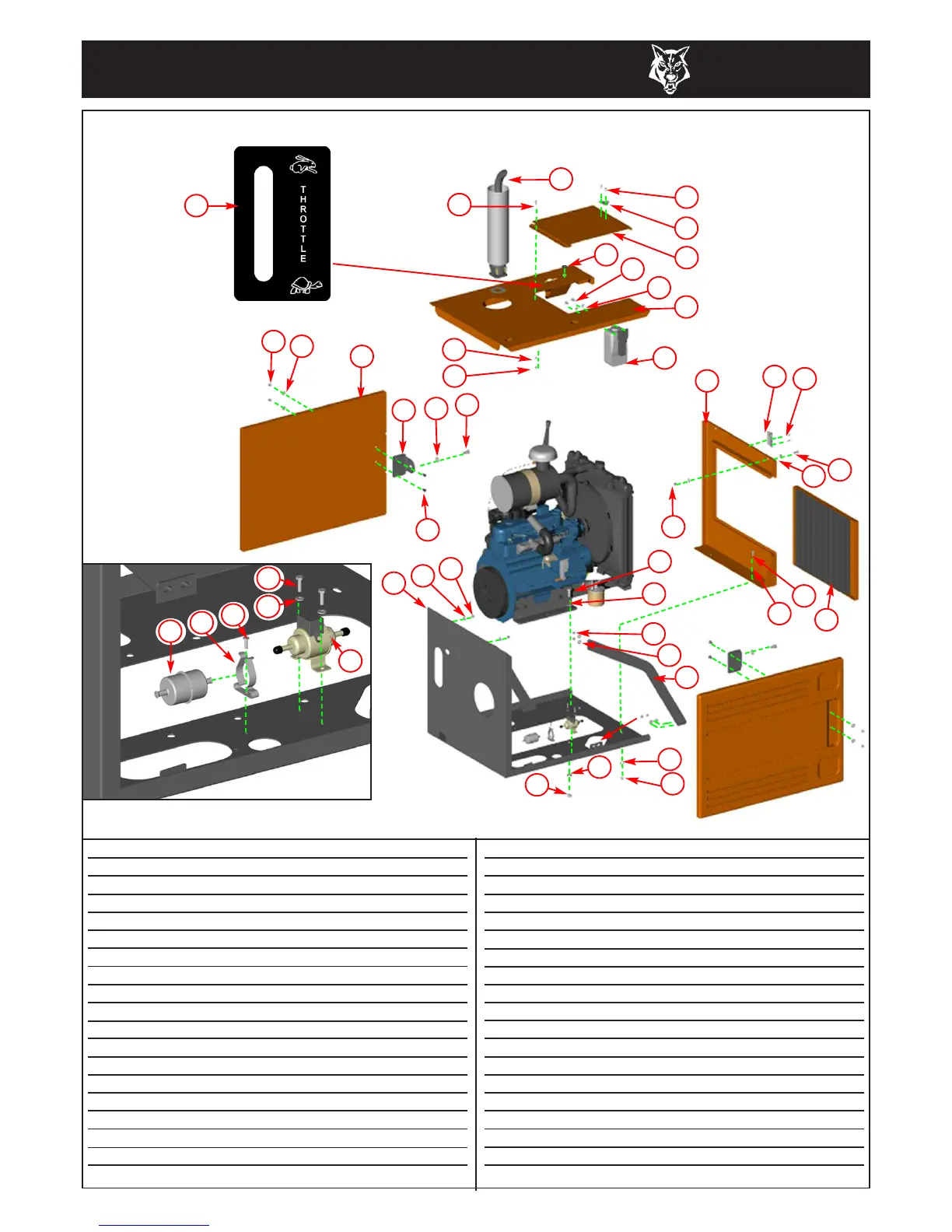

Timberwolf TW190TDHB - Page 44

43
Date Last Modified: 5th Sept 13
Item Part No Part Name Q’ty
1 2950 Throttle Decal 1
2
18327FB Exhaust Muffler Complete 1
3 0344 M8/16 Bolt 2
4 0711 M8 A Washer 2
5 0438 M6/16 Pan Pozi 3
6 0709 M6 C Washer 5
7 0391 M6 T Nyloc Nut 3
8 0066 Pop Rivet 5 x 6 2
9 4088 Catch Plate 1
10 0607FO Access Cover 1
11 4270FO Top Bonnet 1
12 1757 M8 P Nyloc Nut 8
13 0769 M8 C Washer 22
14 0765 Side Panel 2
15 0825FS Side Panel Handle 2
16 0348 M8/20 Skt Csk Bolt 4
17 0704 M12 C Washer 14
18 0318 M12/20 Bolt 2
Item Part No Part Name Q’ty
19 0067 Pop Rivet 4.8 x 12 3
20 18580FO Radiator Shroud 1
21 0235 Catch 1
22 0350 M8/25 Bolt 2
23 0871 In-Line Fuel Filter 1
24 0429 M12/35 Bolt 6
25 0431 M12/40 Bolt 6
26 0481 M8 T Nyloc Nut 10
27 2955FO Engine Base Guard 1
28 1984FS Engine Guard Bracket 2
29 0644 M12 P Nyloc Nut 6
30 4314 Fuel Pump 1
31 0437 M6/16 Bolt 2
32 2851 Clip Fuel Filter 1
33 4253 Domed Blanking Plug 1
34 4320 Reserve Tank 1
35 18581FO Shroud Radiator with Grille 1
36 0346 M8/20 Bolt 2
2
8
9
10
11
1
5
6
7
12
13
14
23
32
40
31
6
30
15
17
18
16
20
21
19
36
13
26
13
28
27
13
12
x2
12
22
13
26
13
24
17
17
29
x2
x6
33
x3
34
35
3
4
ENGINE BAY
TIMBERWOLF
TW 190TDHB
