Timberwolf TW190TDHB - Page 45

44
TIMBERWOLF
TW 190TDHB
Date Last Modified: 21st Feb 2014
2
10
Item Part No Part Name Q’ty
1 2811FB FunnelSupport 1
2 18392K Fuel TankKit (inc. parts 11-12, 16-21) 1
3 P*611 Fuel Cap 1
4 P*613 Breather 1
5 0711 M8 A Washer 2
6 0481 M8 T Nyloc Nut 2
7 0479 M8 P Nyloc Nut 2
8 0712 M8 C Washer 4
9 1989FS Bracket Tank Front 1
10 1990FS Bracket Tank Rear 1
11 0396 3/8 Dowty Washer 1
Item Part No Part Name Q’ty
12 0211 3/8 Drain Plug 1
13 0360 M10/25 Bolt 4
14 0839 M10 CWasher 4
15 0346 M8/20 Bolt 2
16 0152 3/4” Dowty Washer 1
17 2897M Pick Up Weight 1
18 2896 Copper Washer 2
19 0389 8 MM Rubber Pipe 1
20 1992 Tail Hose 2
21 18568 Reducer Bush 1
1
6
5
9
11
12
13
14
15
8
7
19
17
20
20
21
18
16

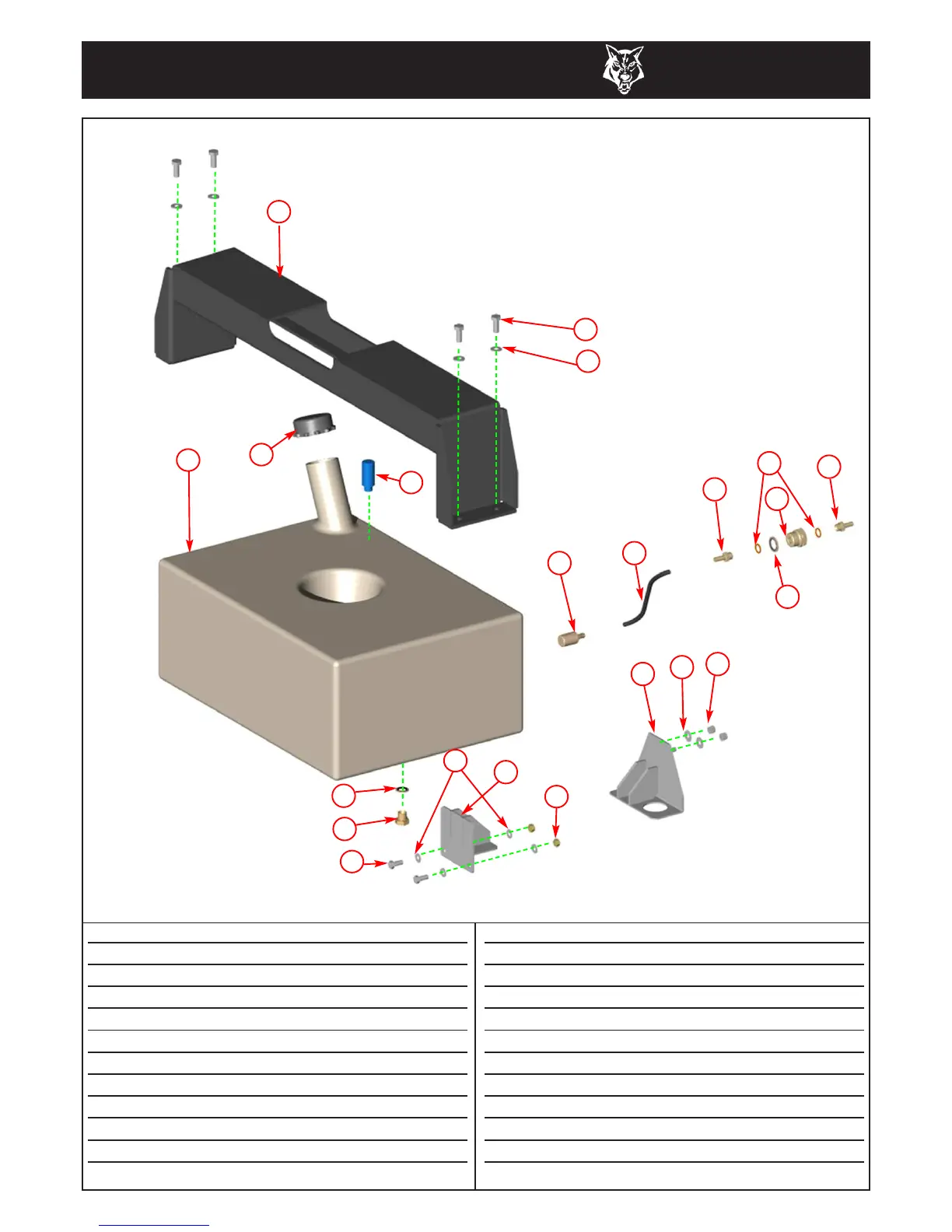

FUEL TANK
