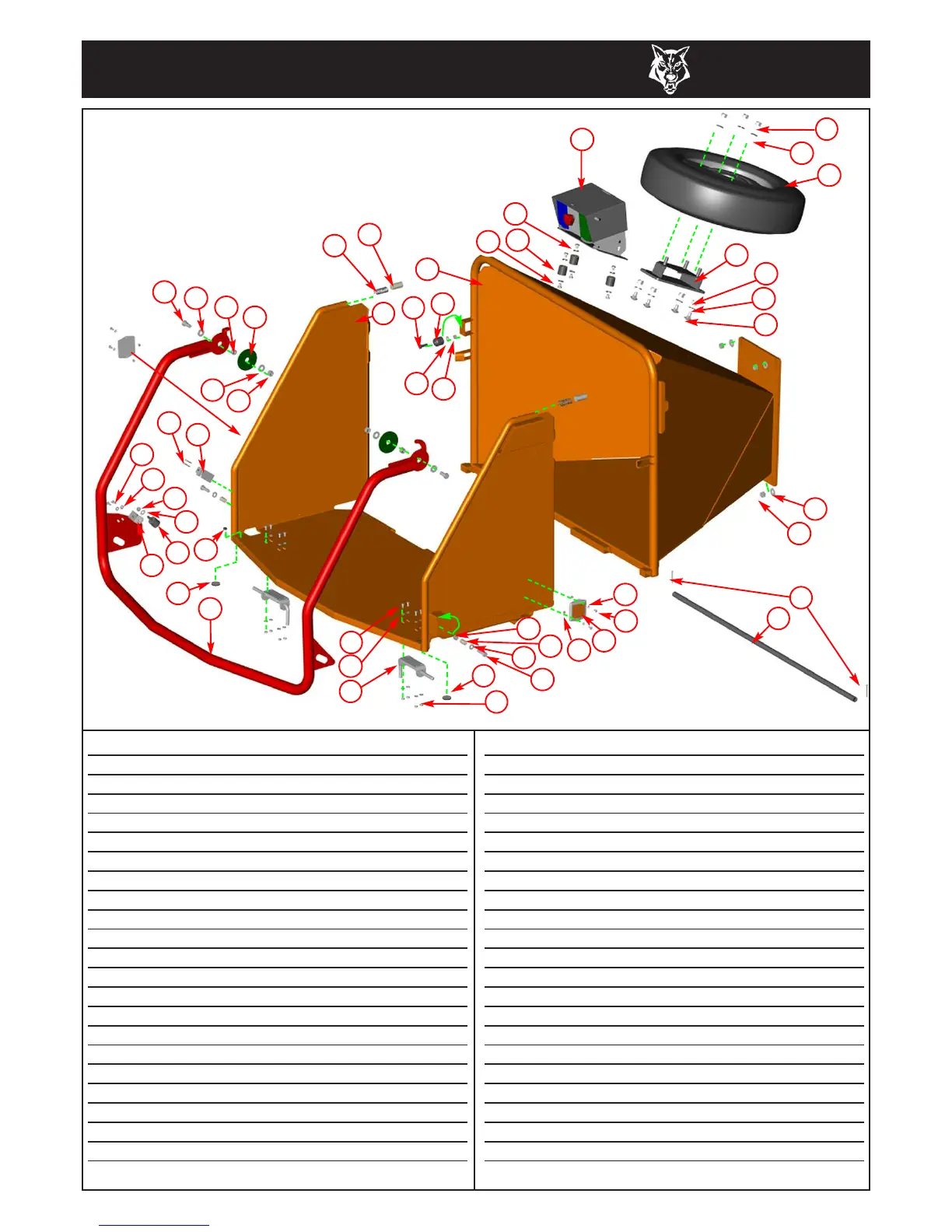

Timberwolf TW190TDHB - Funnel, Hydraulics, and Roller Box Parts

45
Date Last Modified: 26 April 12
2
1
8
11
14
26
15
16
19
29
20
12
18
33
31
24
27
23
25
9
22
10
3
4
5
10
17
7
32
28
31
Item Part No Part Name Q’ty
1 2809F Control Box (detail on page 34) 1
2 1933FS Spare Wheel Bracket 1
3 0045 M12 T Nyloc Nut 6
4 0702 M12 A Washer 4
5 0320 M12/25 Cup Square 4
6 1932 Spare Wheel 1
7 0704 M12 C Washer 11
8 0342 M8/10 Bolt 6
9 1644 M8 Anti-Vibration Mount 3
10 0712 M8 C Washer 8
11 1601 Nylon Piston 2
12 1603 Die Spring 2
13 0644 M12 P Nyloc Nut 3
14 0429 M12/35 Bolt 2
15 1605M Stainless Spacer 2
16 1599 Bearing Washer 2
17 2913FO Funnel 1
18 1348 Limit Switch 1
19 1520 M10/45 Bolt 2
20 1591 Nylon Spacer 2
21 4206 Nylon Bush 1
22 0479 M8 P Nyloc Nut 1
Item Part No Part Name Q’ty
23 2923 Hinge Pin 2
24 2986 1/2” Spring Bolt 2
25 1276 Split Pin 2
26 1598F Safety Bar 1
27 0391 M6 T Nyloc Nut 8
28 4344 M10 C Repair Washer 2
29 0178 Rubber End Stop 1
30 2727 Actuator Bracket 1
31 0437 M6/16 Bolt 10
32 0709 M6 C Washer 10
33 2914FO Feed Tray 1
34 1337 Rubber Cap 2
35 0046 M12 Plain Nut 4
36 18115 M8/50 Csk Soc. 1
37 1006 M4/30 Pan Pozi 2
38 4345 M10 P Nyloc Nut 1
39 2493 Rubber Cap 2
40 18104 M5/12 Pan Pozi 4
41 0857 M5 A Washer 4
42 18924 Square Reflector 2
43 18102 M5 T Nyloc Nut 2
44 0481 M8 T Nyloc Nut 1
6
21
30
7
13
35
7
32
36
7
3
10
44
37
38
39
34
40
41
40
42
43
TIMBERWOLF
TW 190TDHB
FUNNEL
