46
TIMBERWOLF
TW 190TDHB
Date Last Modified: 5th Dec 06
Item Part No Part Name Q’ty
1 1434 Return Filter 1
2 0100 Filter 1
3 0350 M8/25 Bolt 2
4 0711 M8 A Washer 2
5 1658 M6/12 Bolt 8
6 1702FS Tank Top Plate 1
7 0152 3/4” Dowty Seal 2
8 0225 3/8” - 3/4” BSP Adapter 1
9 4243 3/8” Hose, Pump to DCV 1
10 0161 3/8” - 3/8” Adapter 5
11 0396 3/8” Dowty Seal 6
12 4252 Directional Control Valve (DCV) 1
13 1660 Pump 1
14 0026 1/2” - 3/8” BSP Adapter 4
Item Part No Part Name Q’ty
15 0398 1/2” Dowty Washer 5
16 2982B Motor 2
17 2885 3/8” Hose, Top Motor to Btm Motor 1
18 3060 3/8” Hose, Top Motor to DCV 1
19 2973 3/8” Hose, Bottom Motor to DCV 1
20 1583 1/2” - 3/4” BSP Adapter 1
21 2830 3/4” Hose, Hyd Tank to Pump 1
22 4244 3/8” Hose, Hyd Filter to DCV 1
23 1766 3/4” - 3/4” BSP Adapter 1
24 0211 3/8” BSP Blanking Plug 1
25 1703 Hydraulic Oil Tank 1
26 4219 3/4” Tapered Blanking Plug 1
27 1067 Breather Filter 1
1
13
2
4
7
25
8
9
23
24
20
11
10
11
21
3
5
6
26
7
22
15
15
18
14
12
17
19
27
11
10
16
18
19
17
9
21
22

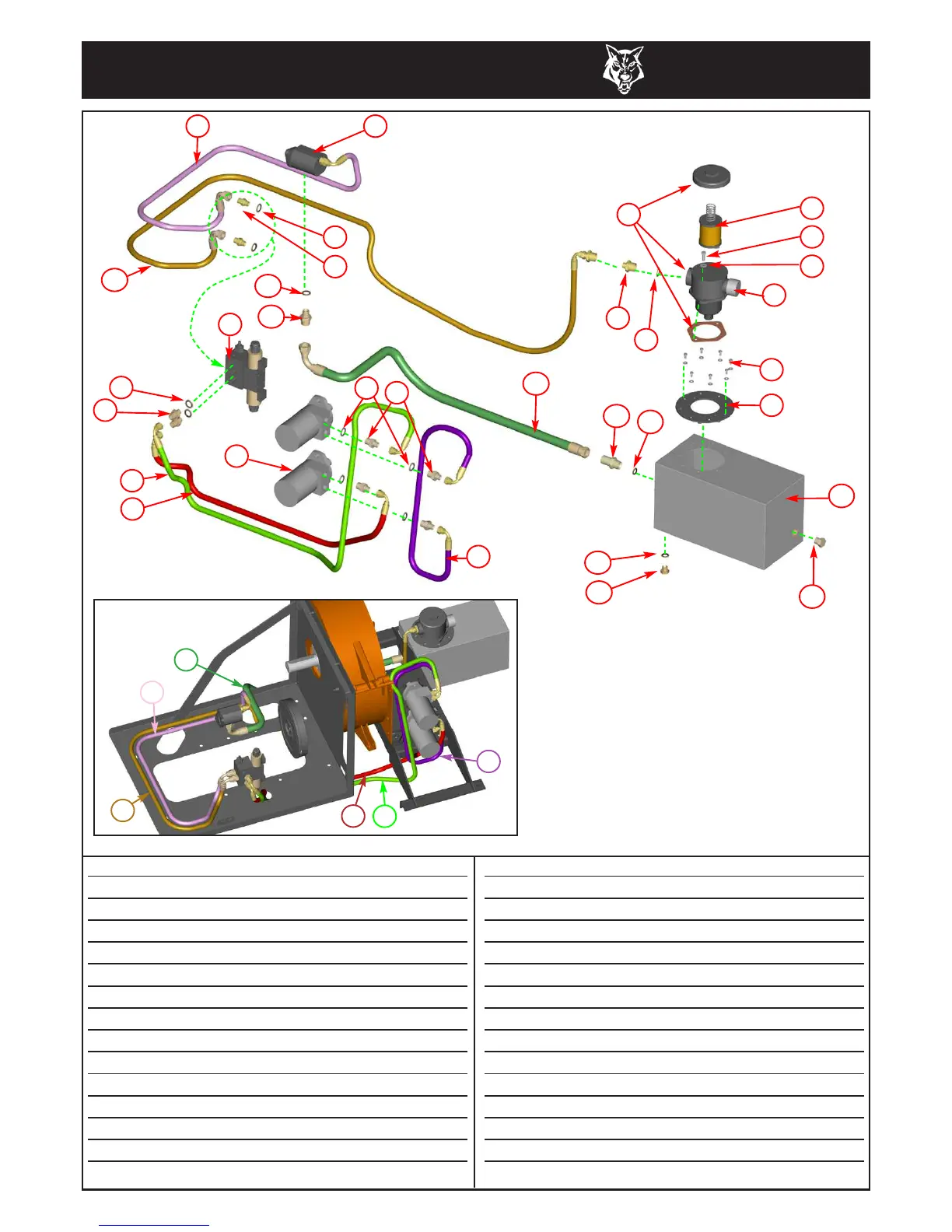

HYDRAULICS
