Timberwolf TW190TDHB - Page 48

TIMBERWOLF
TW 190TDHB
47
4
2
1
6
27
9
28
35
36
15
16
34
11
25
43
45
17
7
3
44
Date Last Modified: 9th Jan 2013
32
37
38
41
19
30
47
2
46
19
x4 Road Tow machines only
12
13
14
31
8
39
40
42
42
33
14
15
17
26
19
22
18
19
20
16
x6
x6
48
49
29
22
23
5
21

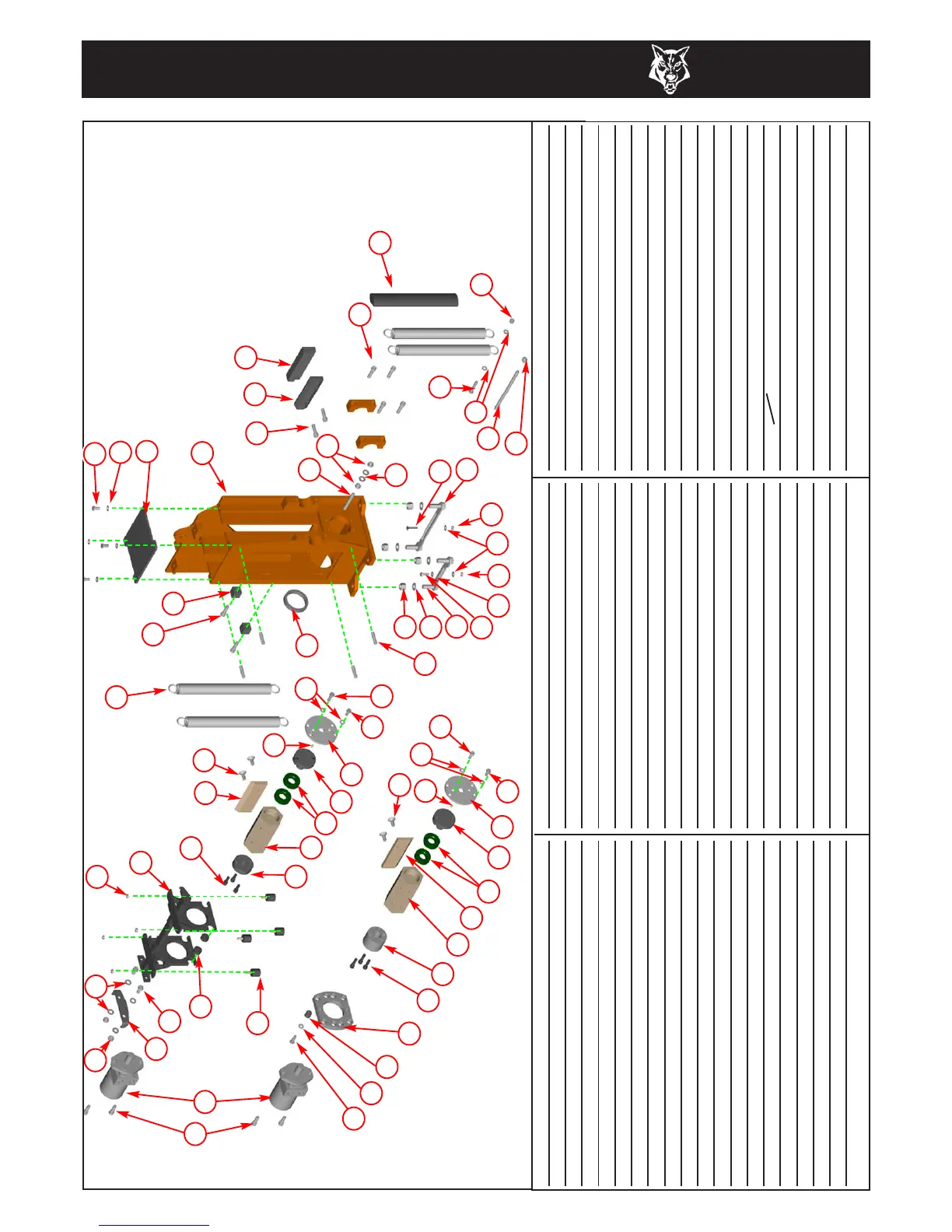

Item Part No Part Name Q’ty 1 0382 M10/30 Bolt 2 2 0701 M10 A Washer 8 3 0052 M10 T Nyloc Nut 2 4 2748FS Short Spring Hanger 1 5 0305 M10/25 Caphead 4 6 P*200 Top Roller Slide Assembly 1 7 0481 M8 T Nyloc Nut 4 8 1526 M12/25 Caphead 2 9 1768 AV Mount 4 10 1812 M10/35 Bolt 8 11 3026 AV Bush Concentric 8 12 3009 Slide Plug 8 13 2732M Adapter Spline 6B 1 14 1947M Roller Hub 190 2 15 1948MH Roller Blade 190 12 16 0428 M12/30 CSK Blade Bolts 24 17 0788 Bearing Plastic Bush 4 18 0986 45
o
Grease Nipple 1
19 0702 M12 A Washer 31
Item Part No Part Name Q’ty 20 0481 M12/30 Bolt 2 21 1525 M10/40 Caphead 3 22 1985 M12/30 Caphead 6 23 2982B Hydraulic Motor 2 24 3025MS Bracket Motor AV Mount 1 25 2731M Adapter Spline 1 26 0985 Straight Grease Nipple 1 27 19052 Spring 4 28 0878 M10/20 Bolt 4 29 4341 M12/150 Threaded Bar 1 30 0045 M12 T Nyloc Nut 4 31 1898M Damper Stop 2 32 18491FO Roller Box 190mm 1 33 2733M Bearing Roller Motor Side 1 34 0046 M12 Plain Nut 4 35 1517 M12/40 Caphead 2 36 4223M Anvil Primary Left Side 1 37 1284 M16 T Nyloc Nut 4
38 1143 M16 A Washer 4
Item Part No Part Name Q’ty 39 2783FS Fitting Bracket Short 4 40 0351 M8/30 Bolt 1 41 4342 M8/30 CSK Screw 1 42 0479 M8 P Nyloc Nut 2 43 0712 M8 C Washer 2 44 18268FS Fitting Bracket Long 1 45 0330 M12/70 Bolt 4 46 4340 M12/50 Caphead 4 47 1840FS Roller Box Top 1 48 0356 Roller Box Stud 4 49 0711 M8 A Washer 1 50 2888 Layflat Spring Protector 4 51 0839 M10 C Washer 8 52 M12/260 Threaded Rod 2 53 4224M Anvil Primary Right Side 1 54 17374P Stub Shaft Profile 2 55 17375M Stub Shaft 2 56 0429 M12/35 Bolt 8
24
51
x8
x8
10
50
x4
{
53
55
54
55
54
56
x2
x4
56
x2
x4
34
x2 Tracked machines only
52
ROLLER BOX
