Timberwolf TW190TDHB - Page 50

49
Item Part No Part Name Q’ty
1 1906FO Guard Roller Box Near Side 1
2 0878 M10/20 Bolt 6
3 0360 M10/25 Bolt 3
4 0839 M10 C Washer 9
5 1907FO Guard Roller Box Off Side 1
6 0052 M10 T Nyloc Nut 2
7 0701 M10 A Washer 2
8 4066 Gas Spring Compression 1
9 0528 Split Pin 1
10 1943M Pin Hinge 180 mm 1
11 18443FO Rotor Housing Opening 1
12 2978S M16 Flange Nut 2
Item Part No Part Name Q’ty
13 0178 Rubber End Stop 1
14 0479 M8 P Nyloc Nut 1
15 0712 M8 C Washer 2
16 1691FS Switch Back Plate 1
17 1868 M8 AV Mount 2
18 0711 M8 A Washer 4
19 1721 M8/10 Bolt 4
20 1348 Limit Switch 1
21 18168 M4/35 Pan Pozi 2
22 18442FO Rotor Housing Fixed 1
23 2819FS Fitting Bracket 1
7
1
2
5
6
3
2
Date Last Modified: 5th Dec 2013
8
10
11
9
18
19
23
22
3
4
12
13
17
14
15
16
21
20

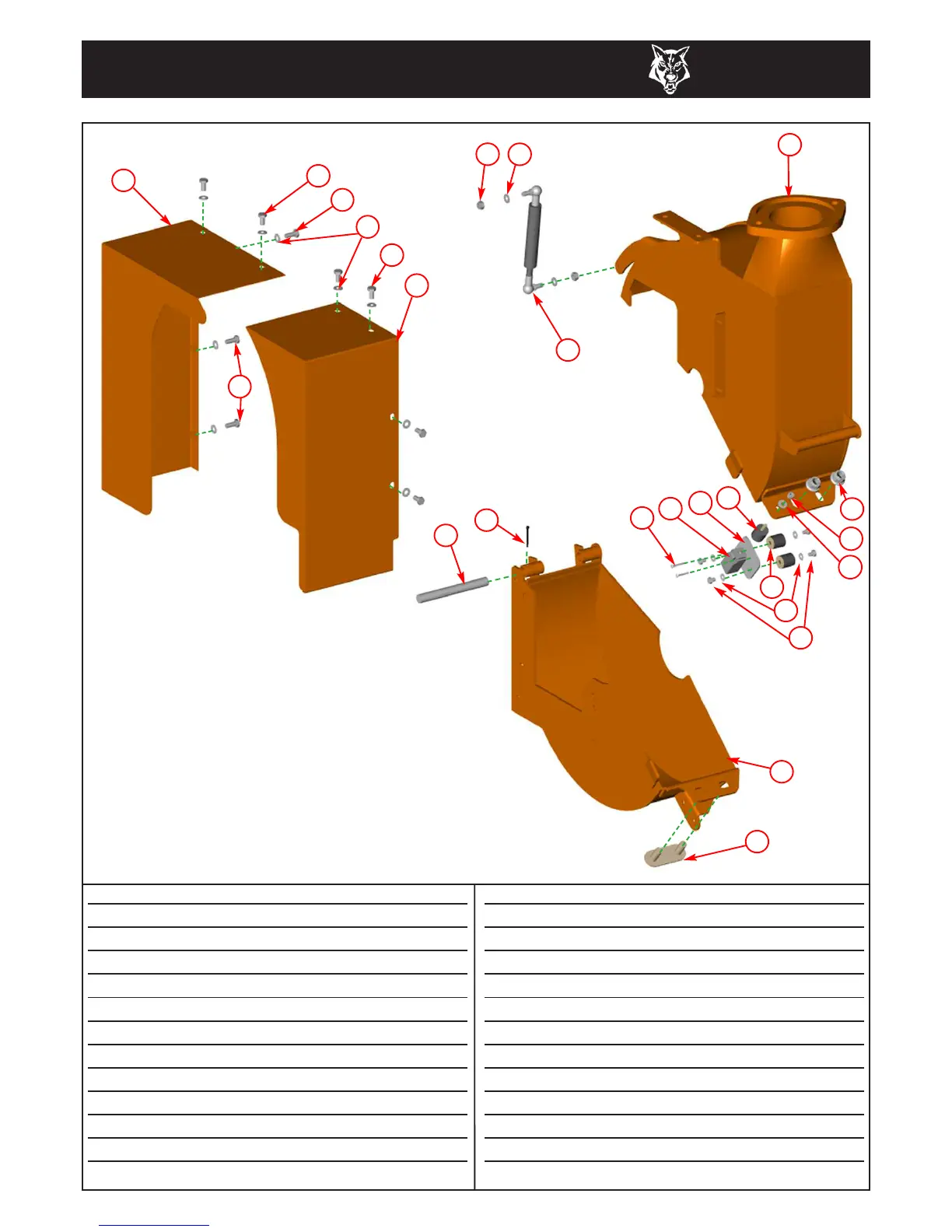

ROTOR HOUSING
TIMBERWOLF
TW 190TDHB
