Time TV-300 - Configuration; Description of Components

3.1. D
ESCRIPTION OF COMPONENTS

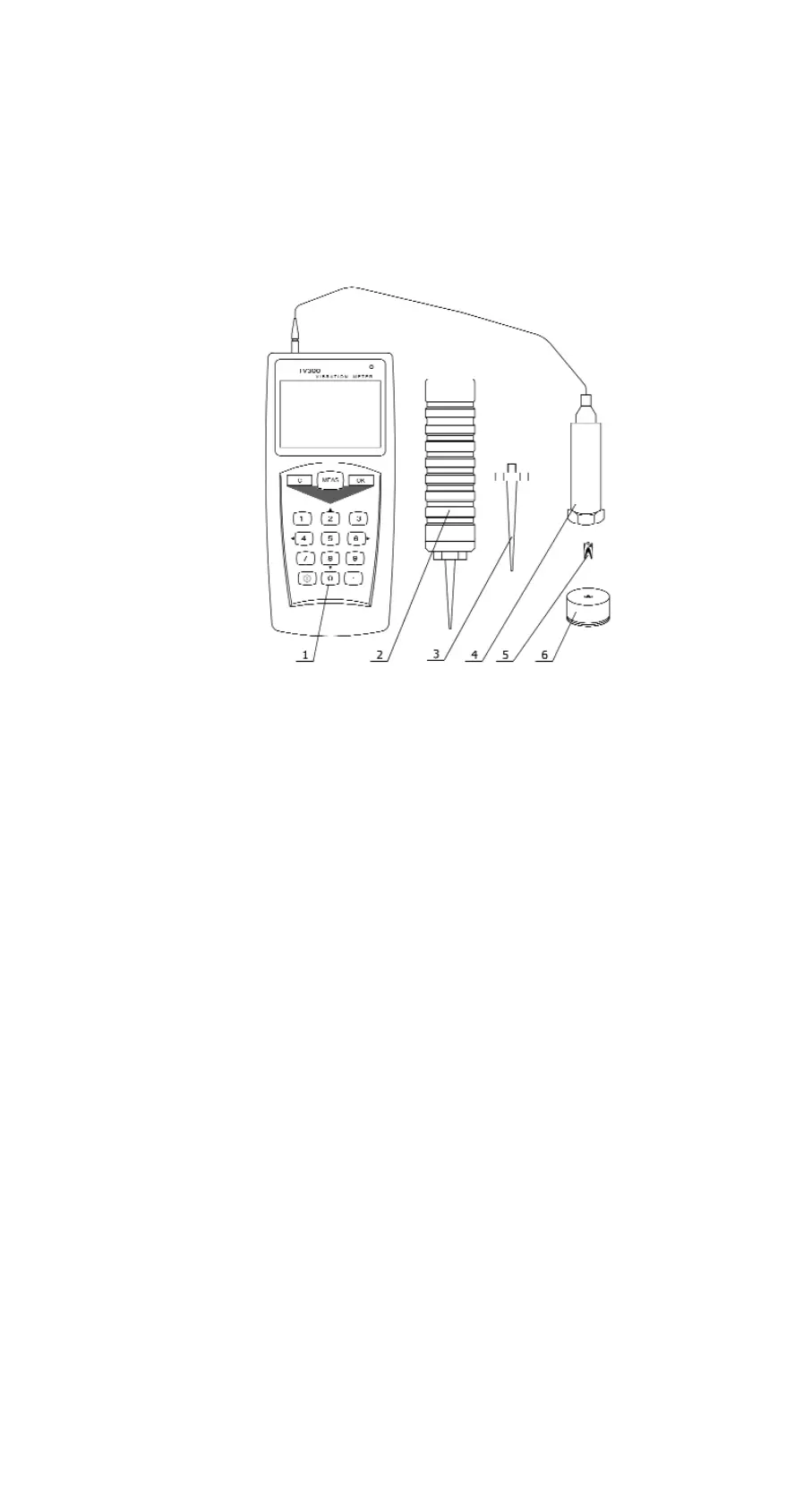

Figure 3-1
1 Main body
2 Probe groupware
3 Long needle
4 Vibration transducer
5 Bolt
6 Magnetic base
According to different situations, the transducers maybe fixed in the probe groupware
or connected to the magnetic base (see chapter 4 in detail.).
Manual TV-300 5
3CONFIGURATION
