6 7

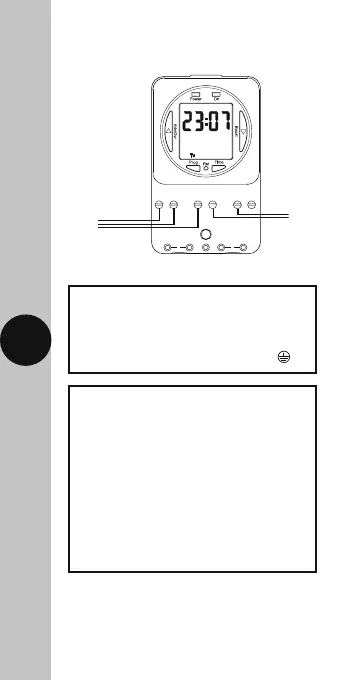

230V 50Hz Mains Supply
Live (Brown or Red) to L
Neutral (Blue or Black) to N
Earth (Green/Yellow) to
Load
Remove the ‘Link’ or ‘Bridge’
from between L & 1
Live input (for voltage free output) to 1
Switch Live (for low voltage
appliance) to either;
Normally OPEN to mains voltage
appliance e.g. Immersion Heater 2
Normally CLOSED to mains voltage
appliance e.g. Fan 3
Voltage Free Switching –
e.g. 24V circuit
EN L1 23
Link or ‘bridge wire’
230V 50Hz
Mains Supply
230V 50Hz
Mains Supply
EN L1 23
LoadLoad
Note: this device needs to be left to charge for
a minimum of 15 minutes once powered up,
before it will operate.
