Titan Implement 7000 Series - Assembly; Assembly Procedure

Titan Implement, LLC 17 7000 Series Disc Harrows
(423) 334-0012 January 2022
4. Assembly
4.1 Assembly Procedure

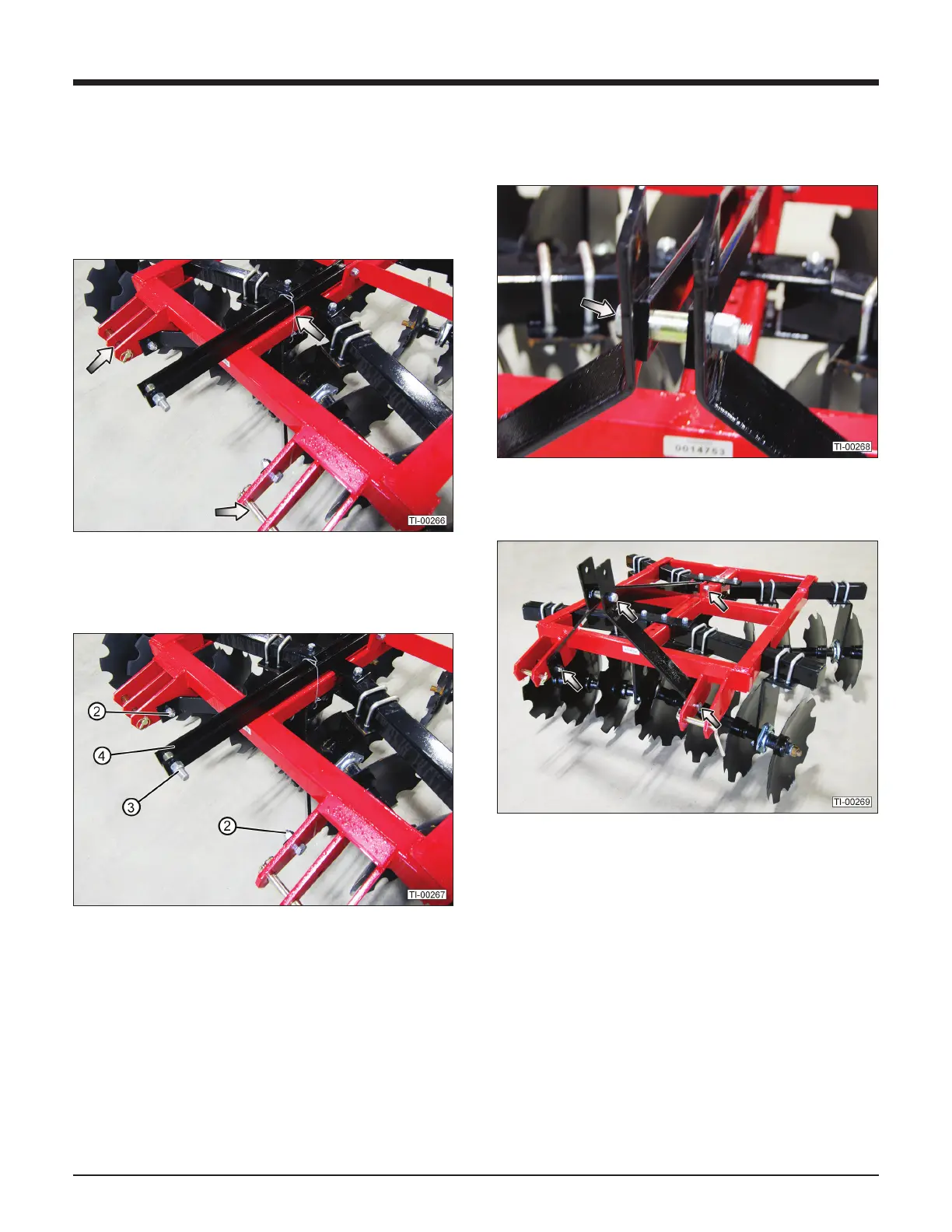

The disc harrow ships with the A-frame folded down for
shipping purposes. It must be erected before use.
1. Cut the wires holding the back brace and A-frame to
the disc harrow frame. Remove the hitch pins from
the frame.
2. Using a 1-1/8” wrench, loosen rear back brace bolt
(1) and lower A-frame bolts (2). Remove front bolt
(3) and spacer (4) from the back brace.
3. Rotate the A-frame halves to an upright position.
Assemble the back brace, bolt, and spacer on the
inside of the A-frame. Make sure to install the bolt
in the lower A-frame holes.
4. Tighten the A-frame and back brace bolts securely.
Reinstall the hitch pins.
