TD80™ Level Gauging and Overfill Prevention System Product Manual
Page 150 TD80 Programming/ Rev. 2, August 4, 2015
6.3.5.3 Connecting the TD80 for Programming on a vehicle
with a Finch 5332E/PS Display (red board)
Connection Instructions:
See Figure 6-5 and Figure 6-6 for details.
Ensure that the power supply or battery voltage is turned off. Unplug the AC power
adapter from the outlet if it is being used for programming.
Verify that the area is free of explosive fumes
1. Connect port “A” to the SVBus Converter.
2. The alligator clips are not needed. If they are still connected, remove them by
disconnecting contact “B”
3. Remove the far left hand side terminal block (programming) from the red terminal
board.
4. Connect contact “C” to the programming block on the red terminal board.
5. Connect the SVBus converter to the PC USB port.
6. Connect the AC power adapter to the SVBus converter if required. Caution, do
not connect the AC power adapter if using a battery or other source of power.
7. Apply operating power when prompted by the Birdfeeder program.

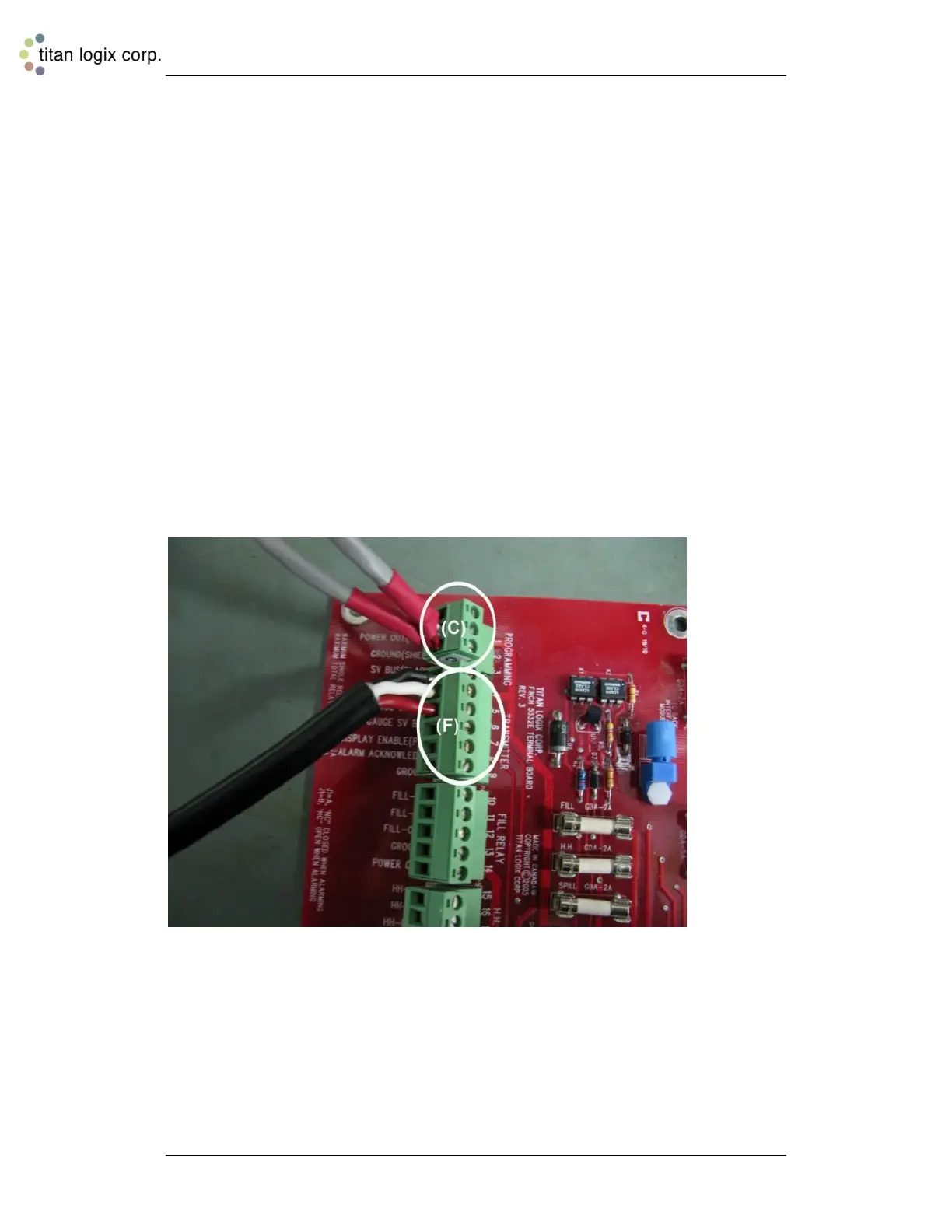

Figure 6-5: Connecting the TD80 for Programming on a vehicle with a Finch
5332E/PS Display (red board)
To Next Page
