TD80™ Level Gauging and Overfill Prevention System Product Manual
Page 26 TD80 Installation/ Rev. 2, August 4, 2015
TPM 001
2.3.3 Mounting the Top Fitting
It is recommended to use the Titan supplied 1” NPT top fitting. Alternative fittings must
not be longer than 1 ½”. Fittings exceeding 1 ½” in length with an internal diameter of
less than 4” interfere with the RADAR signal and prevent the TD80 transmitter from
measuring the liquid level or cause false level alarms.
Ensure that the probe hangs vertically in the tank, within 3 degrees of vertical. Tanks with
curved tops may require a leveling piece to meet the required vertical position.

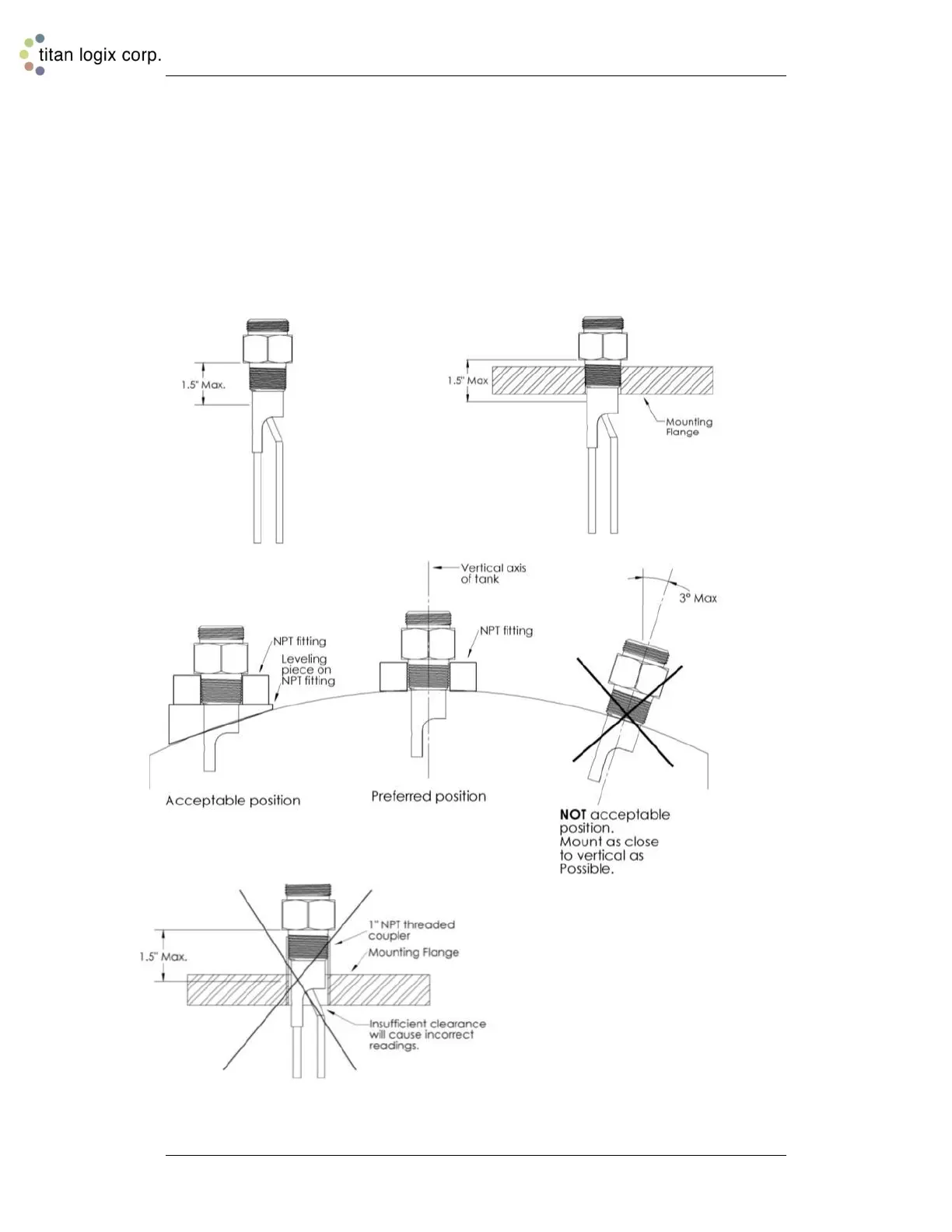

Figure 2-4: Locating the Top Fitting
No Mounting
Hardware Should
Extend Beyond 1½”
Below the Nut on the
Probe
