TD80™ Level Gauging and Overfill Prevention System Product Manual
Page 52 TD80 Installation/ Rev. 2, August 4, 2015
TPM 001

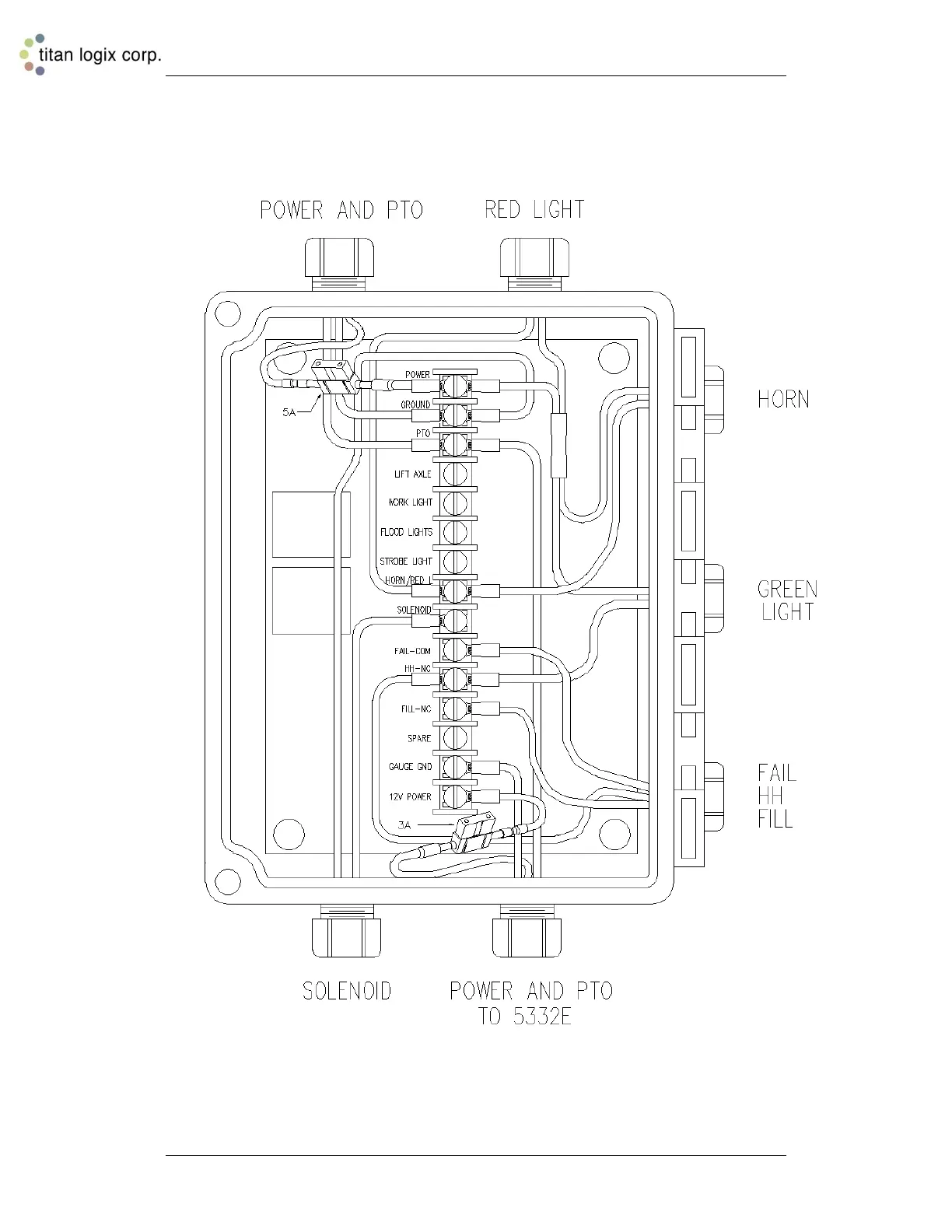

Figure 2-20: Finch Relay Module Internal Wiring Diagram
