Titan 100 - Proper use and functions; Controls and Functions

English
5
Proper use
and functions
Start

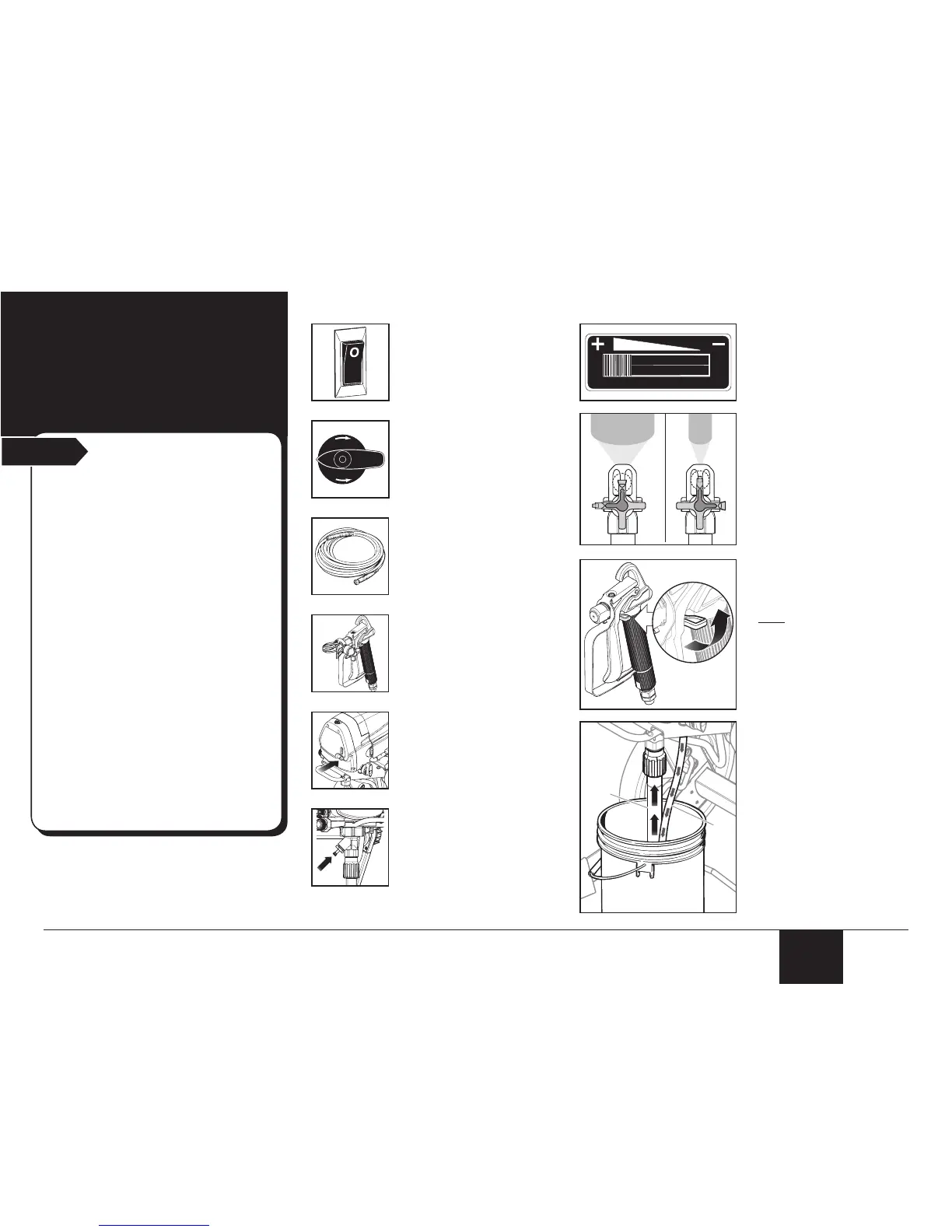

Controls and Functions
ON/OFF switch:
The ON/OFF switch turns power
to sprayer on and off.
(O=OFF, |=ON)
PRIME/SPRAY knob:
The PRIME/SPRAY knob directs
material to the material return
tube when set to PRIME or to
spray hose when set to SPRAY.
PressureTrac:
The PressureTrac™ regulates
the amount of force the pump
uses to push the uid and can
be adjusted for desired spray
pattern.
TR
2
spray tip:
The TR
2
spray tip can be
adjusted based on your spraying
needs.
Trigger lock:
Engage the trigger lock whenever
the gun is not in use.
LX-50 - The gun is locked
when the trigger lock is at a
90º angle (perpendicular to the
trigger in either direction).
Suction tube (a):
The suction tube draws the uid
from the original container into
the pump.
Material return tube (b):
Fluid is sent out through the
return tube and back into the
original container when the
PRIME/SPRAY knob is in the
PRIME position.
Spray hose:
The spray hose connects the
spray gun to the pump.
Spray gun:
The spray gun controls the
delivery of the material being
pumped.
AutoOiler (200 only):
The AutoOiler is designed to
provide lubrication to the uid
section of the pump.
Sureflo Valve:
The Sureo Valve is designed
to keep the inlet valve open and
from sticking to dried materials.
The Sureo Valve is activated
manually by the user.
Sprays a variety of paints (oil-based and
latex), primers, stains, preservatives and other
nonabrasive materials.
Do not use!
This pump should not be used with textured
materials, block ller, asphalt sealer or
materials containing HHC. See coating supplier
if ash point is not listed on the container
Safety features:
Spray gun trigger lock and pressure diffuser;
built-in tip safety guard; PRIME/SPRAY knob
for safe pressure release. Conforms to UL STD
1450. Certied to CAN/CSAC 22.2 NO 68-92
Specifications:
Capacity:
100............. Up to .29 gallon (1.1 liter) / min
200............. Up to .33 gallon (1.25 liter) / min
Power source:
100............. 1/2 Hp universal motor
200............. 5/8 Hp universal motor
Power requirement: 15 amp minimum circuit
on 115 VAC, 60 Hz current
Generator power requirement: 8000 Watt
Capability:
(a)
(b)
l
SPRAY
PRIME
LX-50
WIDE
NARROW
