Titan MAX - Operating Instructions; 6.1. Structure; 6.2. Functional principle

MAX 29 / 63
1
2
4
5
3

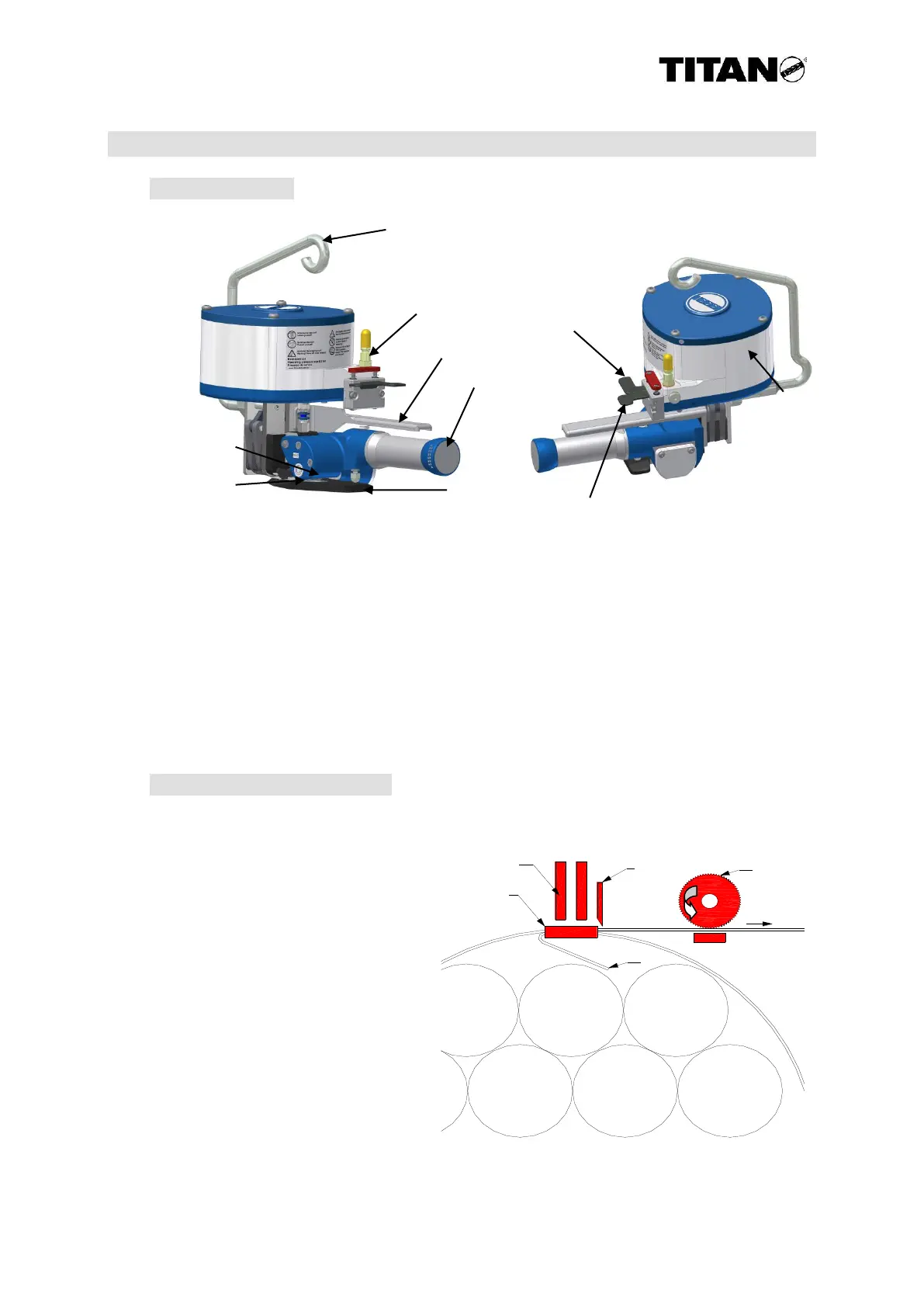

6. Operating Instructions
6.1. Structure
7 Compressed air port nipple
130 Tension element
131
300
49 Lifting lever
507 Suspension
79 Tension lever
80 Locking lever
129 Guide plate
41/132 Transport wheel
28 Compressed air motor
502 Cylinder
6.2. Functional principle
1. Manually lead band through
the sleeve,
2. Bend beginning of band,
3. Tension by means of
transport wheel,
4. Lock by notching the sleeve,
5. Cutting the band fed
H 265 EU 27/11
507
7
300
130
131
49
129
41/132
28
79
80
502
