Titan TTB579PLN User Manual

Product functions
TTB579PLN by TITAN
26
In more detail…
GB
IE
Fig. 29 Fig. 30
Fig. 28

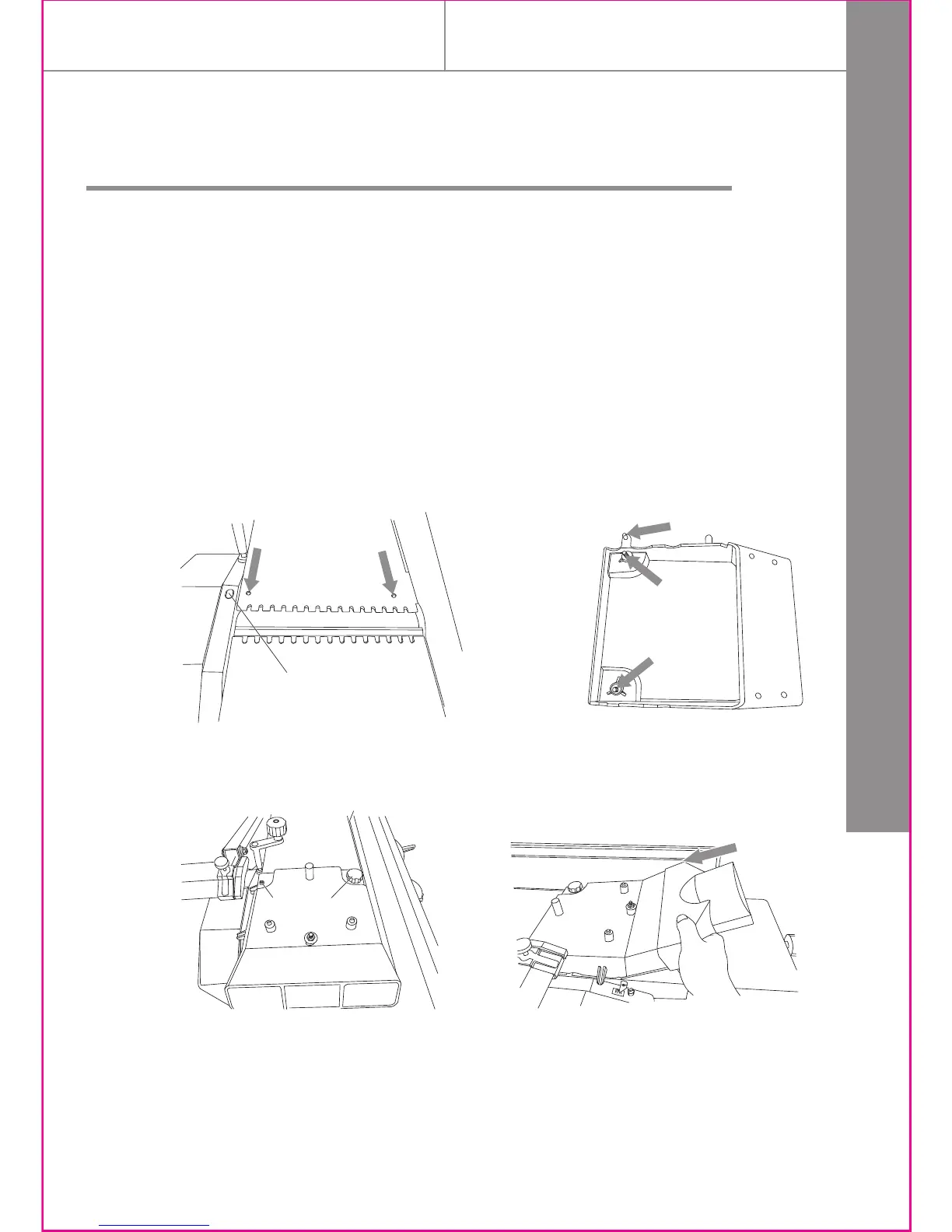

2) Fitting the extraction port
There are 2 holes on the out-feed table of the planer, 1 x un-threaded hole (e) for
locating the extraction port, and 1 x threaded hole (f) for securing the extraction
port as shown in Fig. 27.
These holes work in conjunction with the fixings on the extraction port.
> Insert the locating screw (g) on the extractor port into the locating pin hole (e)
on the out-feed table, then tighten the hexagon screw (35) with 5mm hex key.
> Insert the locating screw (h) on the extractor port into the location pin hole (f)
on the out-feed table, then tighten the locking knob (36).
> Ensure tab (i) sits over the machines 2nd interlock safety switch (37). You will
hear the switch click as the securing screw is tightened.
> Slide the extraction port adapter (7) over the extractor port. (Fig. 30)
Fig. 27
e
f
37
i
g
h
35
36
0
1
2
3
