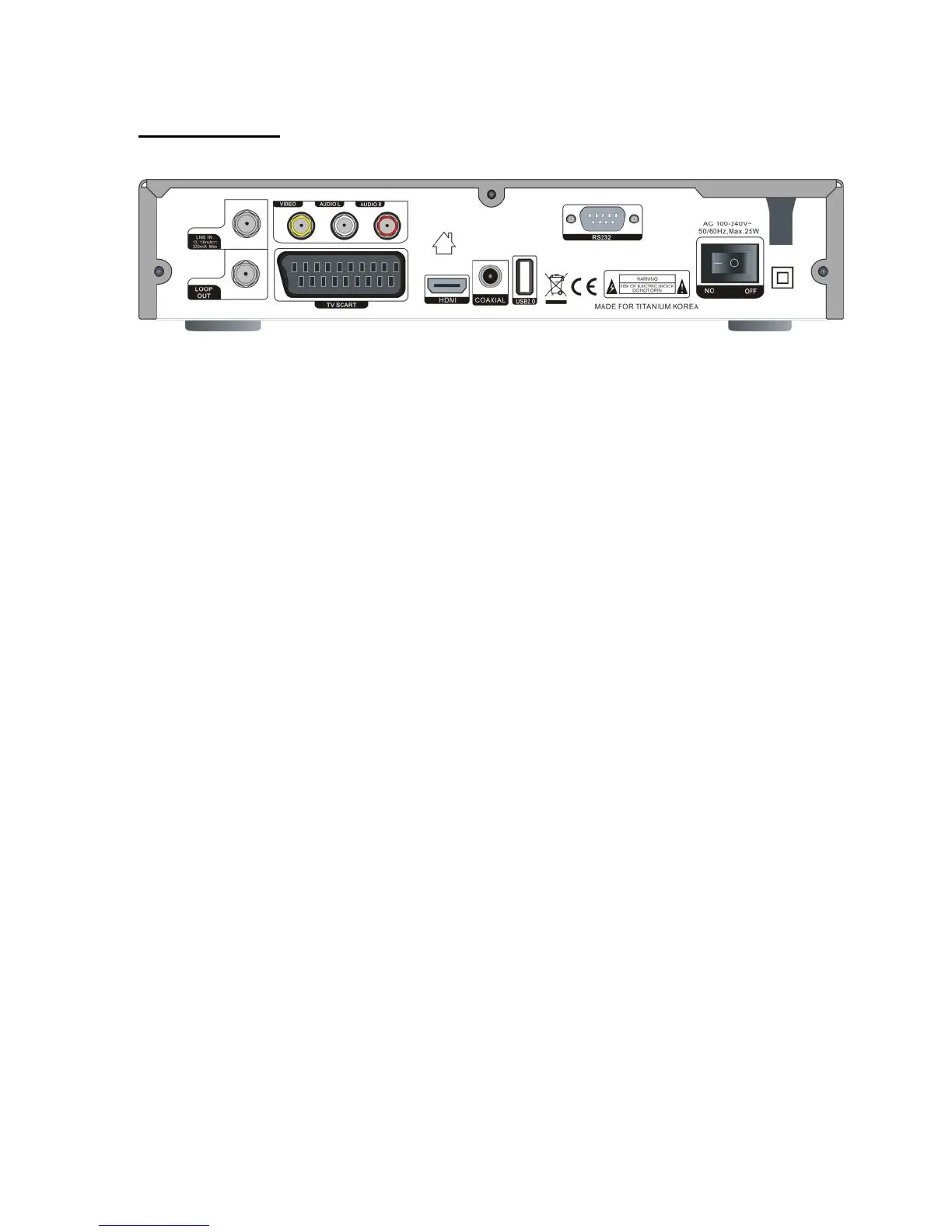

2.2 Rear Panel
1. LNB IN 13/18V 500mA Max
Connect the Satellite Dish LNB.
2. LNB OUT
Output the Dish LNB IN signal.
3. VIDEO/AUDIO
RCA output for CVBS format.
4. DV-OUT
HDMI signal output
5. USB
USB 2.0 Host Port.
6. COAXIAL
Digital Audio output
7. RS-232
Connect to serial port of PC for software upgrade.
8. Power Switch
To Turn ON or OFF the main power of this STB.
