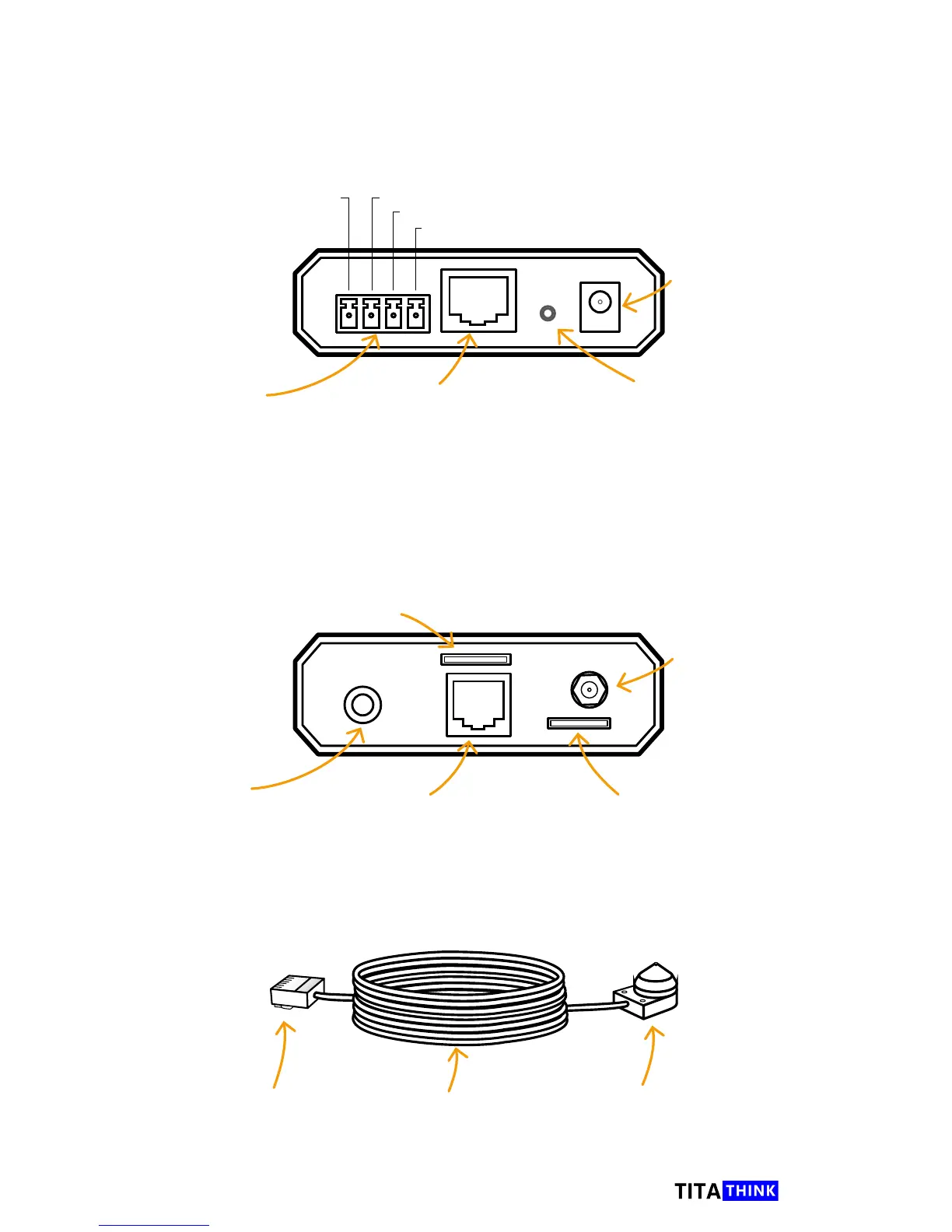

Main Unit
General I/O
You can connect external
alarm devices to this port.
Such as PIR senor, Gas
detector and etc.
RJ45 LAN Port
Ethernet cable port for
setting up the camrea
or to stay connected via
cable(LAN or POE mode)
Notice: Don't plug the
Sensor Unit cable into
this port
WPS/Reset button
Short press this button to
easily connect with your
WPS compatible Wi-Fi
Router.
Long press(More than 10
sec) to reset the camera.
Front
Rear
Power cable
socket
RCA Audio Line-In
Port
You can connect external
Sound pick-up for sound
monitoring
RJ11 CAM Port
Plug the Sensor Unit
cable into this port
MicroSD Card slot
Max support 128G Class10
MicroSD memory card
Wi-Fi antenna
Port socket
Sensor Unit
720P Mini Pinhole camera
Small size: Φ 0.74 x 1 inches
6 meters(20ft) cable
Providing exibility to place
the sensor unit in one area
RJ11 Connector
Plug this connector to
Main Unit CAM Port
Power
DO
DI
GND
SIM CARD slot
Just for TT520G, TT521G, TT522G 3G Spy camera
