Installation Manual-DISPLACEMENT VENTILATION DIFFUSERS
Redefine your comfort zone. ™ | www.titus-hvac.com

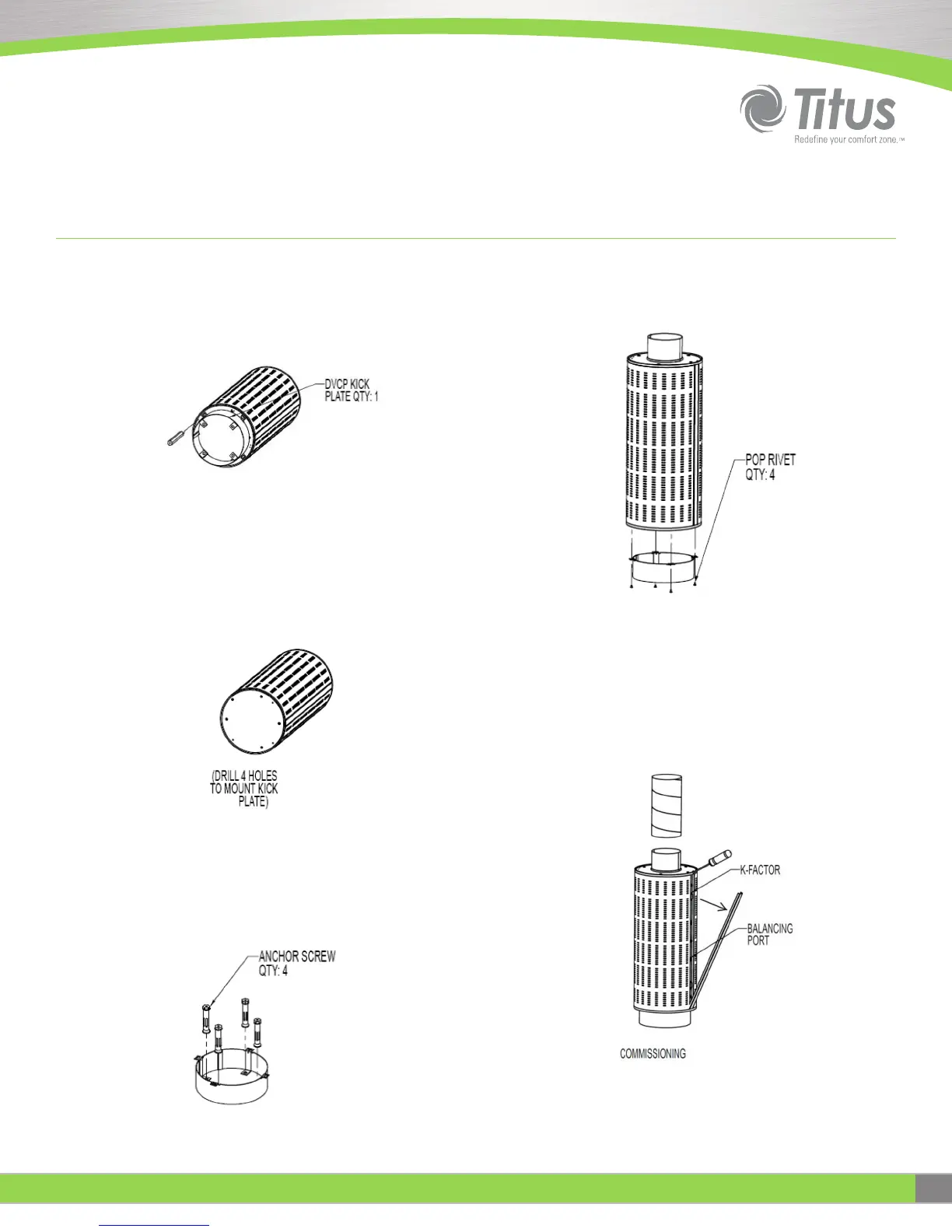

DVCP Installation
STEP 1
Mark the positions to drill the 4 holes on the bottom plate of the unit.
STEP 2
Drill holes to mount the mounting base.
STEP 3
Install mounting base to the floor using anchor screws.
STEP 4
Install the unit onto the mounting base using pop rivets.
Commissioning (Balancing): The balancing port is positioned on the side
behind the decor strip. The K-factor of the unit is stated on the K-factor
label mounted on one of the side of the balancing port. The k-factor can
also be found on our website in the relevant k-factor guide. See Figure 5
Figure 1
Figure 3
Figure 2
Figure 4
Figure 5
