Installation Manual-DISPLACEMENT VENTILATION DIFFUSERS
Redefine your comfort zone. ™ | www.titus-hvac.com
DVCP Duct Cover Installation (continued)
STEP 1
Mount the duct cover bottom on the top of the unit.
STEP 2
Mount the duct cover support assembly on the top of the unit. Align the
holes on the flange of the duct cover bottom and the duct cover support
assembly and cut the support according to the ceiling height keeping
2” distance between the ceiling and the top of the duct covert support
assembly. Align the duct cover top with the three holes on the support
assembly and rivet the duct cover top with the duct cover support assembly
in 2 places.

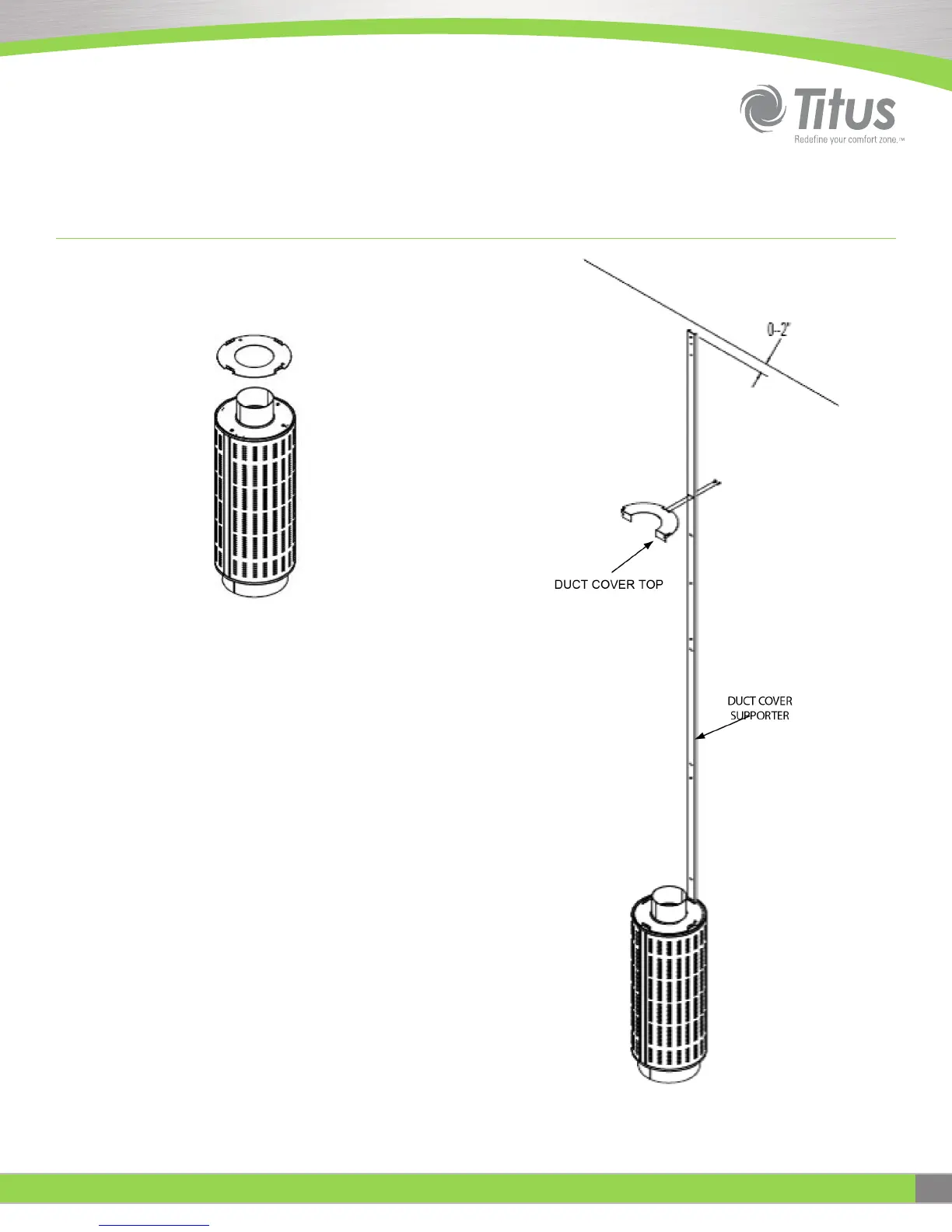

Figure 1
Figure 2
