DVRI Installation
STEP 1
Drill the holes and install the mounting base into place using screws.
STEP 2
In Wall Mounting - Install the four Angle brackets on the top of the unit
using screws. (You may need to cut the angle strips to match the overall
dimensions of the unit.) Install the unit into the wooden frame and screw
to the sides. Install angle strips from the sides to the front of the unit
using screws.

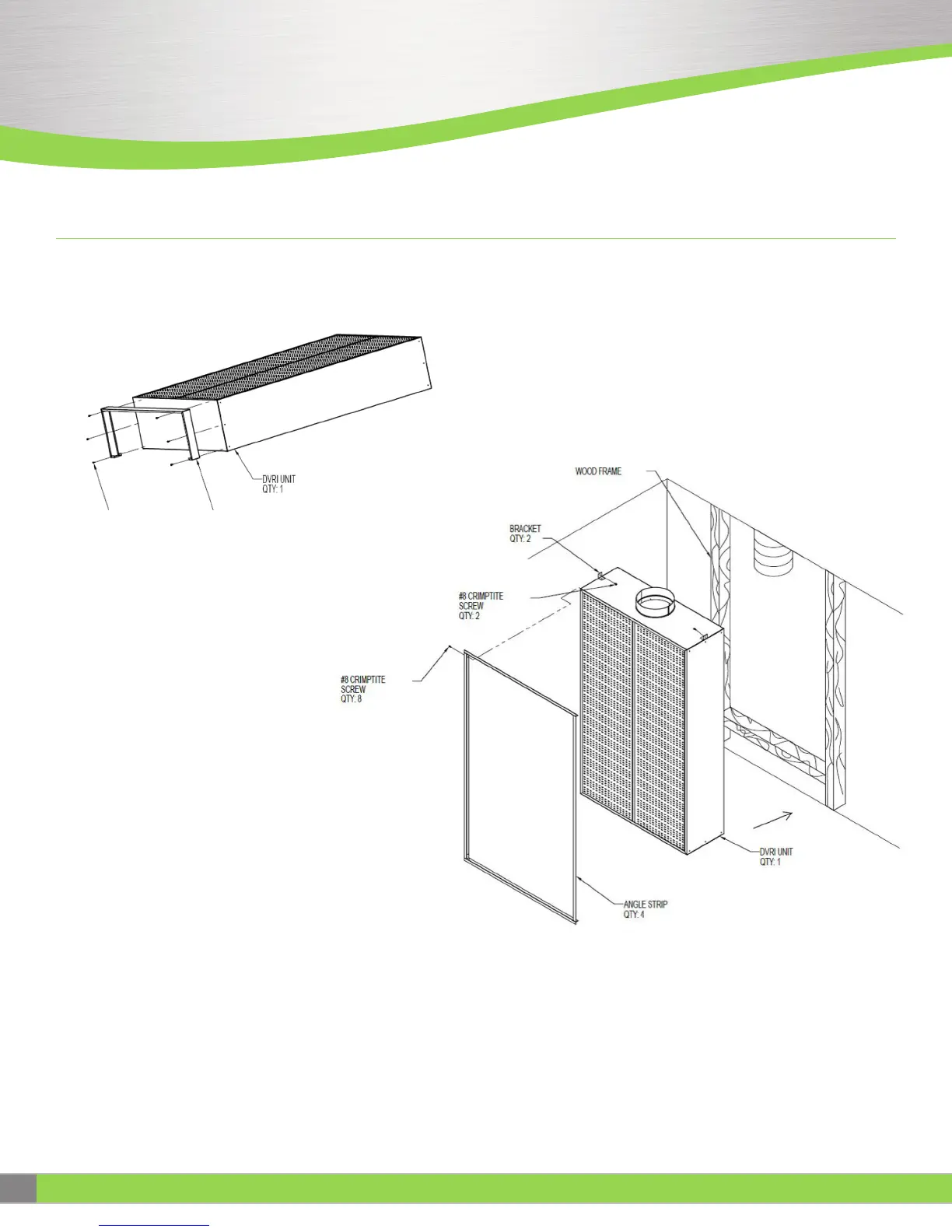

Figure 1
Figure 2
