DVRI Installation (continued)
STEP 3
Floor Mounting - Using Angle Strips screw the unit to the wall from the top
and the sides. (You may need to cut the angle strips to match the overall
dimensions of the unit.)
STEP 4
Mounting against the wall - Using Angle Strips screw the unit against the
wall from the top and the bottom. (You may need to cut the angle strips to
match the overall dimensions of the unit.)

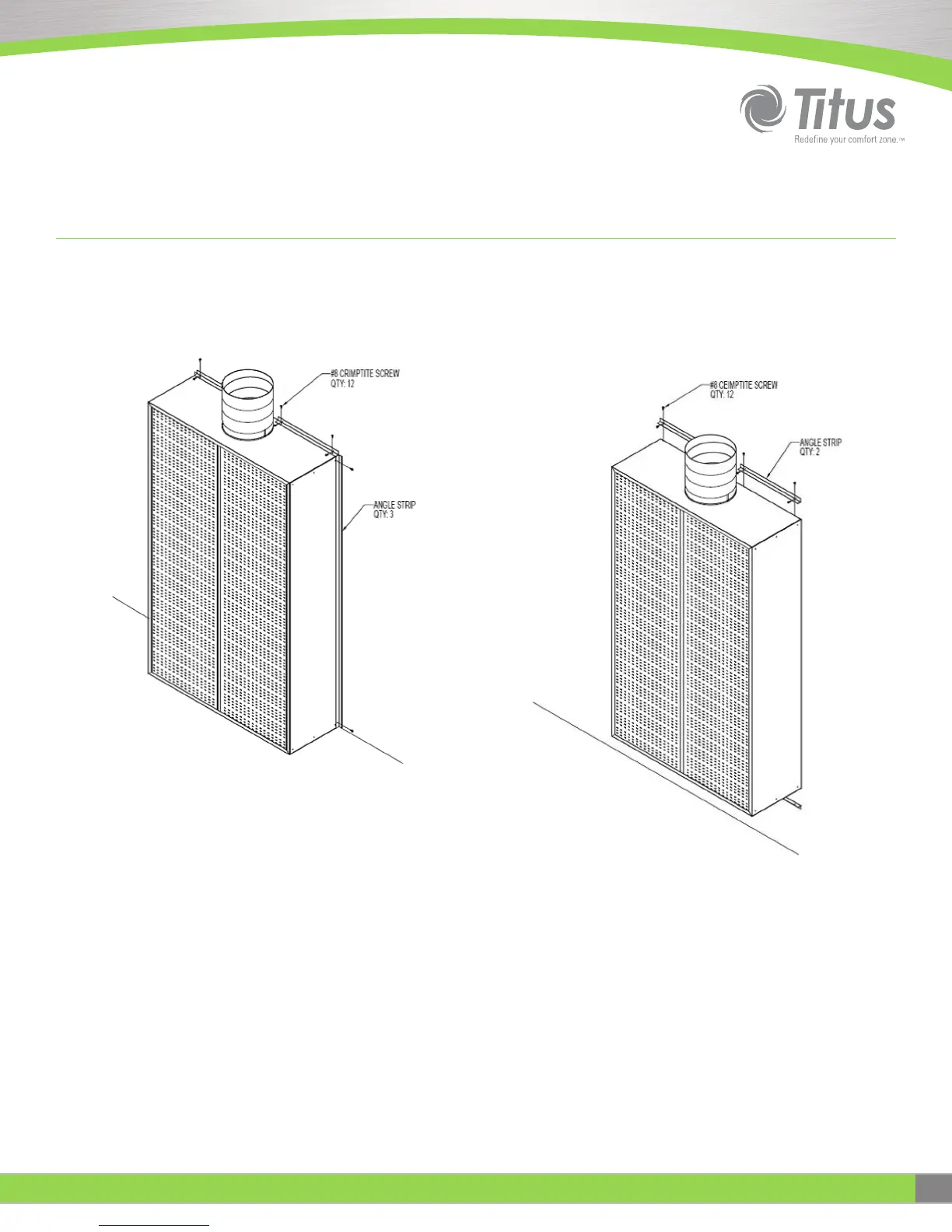

Figure 3
Figure 4
