Installation Manual-DISPLACEMENT VENTILATION DIFFUSERS
Redefine your comfort zone. ™ | www.titus-hvac.com
IOM
DVCP / DVVC / DVHC
DVBC / DVRI / DVIR
DVRI Installation (continued)
Commissioning (Balancing): Uninstall the front cover for maintenance.
For Size < 10 the balancing port is positioned on the side of the unit behind
the white plug and For Size > 12 the balancing port is positioned in the
center behind the decor strip. The K-factor of the unit is stated on K-factor
label mounted on long bracket behind the front cover for Size < 10 and on
one of the side of the balancing port for Size > 12. The k-factor can also be
found on our website in the relevant k-factor guide. See Figure 6

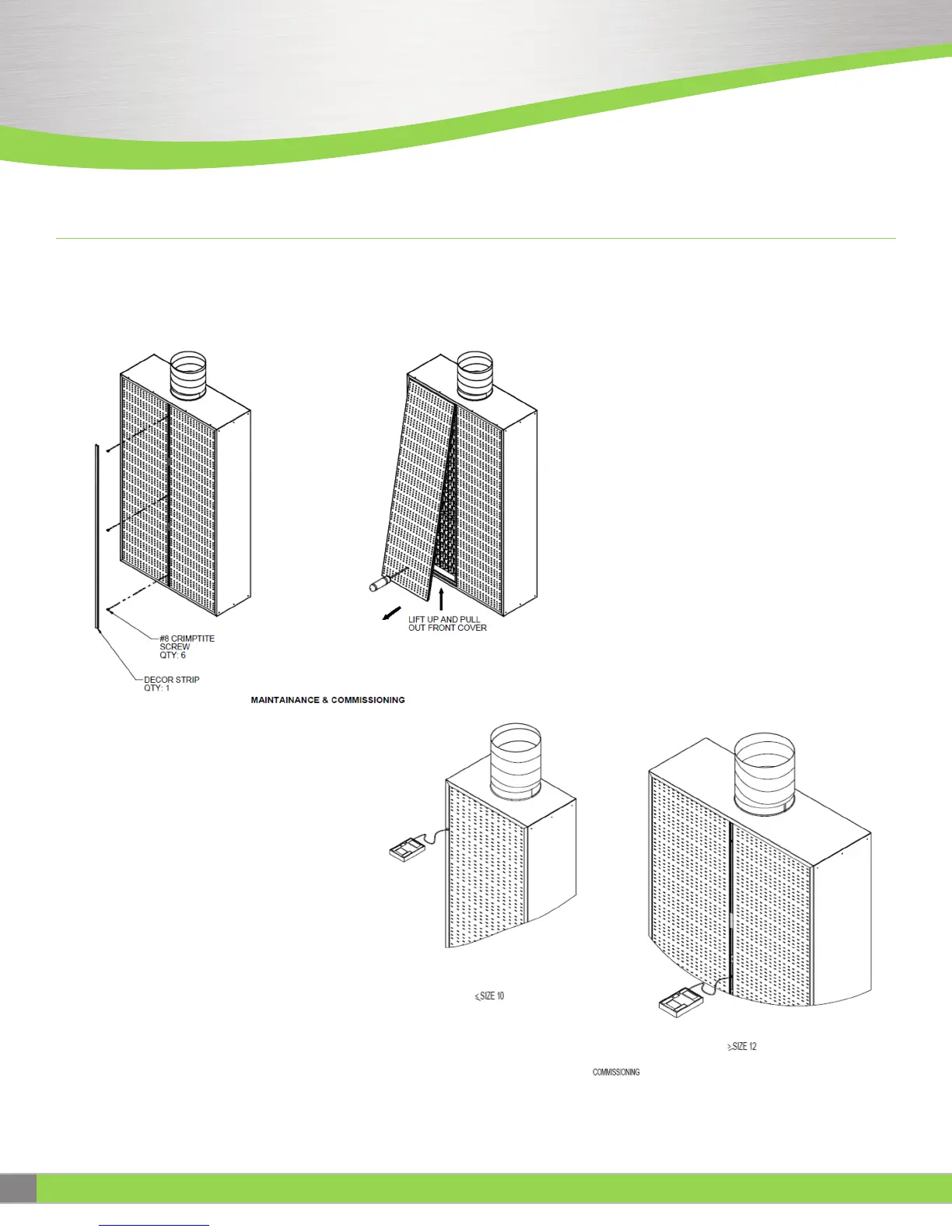

Figure 5
Figure 6
