DVCP Duct Cover Installation (continued)
STEP 3
Install the duct onto the unit. Install the second duct cover top to the duct
cover support assembly enclosing the duct. Assemble both the duct cover
top together using pop rivets.
STEP 4
Assemble all four duct cover support assemblies to the duct cover bottom
using pop rivets.

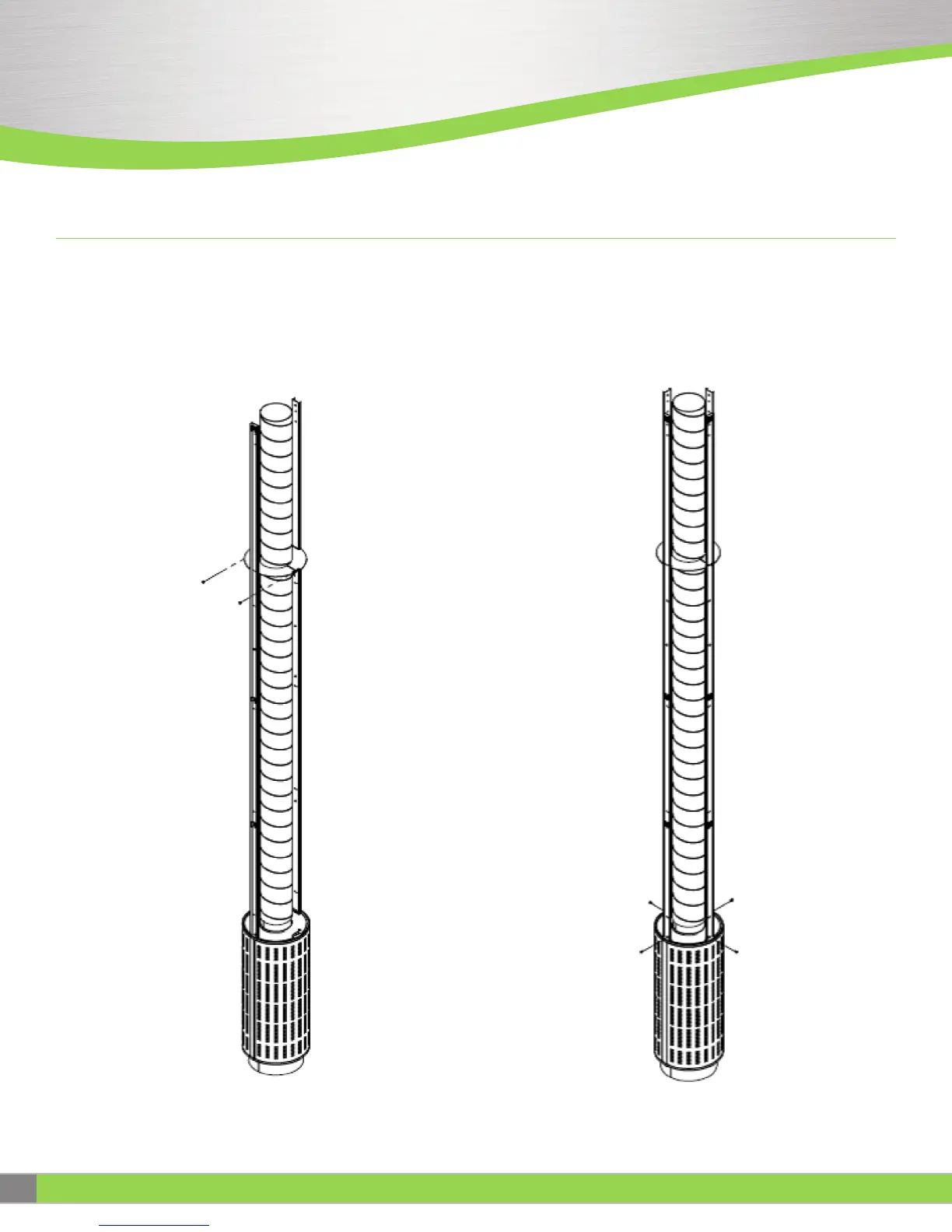

Figure 3 Figure 4
