7
Installation Manual-DISPLACEMENT VENTILATION DIFFUSERS
Redefine your comfort zone. ™ | www.titus-hvac.com

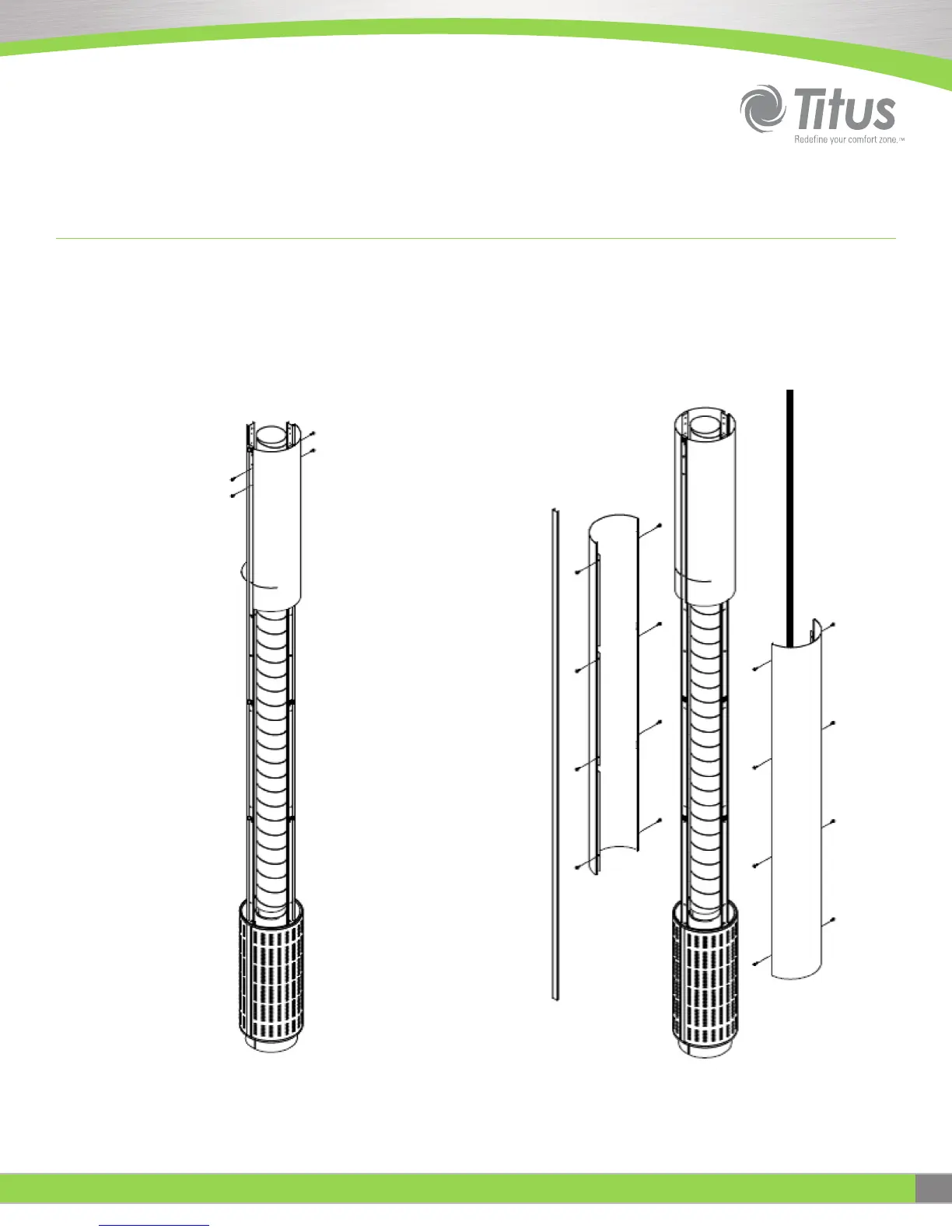

DVCP Duct Cover Installation (continued)
STEP 5
Align the top edge of the duct cover support assembly with the top face
of the extension and install the extension assembly onto the duct cover
support assembly using screws. (Décor strip of the unit should align with
the décor strip of the duct cover assembly)
STEP 6
Place the duct cover on the top of the unit and assemble it to the duct
cover support assembly using screws. Snap the décor strips into the
springs of the duct cover support assemblies.
Figure 5 Figure 6
