13
• Connect GND of the Adapterboard to the local earth.
• Connect the shield of the ground cable to the GND connection of the Adapterboard

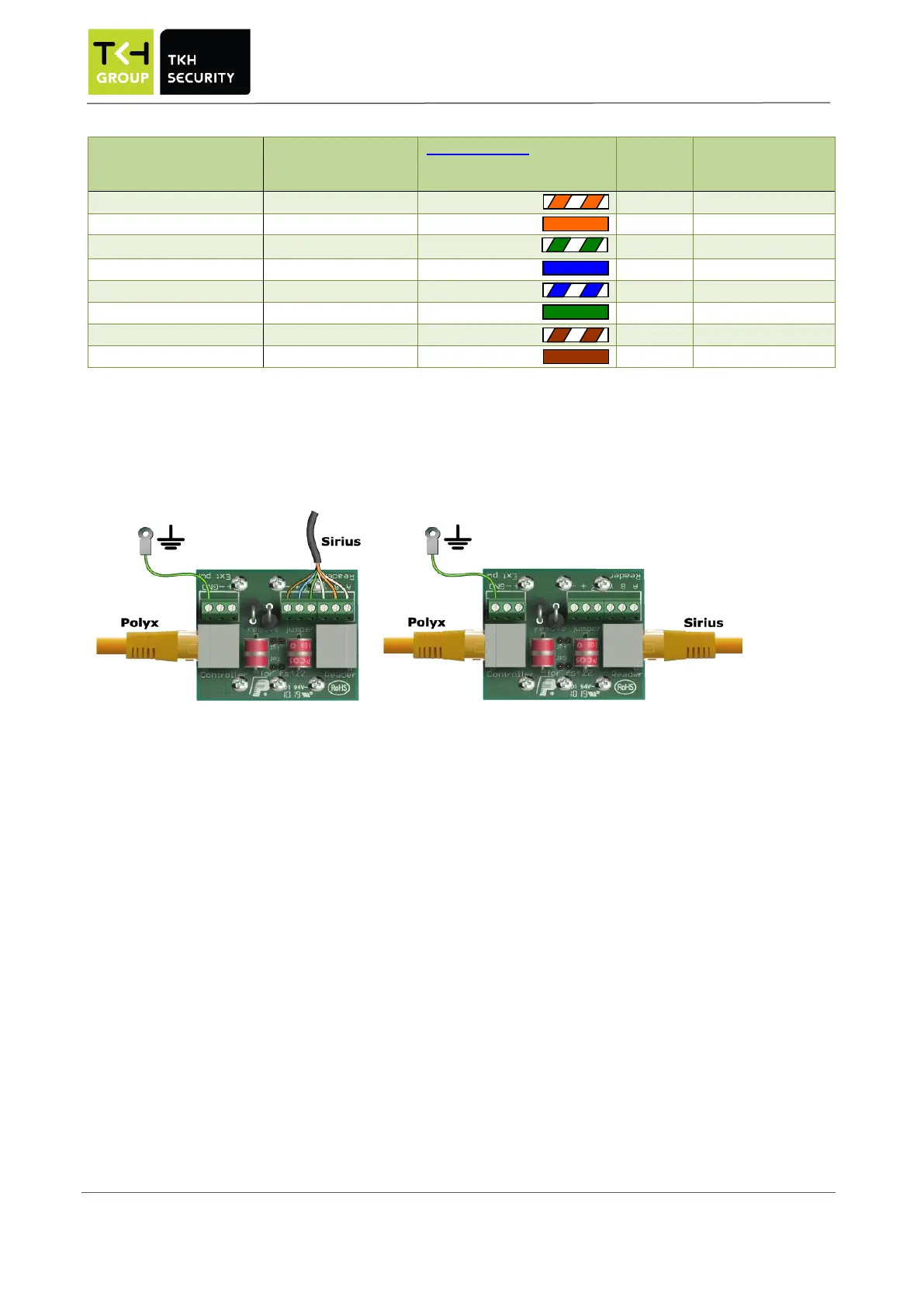

possible connection of the Sirius iX30 on the Adapterboard.
Do not place any jumpers! For more information. See the Adapterboard-IM manual.
Or screw connection
on adapterboard
Or RJ45
connection on
adapterboard
TIA/EIA-568-B
Cable color
Signal
Sirius iX30 pin
A (or1)
1
White/orange
B
B
B (or 2)
2
Orange
A
A
Y (or 3)
3
White/green
B
B
+
4
Blue
VCC
5-16VDC
5
White/blue
Z (or6)
6
Green
A
A
7
White/brown
-
8
Brown
GND
GND
