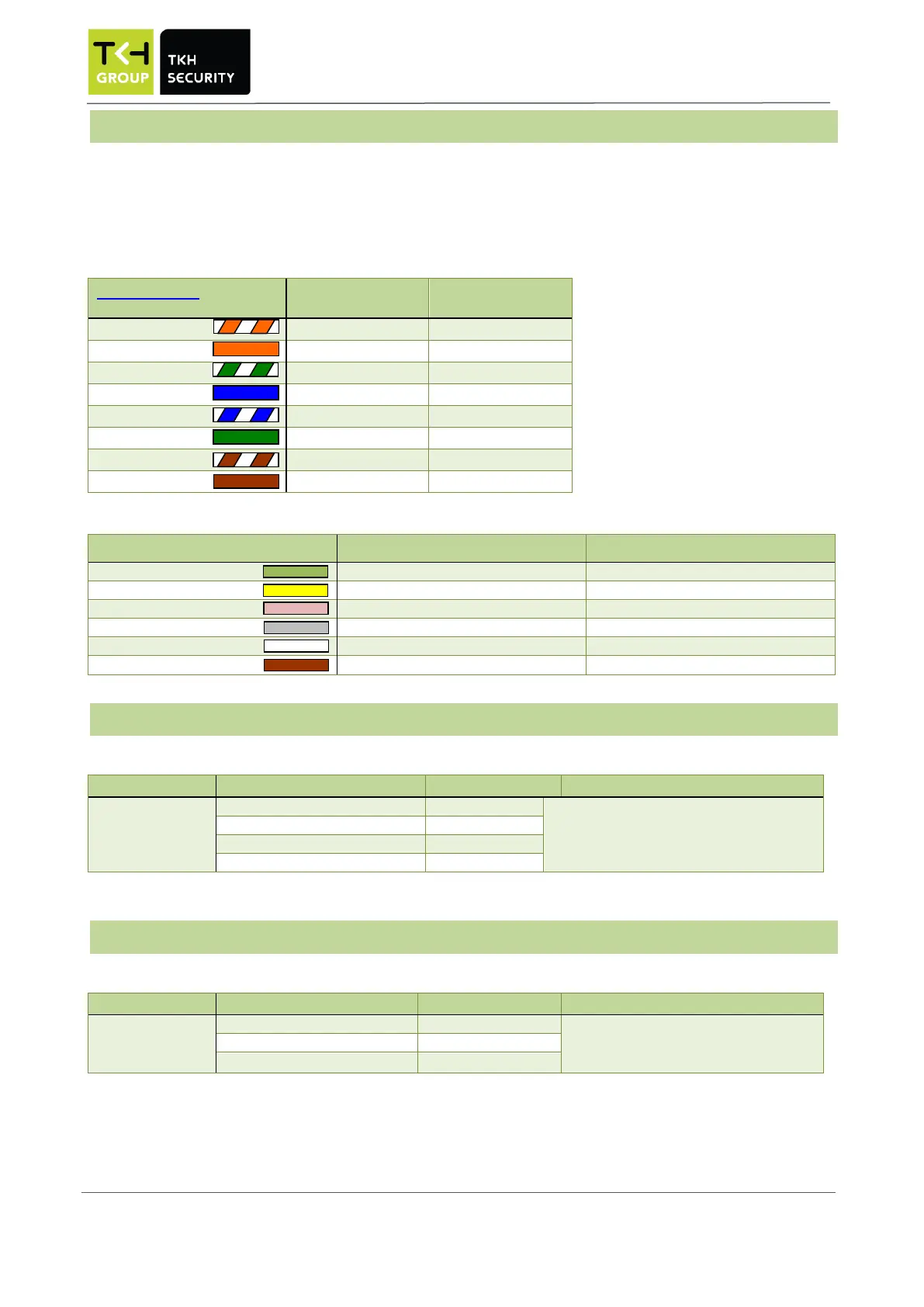

4.4.3 Clock/data- Wiegand
Recommended cable type between the Orion or Orbit and Sirius iX30 card reader:
• CKY 3x2x0,14mm²
• CKY 4x2x0,14mm²
• CAT5 UTP four twisted pairs of 24AWG copper conductors
• CAT6 UTP four twisted pairs of 24AWG copper conductors
Cable color
Connection door controller
Sirius iX30 pin
Green
Data/D0
D0
Yellow
Clock/D1
D1
Pink
VCC (+)
5-16VDC
Grey
LED
LED
White
GND
GND
Brown
GND
GND
4.4.4 Cable lengths if connected directly to Orion
Cable
Communication protocol
Cable length(m)
Communication between
UTP ≥Cat5e
RS485 Powered from Orion
120
Orion and Sirius iX30 card reader
RS485 External powered
600
Wiegand
120
Clock/Data
50
4.4.5 Cable lengths generic
Cable
Communication protocol
Cable length (m)
Communication between
RS485*
600
Controller and Sirius iX30 card
reader
Wiegand
120
Clock/Data
50
*Please be sure that the cable used for RS485, is suitable for the RS485 protocol.
Please take into account that the power supply at the reader must be between 5-16 VDC.
TIA/EIA-568-B
Cable color
Connection door
controller
Sirius iX30 pin
White/orange
Data/D0
D0
Orange
TAMP
TAMP
White/green
Clock/D1
D1
Blue
VCC (+)
5-16VDC
White/blue
LED
LED
Green
BUZZ
BUZZ
White/brown
GND
GND
Brown
GND
GND
