General
The Sirius iX30 card reader is a versatile card reader which support multiple card technologies and
communication protocols used in access control solutions. In addition, the Sirius iX30 is able to support
different technologies simultaneously.
2.1 Wiring
This document assumes standard T-568-B color coding of the cables.

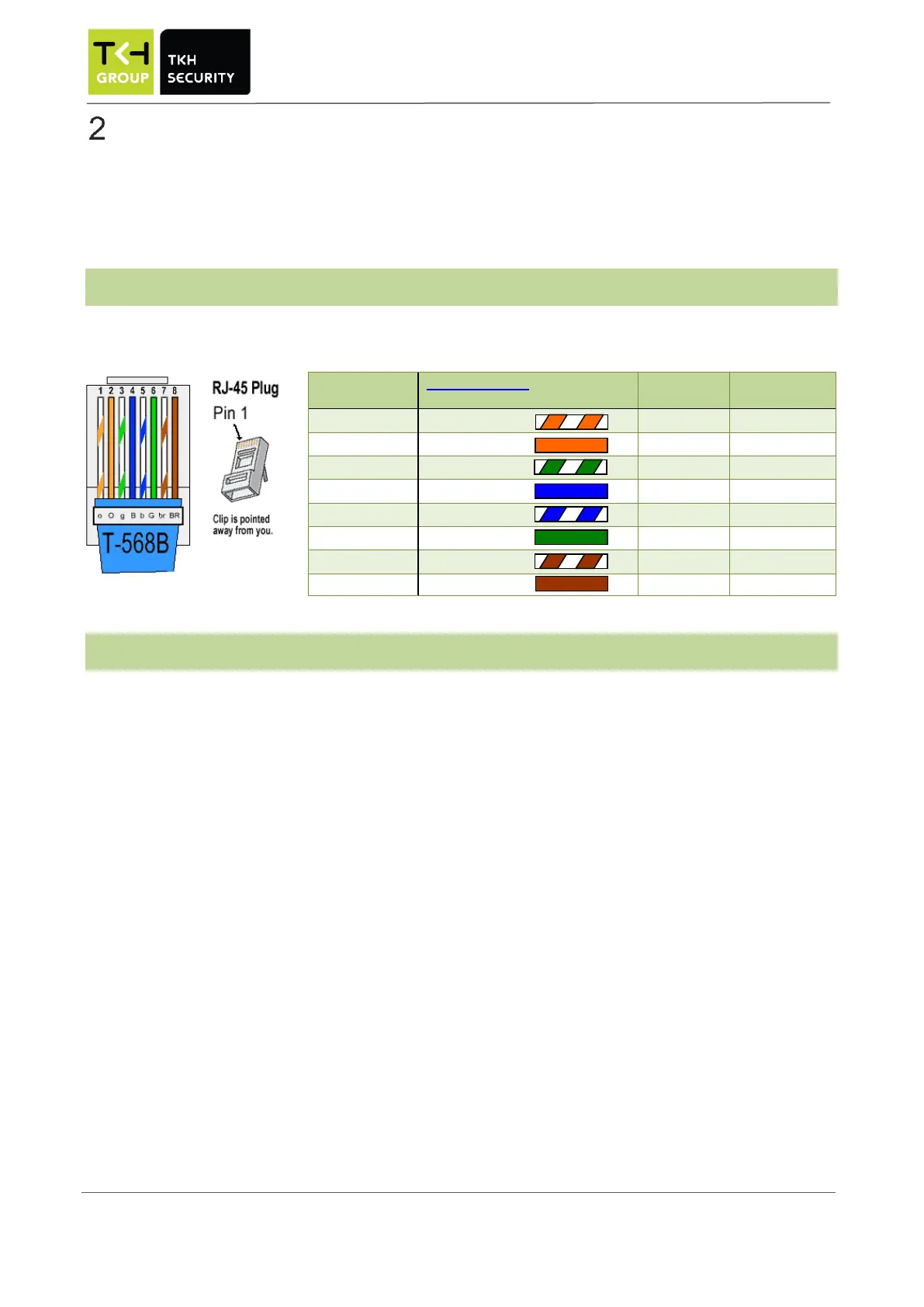

Picture T-568B
2.2 Tools and equipment
When installing the Sirius iX30, the following tools or materials may be needed.
• T-568B, or another cable which meets the requirements as specified in chapter 4.4:
• Wire side cutter
• Electric wire ferrule
• Crimping tool
• Flathead screwdriver
• Drilling machine (if mounted on a surface)
• 2x 6MM plug
• 2x with the plug corresponding screw (screwhead must be 6mm at least).
Pin number
RJ-45 Plug
TIA/EIA-568-B
Cable color
Signal ID
T568B Pair
1
White/orange
DA+
2
2
Orange
DA-
2
3
White/green
DB+
3
4
Blue
DC+
1
5
White/blue
DC-
1
6
Green
DB+
3
7
White/brown
DD+
4
8
Brown
DD-
4
