Items Needed:
• H.265 Network PTZ Camera
• Ethernet Cable
• Power Cable (necessary if PSE is not available)
• Alarm/Audio Cable (optional)
• Pendant Mount (optional accessory)
• Screws and Screw Anchors for fixing the Pendant Mount
Tools Needed:
• Tool for drilling
• Tool for screwing
• PTFE Thread Seal Tape
Follow the steps to install the grommet to PTZ.
STEP 1
Make a cable entry hole on the wall to recess the cables. Run the Ethernet cable through the
pendant mount. If there are other cables, such as power cable, alarm I/O cable or audio I/O cable,
also insert them through the pendant mount.

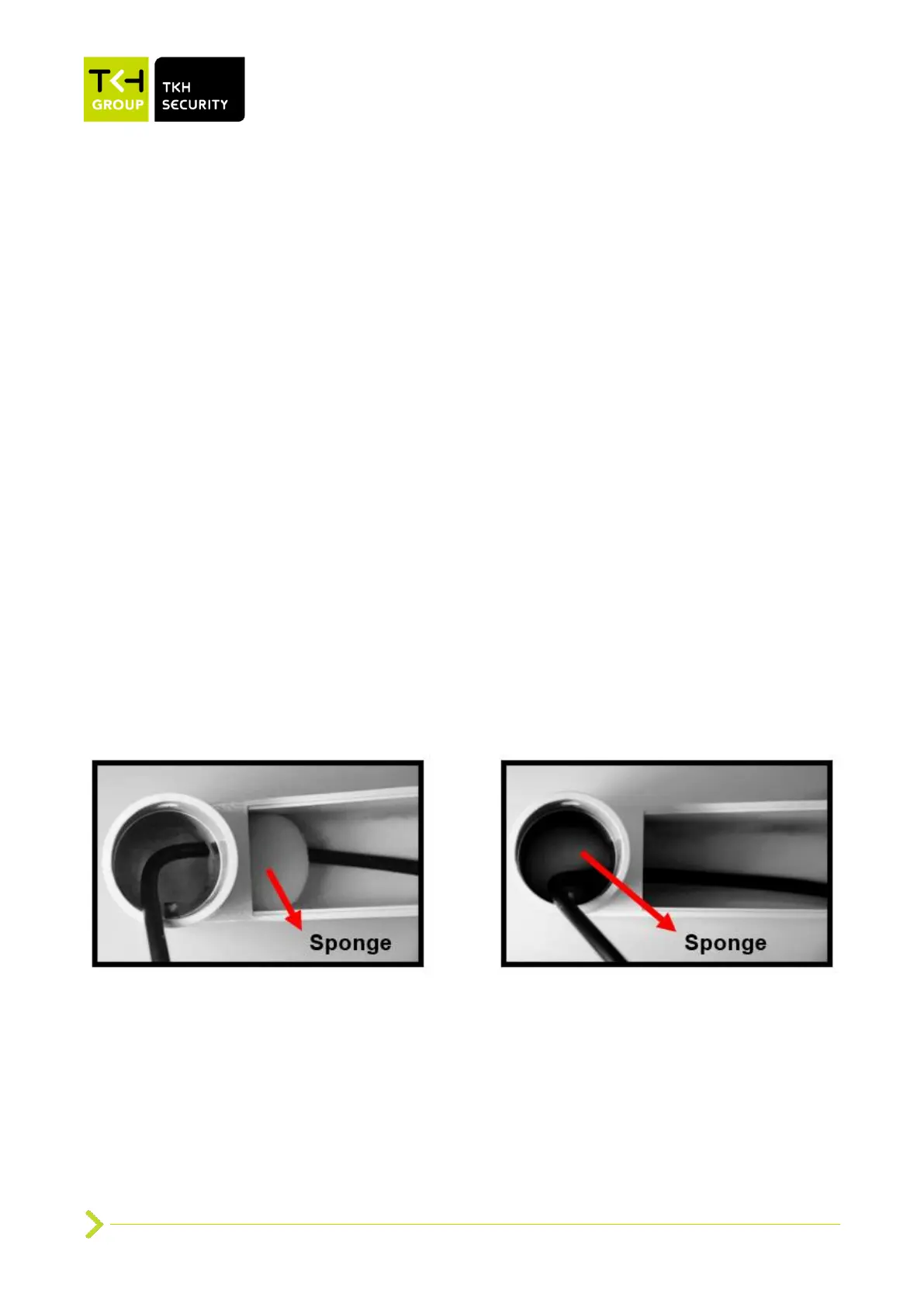

NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the
pendant mount. The sponge can be placed in two ways as shown in the illustrations below.
STEP 2
Align the screw holes on the pendant mount with the drilled holes and fix the pendant mount to the
wall with four screws.
